- Portwell

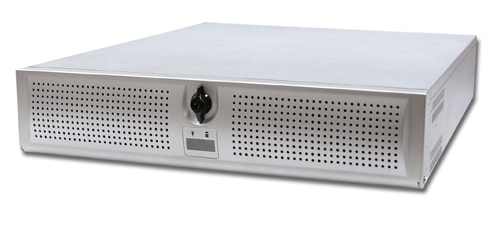

AREMO-2173P
19” 2U industrial rack-mount chassis for PICMG backplane
- One slim CD-ROM and two hot-swap 3.5” HDD (SATA) Drive bays
- Two USB ports on the front panel
- Two 7cm ball-bearing cooling fans for better ventilation
- One power On/Off switch with protection cap and one touch free reset for secure access
Platform Overview
About this series
| AREMO-2173P 19” 2U rack-mount chassis with vertical 6-slot (4x PCI) PICMG backplane |
| AREMO-2173P/B 19” 2U black rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.0 backplane |
| AREMO-2173PA 19” 2U rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.3 backplane |
| AREMO-2173PA/B 19” 2U black rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.3 backplane |
| Backplane |
|
| Power Supply |
|
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel |
|---|---|
| Drive Bay | External:1x Slim type CD-ROM,2x Hot-swap 3.5” HDD |
| Air Filter | One external replaceable air filter |
| Cooling Fan | Two 7cm ball-bearing fans |
| Indicator | 1x HDD+1x Power On/Off |
| Switch | 1x Power On/Off (with a protection cap),1x System reset |
| Speaker | One 8Ω speaker |
| Connector | 2x USB ports equipped on the front panel |
| Standard Color | Silver, Black |
| Backplane | PBPE-06V464: 6-slot [PCIe (1), PCI (0), PCI-X (4)] PCIMG 1.3 backplane PBPE-06V3: 6-slot [PCIe (2), PCI (3), PCI-X (0)] PCIMG 1.3 backplane PBPE-06V: 6-slot [PCIe (5)] PCIMG 1.3 backplane PBPE-06V4: 6-slot [PCI (4), PCI-X (0)] PCIMG 1.0 backplane |
| Dimension | 482(W) x 429.2(D) x 88.6(H) mm; 19”(W) x 16.9”(D) x 3.5”(H) |
| Weight | Net: 11.0 kg (23.1 lb); Gross: 12.0 kg (25.3 lb) |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AREMO-2173P | 19” 2U rack-mount chassis with vertical 6-slot (4x PCI) PICMG backplane | add to list – AREMO-2173P | |
| AREMO-2173P/B | 19” 2U black rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.0 backplane | add to list – AREMO-2173P/B | |
| AREMO-2173PA | 19” 2U rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.3 backplane | add to list – AREMO-2173PA | |
| AREMO-2173PA/B | 19” 2U black rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.3 backplane | add to list – AREMO-2173PA/B |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| AREMO-2173P | Datasheet | 1.54 MB | download – AREMO-2173P | Datasheet |
