- Portwell

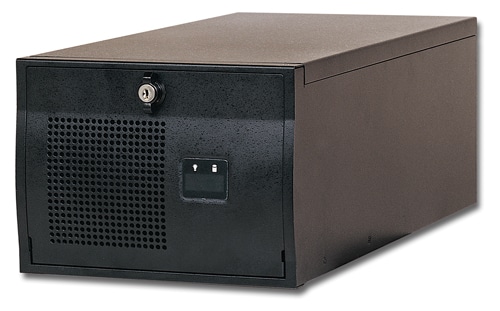

AREMO-6182
6-slot full-size industrial node chassis (Shoe-box)
- One external 5.25” and one 3.5” internal HDD drive bay
- One replaceable air filter for easy cleaning
- Can be vertically or horizontally mounted, easy to fit into space limited environment
- One 12cm ball-bearing cooling fan for better ventilation
- The fan filter panel can be installed in different directions
- Two adjustable positions for hold-down card retainers provide better protection from vibration
- Wall-mounting bracket equipped
- Both 6-slot PICMG 1.0 or 1.3 backplane applicable; easy to change different backplanes
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| TYPE | Node |
|---|---|
| SLOT | 6 |
| ORDERING GUIDE | AREMO-6182/B BACKPLANE |
| BP MODEL | PBPE-06A364 PBPE-06P4 PBPE-06P3 PBPE-06P2 PBPE-05A364 PBP-06P464 PBP-06P4 PBP-06P3 PBP-06I |
| PICMG | 1.3 1.3 1.3 1.3 1.3 1.0 1.0 1.0 1.0 |
| PCIe | 2 1 2 3 1 |
| PCI/PCI-X | 1/2 4/0 3/0 2/0 1/2 4/0 4/0 3/0 |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AREMO-6182/B | 6-slot full-size industrial black node chassis adapted with 6-slot PICMG backplane | add to list – AREMO-6182/B |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| AREMO-6182 | Datasheet | 1.24 MB | download – AREMO-6182 | Datasheet |
