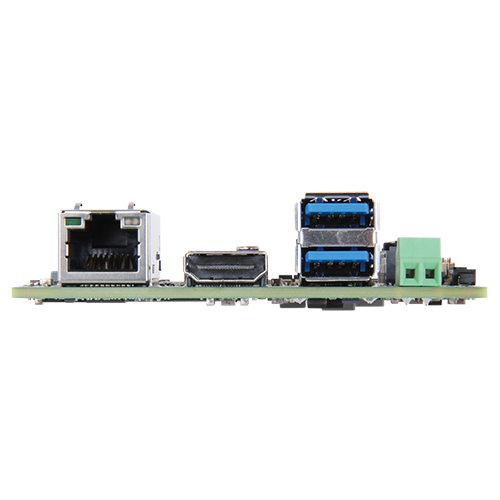

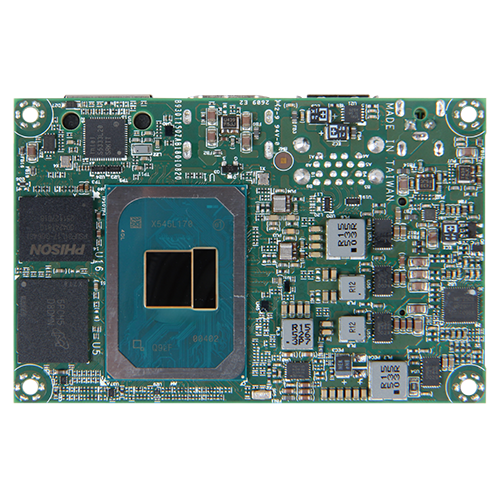

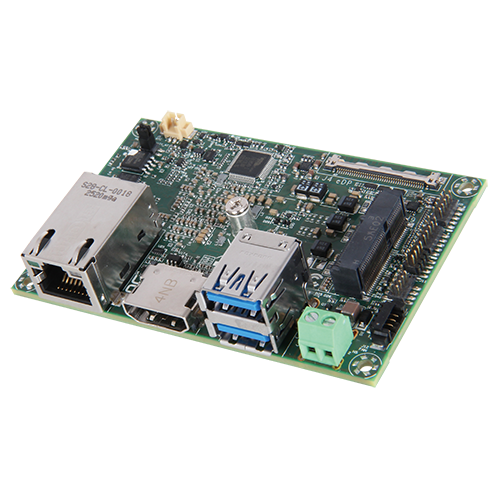

FEMTO-8010
Intel® Wildcat Lake; LPDDR5, UFS 3.1; dual HDMI®/eDP; 2.5GbE; USB 3.2, USB 2.0; M.2 E-Key; TPM, GPIO, I2C/SMBus, Smart FAN
- Intel ® Wildcat Lake
- Intel ® Core™ 3 Processors 304/ Core™ 5 Processors 315/ Core™ 7 Processors 350
- LPDDR5 + UFS 3.1 onboard design
- HDMI ® + eDP dual display 2.5GbE LAN, 2x USB 3.2 M.2 E-Key expansion
- TPM, USB2.0, GPIO, I2C/SMBus, Front Panel, Smart FAN
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Femto-ITX |
|---|---|
| Processor | Intel ® Core™ 3 Processors 304 Intel ® Core™ 5 Processors 315 Intel ® Core™ 7 Processors 350 |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 16GB LPDDR5/x 6800 MT/s on board (default 8GB) |
| Storage | 1 x UFS3.1 up to 256GB (default 64GB) |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® Xe 3 Graphics |
| Ethernet | 1 x Intel ® I226LM with 2.5 GbE LAN 10/100/1000/2500 Mbps |
| USB | 2 x USB 3.2 Gen2 Type A |
| Display | 1 x HDMI ® 2.1 TMDS, up to3840 x 2160@60Hz |
| USB | 2 x USB 2.0 Pin Header |
| M.2 | 1 x M.2 E Key 2230 support |
| Security | TPM 2.0 ( On Board IC ) |
| Display | 1 x eDP 1.43840 x 2160@60Hz |
| GPIO | 1 x 8-bit Digital I/Os |
| Others | 1 x I2C1 x SMBus |
| Dimension | 84 x 55 mm (3.31" x 2.17") |
| Power Supply | 2-pin Terminal Block(colay DC Jack) 12V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC UKCA |
| OS | Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04 |
| Portwell Special Feature | PET |
