Industrial Panel PCs

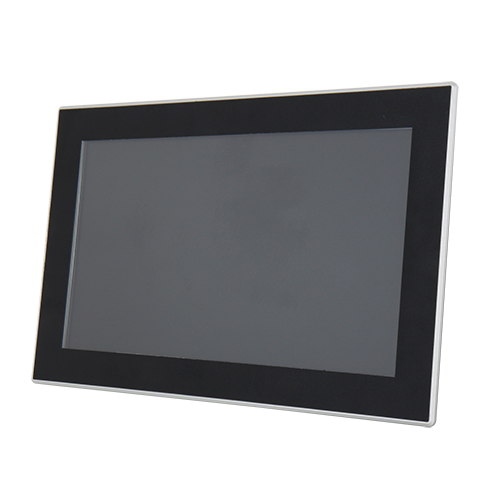

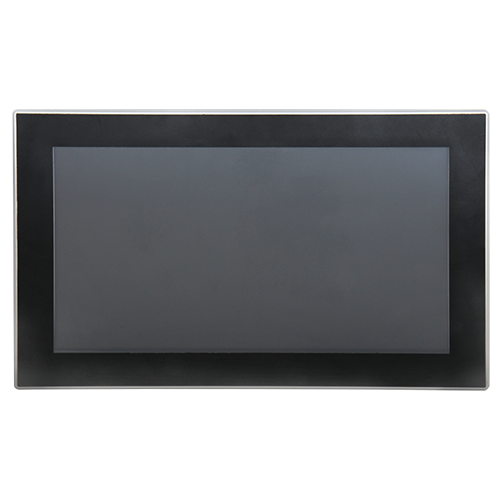

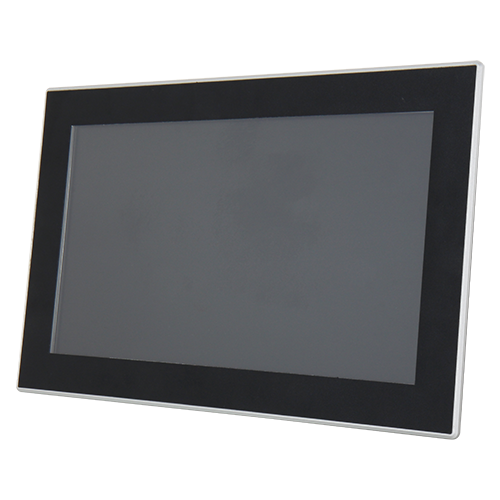

FUDA4-S1613
- 15.6″ Resistive Touch PPC with Intel Atom ® Amston Lake x7433RE SoC (4C, 9W, 1.5 GHz)

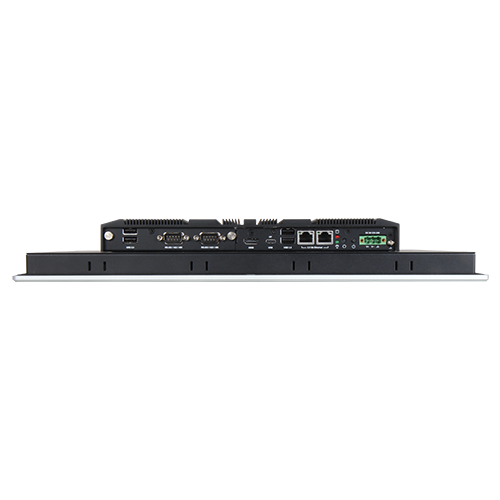

- 2x USB3.2, 1x USB type C with DP, 1x HDMI ® , 1x LVDS
- DDR5 4800 SO-DIMM up to 32GB
- Onboard eMMC, M.2 2242/2280 M key socket, M.2 2230 E key socket
- Various modularization I/O extension options
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| LCD Size | 15.6" |
|---|---|
| Resolution(WxH) | WXSGA+ 1366×768 16:9 |
| Brightness(cd/m²) | 400 |
| Contrast Ratio | 800:1 |
| Backlight | LED type |
| Touch Screen | 5-Wire Resistive Single Touch |
| Processor | Intel Atom ® x7433RE Processor |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 32GB DDR5 4800 MT/s on one SODIMM |
| Storage | 1 x M.2 M Key Slot,1 x eMMC on board |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® UHD Graphics |
| LVDS | Single/Dual Channel 24-bit |
| Ethernet | 2 x 2.5 Gbe LAN w/ Intel ® WGI226IT |
| USB | 2 x USB 3.2 Gen2 Type A1 x Type C with DP Alt mode |
| Display | 1 x HDMI ® 2.0b |
| Other | Power Button, Reset Button, Power LED, Storage LED,4x Antenna holes |
| Expansion | Option 12x RS-232/422/485 Option 22x RS-232/422/485,1x 2ch DIO Option 32x RS-232/422/485,1x RS-232 Option 42x RS-232/422/485,2x USB 2.0 |
| M.2 | 1 x M Key w/ SATA III1 x E Key w/ PCIe Gen3 x1 |
| Security | TPM 2.0 |
| Dimension(WxDxH) | 415 x 56.6 x 265 mm |
| Weight | 4.8 kg |
| Mounting | Panel Mount, VESA Mount (75*75), VESA Mount (100*100), Desktop |
| Power Supply | Terminal Block 12 ~ 24V |
| Vibration | 1G 10 ~ 500Hz with eMMC/SSD (IEC 60068-2-64) |
| Shock | 15G 11m sec with SSD (IEC 60068-2-27) |
| IP Protection | Front Bezel IP65 ,Whole enclosure: IP20 |
| Portwell Special Feature | PET |
| Operating Temperature | -25 ~ 65 °C (-13.0 ~ 149.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Certification | CE/FCC/UKCA Class A, LVD, EN-61000-2, EN-61000-4 |
| OS | Windows 10/11, Linux |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AL6-3324 | FUDA4-S1613 ATO | (R). FUDA4-S1613-0000-00.15.6" Intel ® Amston Lake X7433RE 9W Resistive Touch Panel PC with Black Aluminum Bezel and Black Chassis | add to list – FUDA4-S1613 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| FUDA4-S1613 | Datasheet | 909.10 KB | download – FUDA4-S1613 | Datasheet |
| FUDA4-S1X13 | User Manual | 5.61 MB | download – FUDA4-S1X13 | User Manual |
