- Portwell

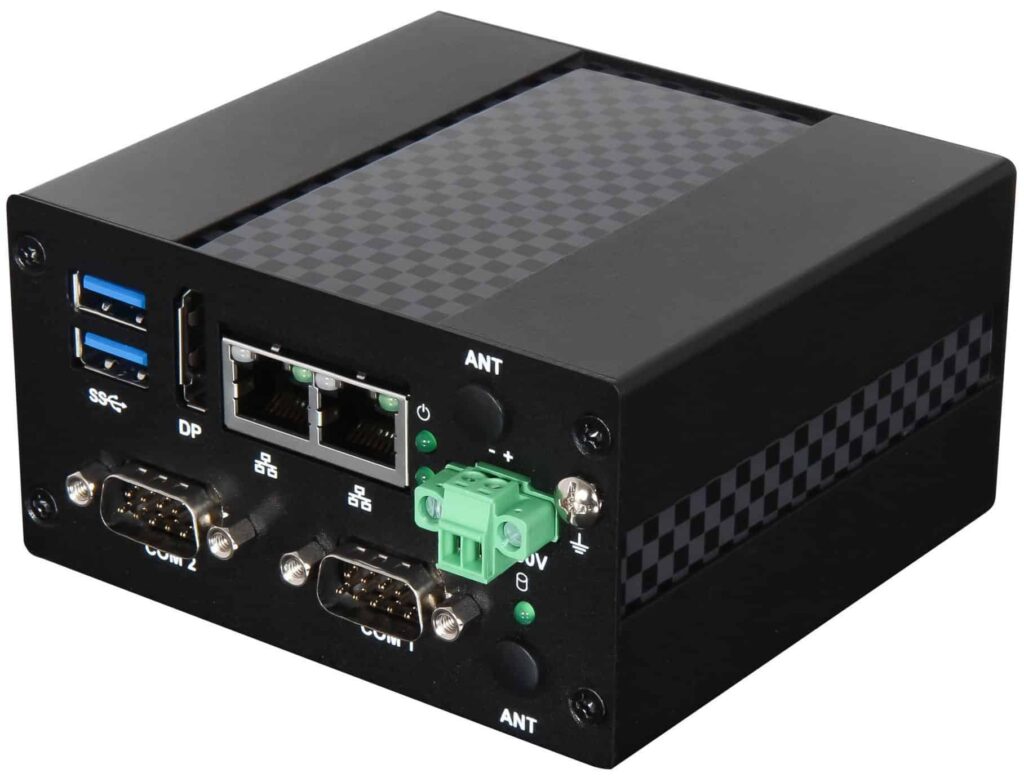

LYNX-612E
IoT Gateway in industrial automation environment
- Intel ® Celeron ® Processor
- Support 2x LAN and 1x M.2 for wireless module
- Extended I/O interface of 2x Isolation LAN and 1x RS232/422/485
- Heavy Industry EMC standard
- Support customized appearance (Optional)
- Support extended temperature (Optional)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Celeron ® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
|---|---|
| Memory | 4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional) |
| Storage | 32GB onboard eMMC 5.0 flash; up to 256GB (Optional) |
| Power Input | 12-30VDC (+/- 20%) |
| Operating System | Windows ® 10 IoT Enterprise (64bit) Yocto v2.7 |
| Expansion | 1x M.2 Key E 2230 for wireless module |
| Other | TPM 2.0 onboard |
| Power Connector | 1x 2-Pin Terminal Block |
| Ethernet | 2x 10/100/1000 GbE (Intel ® I210) |
| USB | 2x USB 3.0 |
| Display | 1x DP v1.44096 x 2160 @ 60Hz |
| COM/ Console | 1x RS-2321x RS-232/422/485 (BIOS Configurable) |
| USB | N/A |
| Expansion | 1x M.2 Key B 2242 for storage1x full-size Mini-PCIe |
| Storage Temperature | -40 °C ~ 85 °C |
| Operating Temperature | 0 °C ~ 50 °C |
| Permissible Humidity | 5-95% RH operating, non-condensing 5-95% RH storage, non-condensing |
| Vibration | 1G with DIN-rail mounting 5G with wall mounting (IEC/EN 60068-2-6) |
| Shock | 15G with DIN-rail mounting 50G with wall mounting (IEC/EN 60068-2-27) |
| Degree of Protection | IP 30 |
| Net Weight | 0.53 KG |
| Dimension | 100mm (W) x 53.5mm (H) x 92 mm (D) |
| Mounting | DIN-rail / Wall Mount |
| Power Adaptor | 2-pin terminal block connector to DC jack cable 60W AC to DC Power Adaptor via DC jack |
| Video Adaptor | DP to VGA/ DP to DVI-D |
- CE (EN 55032; EN 55024/ EN 55035)
- CE (EN 61000-6-4; EN 61000-6-2)
- FCC (Part 15 Subpart Class A)
- LVD (EN 62368-1)
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| LYNX-612E | Datasheet | 605.75 KB | download – LYNX-612E | Datasheet |
