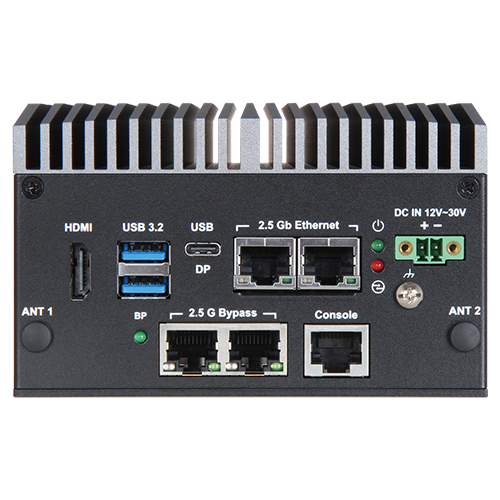

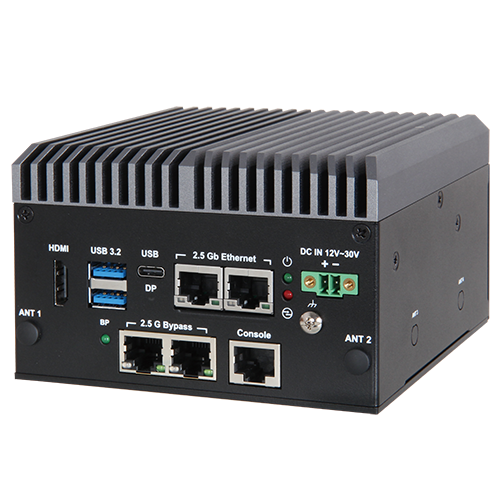

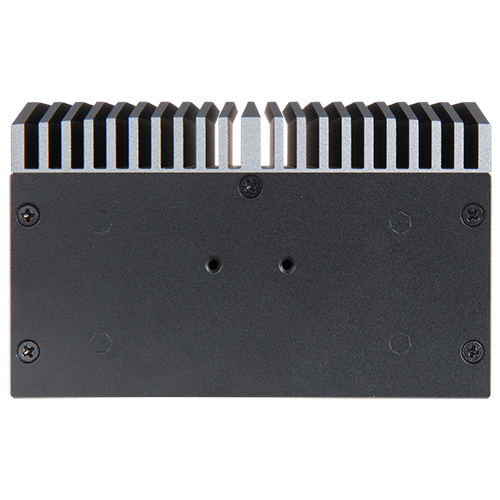

LYNX-812B
- Robust Fanless System with Intel Atom ® x7000RE Processor
- Dual 2.5GbE LAN Bypass ports, and single console port for OT security gateway, firewall, routing, power-grid cyber security
- Dual 2.5GbE LAN ports, Dual display ports (HDMI ® & USB Type C with DP ALT mode), Dual USB 3.2
- Onboard LPDDR5 4800MT/s up to 32GB, Onboard eMMC up to 256GB
- Wide DC Input 12V~30V and Operation Temperature from -40°C to 70°C
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Sys Form Factor | Proprietary |
|---|---|
| Processor | Intel Atom ® x7433RE, 4 cores, 9 W |
| Chipset | Intel ® SoC |
| BIOS | AMI uEFI BIOS |
| Memory | 2 x LPDDR5 4GB on board, support up to 32GB |
| Storage | 1 x eMMC 128G on board, support up to 256GB |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Ethernet | 2 x 2.5 GbE LAN w/ Intel ® WGI226IT |
| USB | 2 x USB 3.2 Gen2 x1 (10Gbps) Type A1 x USB 3.2 Gen2 x1 (10Gbps) Type C with DP Alt mode |
| Display | 1 x HDMI ® 1.4a1 x DP 1.4 colay with USB3.2 Gen2x1 Type-C |
| LED | Power, Storage, Bypass |
| Antenna | 6 x SMA Antenna holes for Wi-Fi |
| Ethernet | 2 x 2.5 GbE LAN w/ Intel ® WGI226IT Bypass |
| Console Port | 1 x RJ45 |
| M.2 | 1 x M Key w/ 2242 for storage1 x E Key w/ 2230 for WiFi/BT module |
| Security | TPM 2.0 |
| Dimension (WxDxH) | 120 x120 x 76 mm (4.72" x 4.72" x 2.99" ) |
| Weight | 1.5 kg |
| Mounting | DIN Rail, Wall Mount |
| Power Supply | Terminal Block 12-30V |
| Vibration | 5G 10 ~ 500Hz with SSD (IEC/EN 60068-2-6) |
| Shock | 50G 11m sec with SSD (IEC 60068-2-27) |
| IP Protection | IP40 |
| Portwell Special Feature | PET |
| Operating Temperature | -40 ~ 70 °C (-40.0 ~ 158.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC/UKCA Class A, LVD (EN 62368-1) |
| OS | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux™ |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3786 | LYNX-812B | SFF Embedded system with LSMC-M1013-X7433RE, 8G LPDDR5, 128G eMMC, TPM2.0 plus PA-P2BL2S2U1D, 2 Bypass LAN ports | add to list – LYNX-812B |
| AS5-3788 | LYNX-812B ATO | SFF Embedded system with LSMC-M1013-X7433RE, 8G LPDDR5, 128G eMMC, TPM2.0 plus PA-P2BL2S2U1D, 2 Bypass LAN ports | add to list – LYNX-812B |
