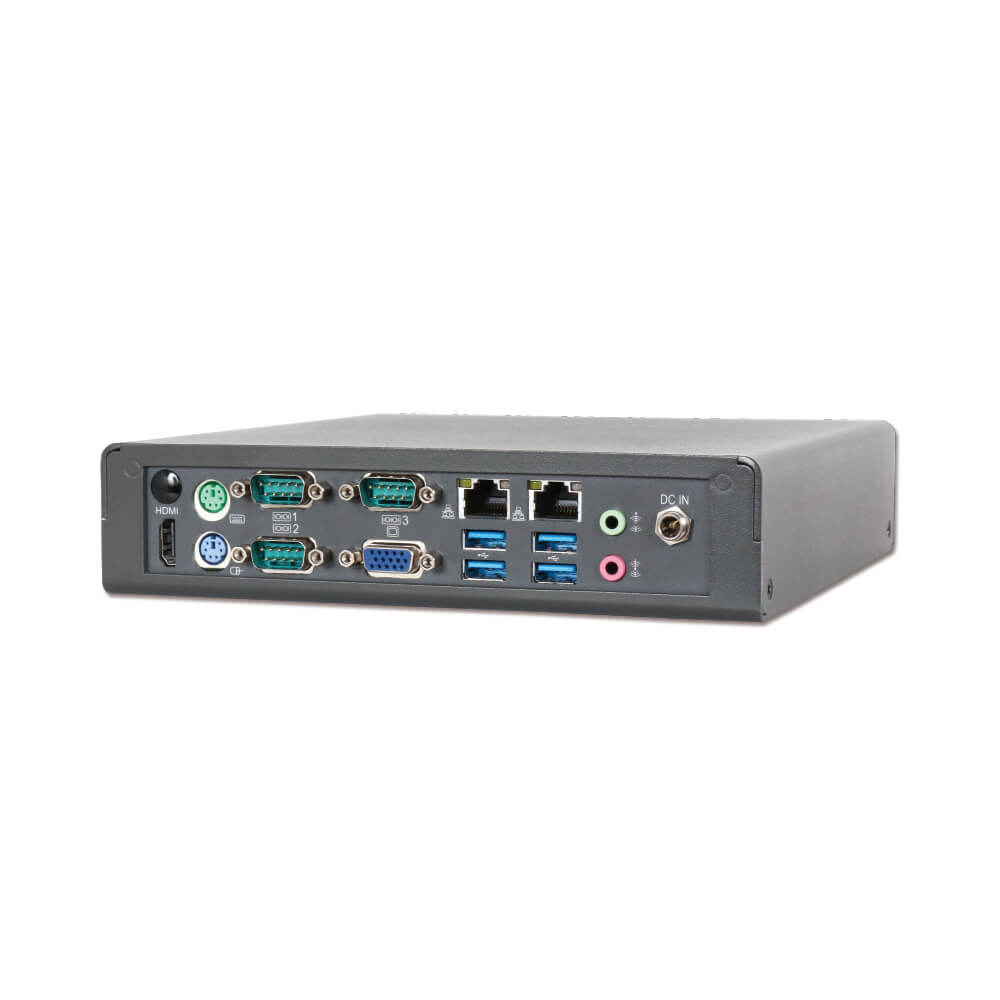

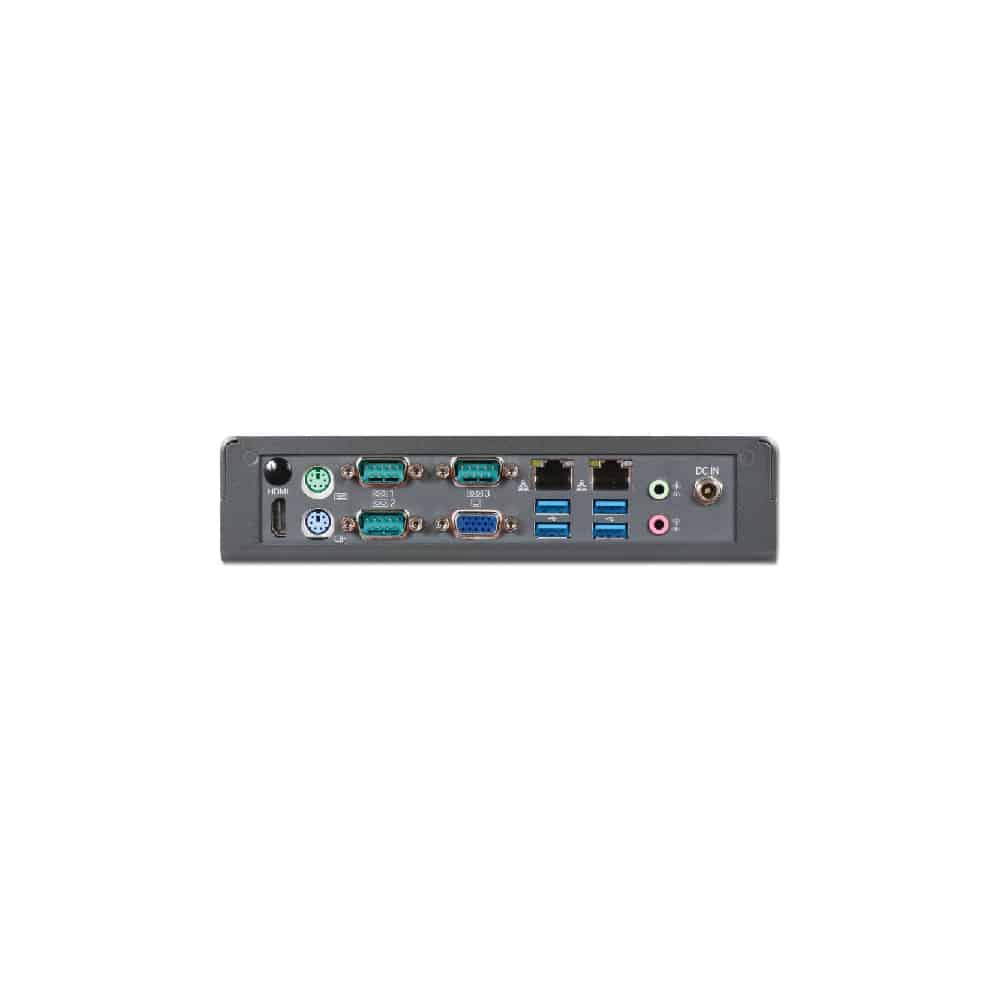

RICH-33B0-8171-S
Embedded Rugged Fan-less System with Intel® Celeron® Processor based Mini-ITX Board
- Fan-less system
- Intel ® Celeron ® Processor N3150 support
- Dual channel SO-DIMM socket up to 8G DDR3L memory
- 1x mSATA, 1x 2.5” SATA HDD/SSD (Option)
- 3x RS-232/422/485, 4x USB3.0
- Dual Gigabit Ethernet Ports
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | WADE-8171 |
|---|---|
| Form Factor | Mini-ITX |
| CPU | Intel ® Celeron ® N3000 Series Processor |
| Chipset | Intel ® SoC |
| BIOS | AMI UEFI |
| Memory | DDR3L/8GB |
| Graphic Controller | Intel ® HD Graphics Family |
| Audio Codec | ALC887 |
| Super I/O | Nuvoton NCT6106D |
| Storage | 1x 2.5" SATA HDD/SSD1x mSATA |
| Serial | 3x RS-232/422/485 |
| USB | 4x USB3.0 |
| Display | VGA, HDMI ® |
| Ethernet | Realtek RTL8111G x 2 |
| PS/2 | K/B x1, Mouse x1 |
| Audio | Line-out, Mic-in |
| D I/O | N/A |
| Expansion | 1x Full-size Mini-PCIe |
| System | DC 12V ~ 24V |
| OP Temp. | 0 °C ~ 50 °C |
| Humidity | 95%@40 °C, non-condensing |
| Vibration | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Storage Temp. | -20 °C ~ 80 °C |
| Dimension(WxDxH) | 200 x200 x 45 mm |
| Weight | 2 Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3445 | RICH-33B0-8171 | Standard. w/ COMx3 / USBx4 / Dual LAN / PS2 / Audio | add to list – RICH-33B0-8171 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RICH-33B0-8171-S | Datasheet | 1.11 MB | download – RICH-33B0-8171-S | Datasheet |
