Compact
LYNX-8110
Fanless Embedded System with Intel® Atom® x7433RE Processor, Dual 2.5GbE LAN, Wide 12–30V DC Input, and -40°C to 70°C Wide Temperature Support
- Portwell

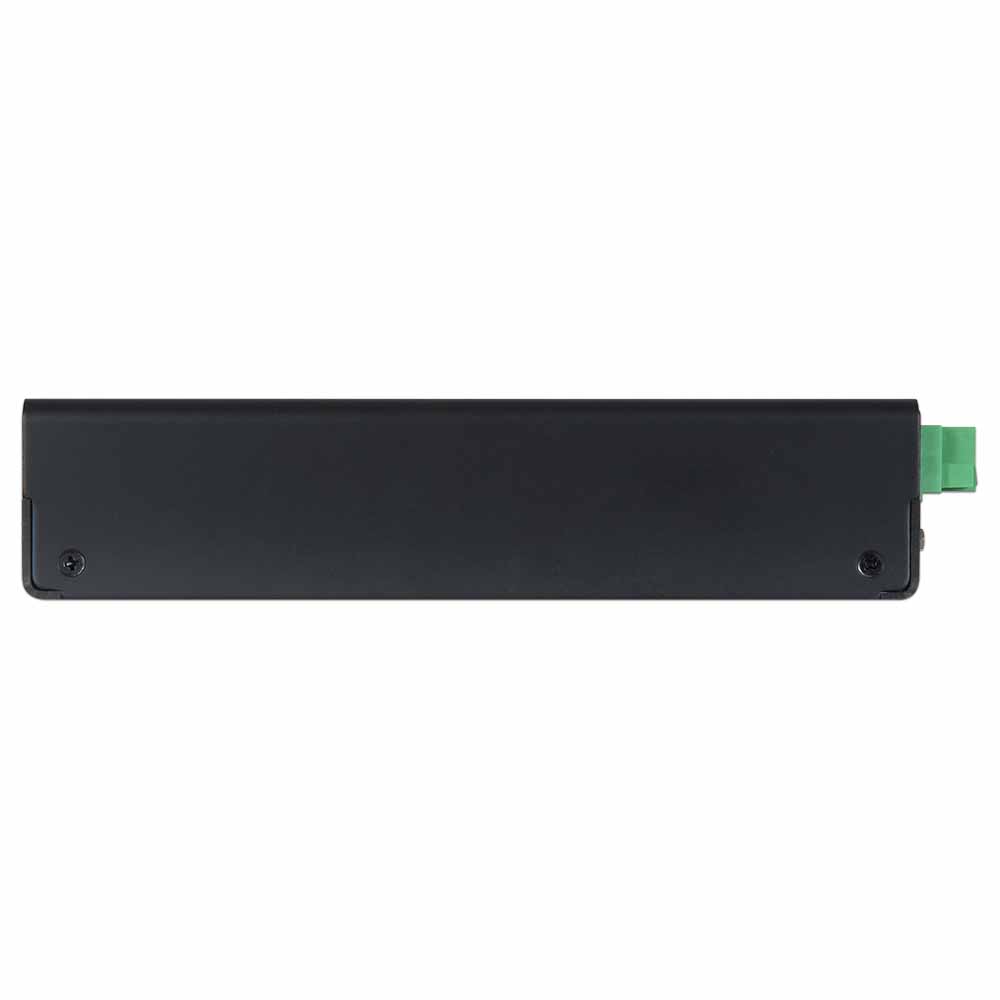

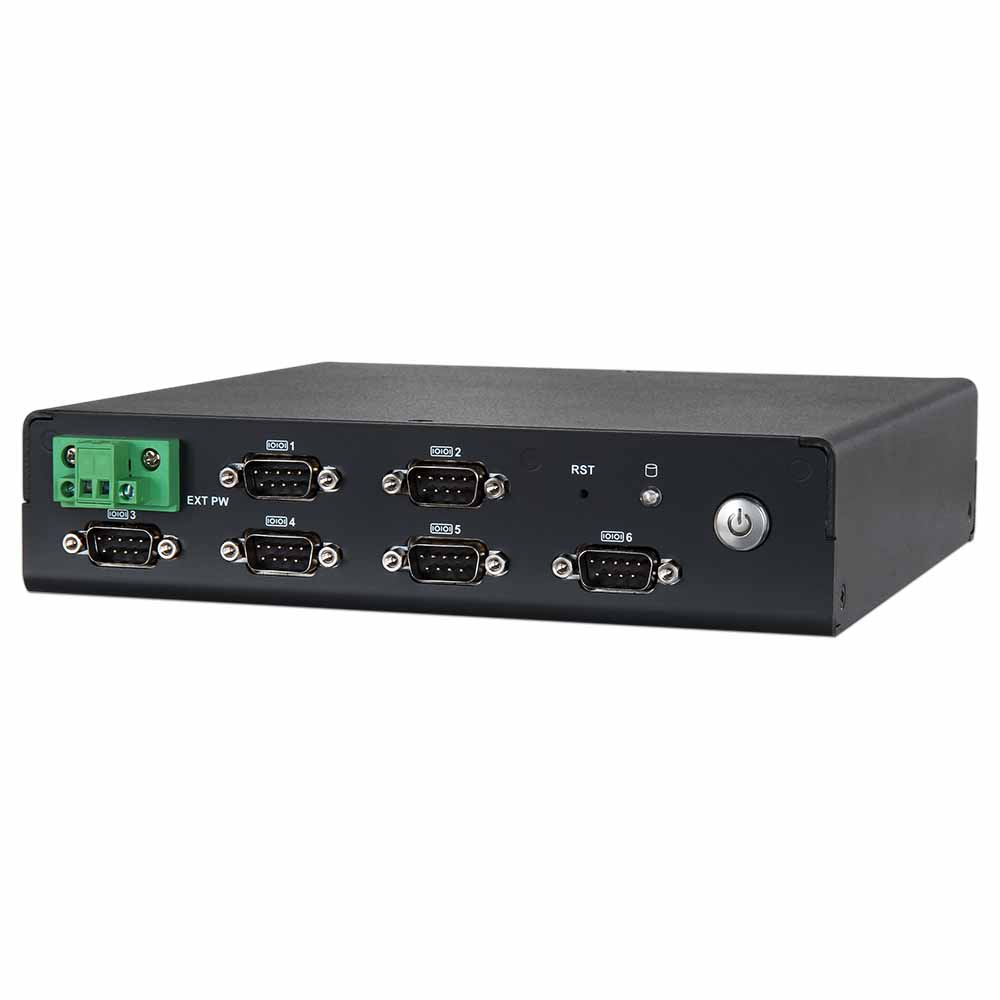

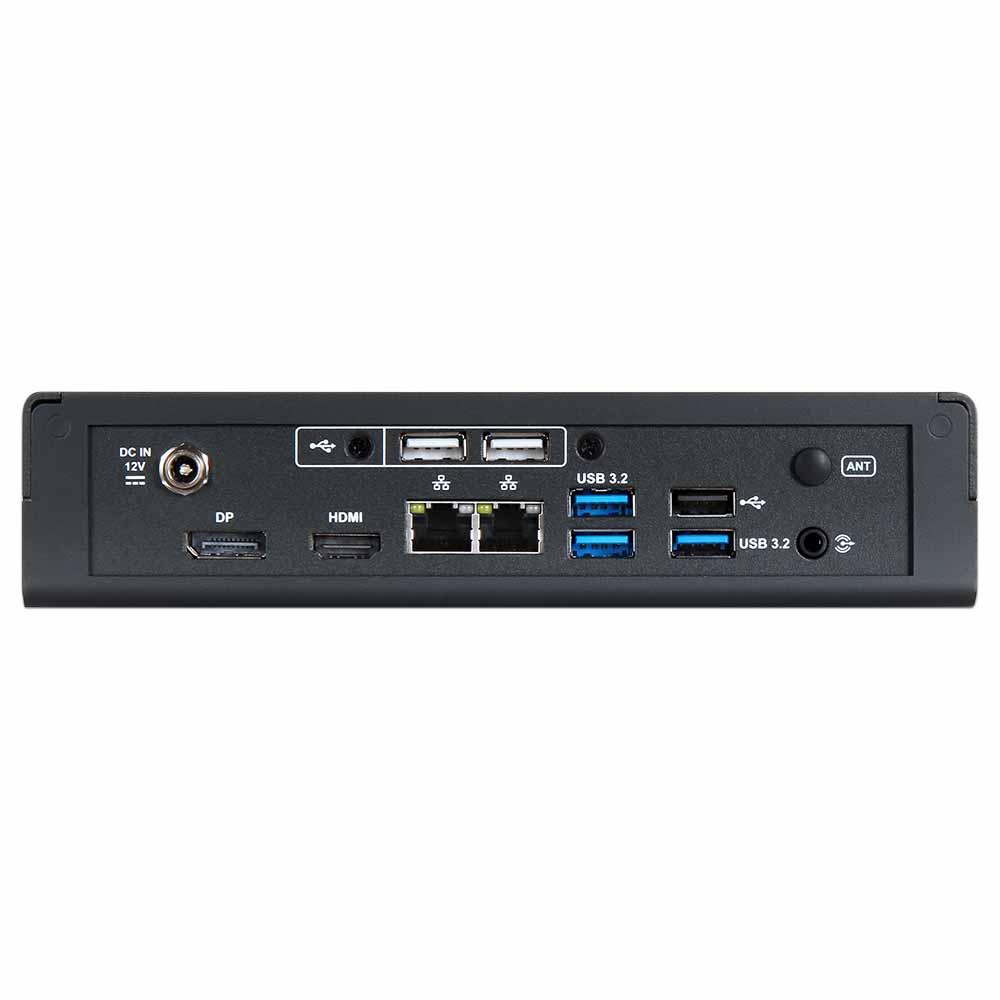

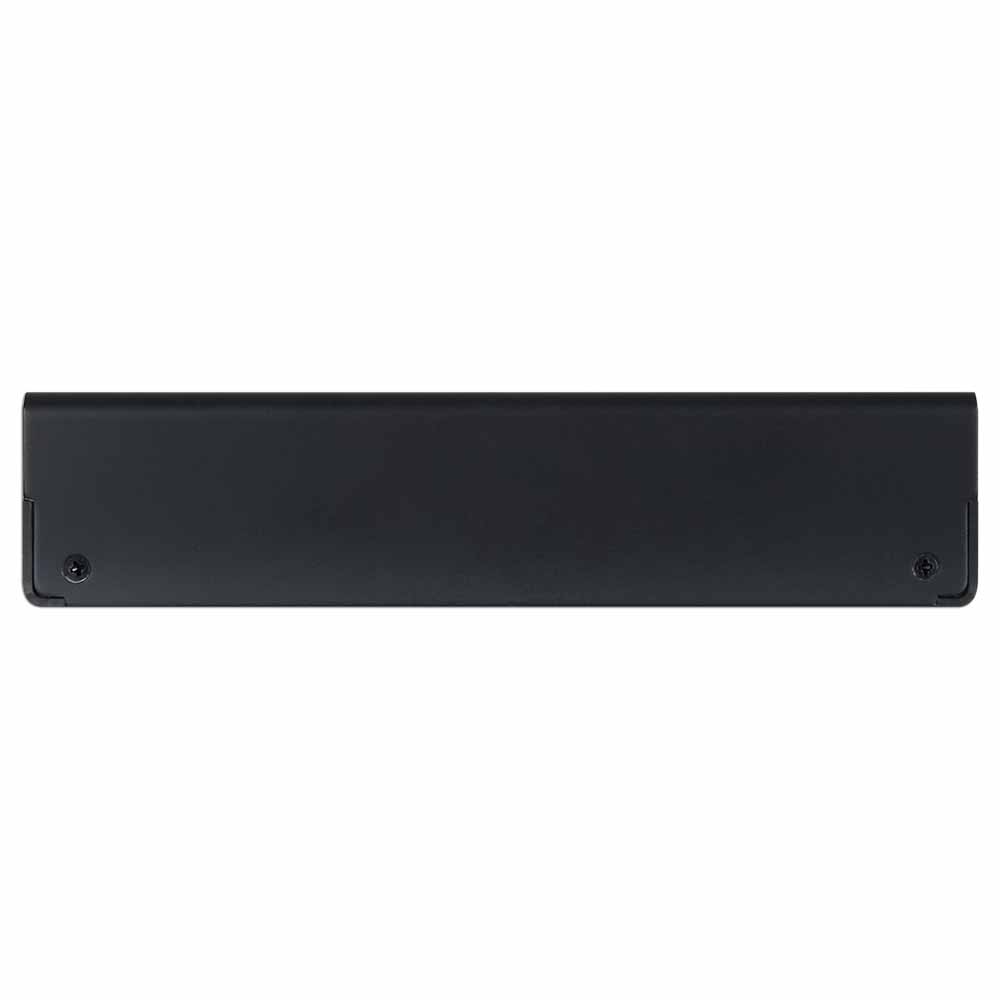

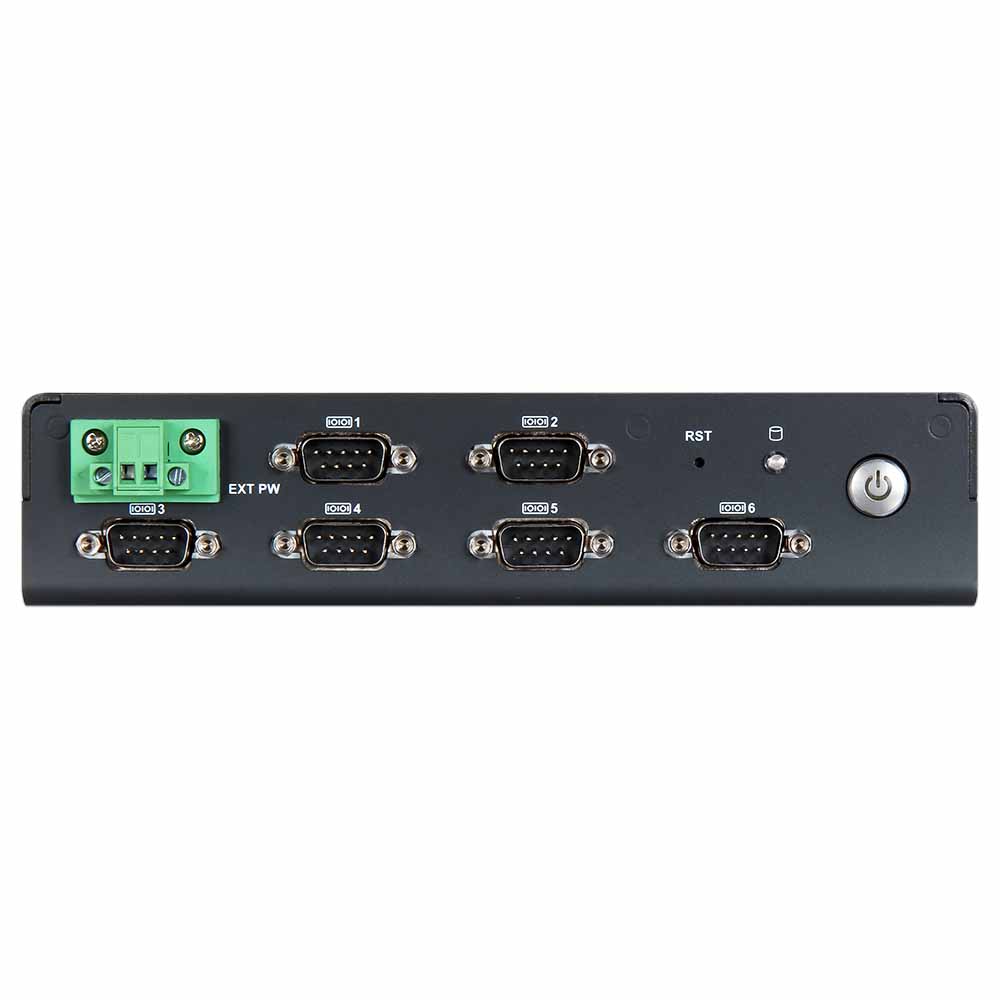

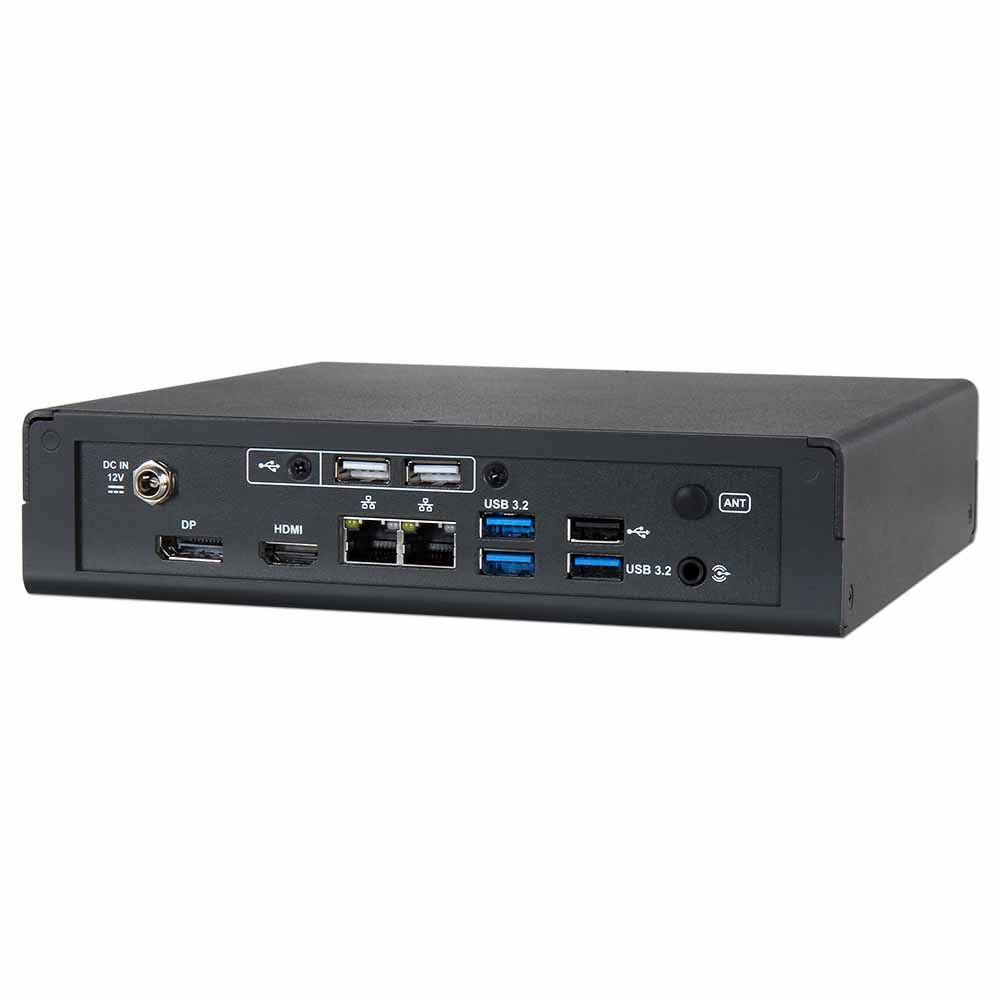

RICH-33I0
Embedded Rugged Fan-less System with Intel® Celeron® Processor J6412 based Mini-ITX Board
- Intel ® Celeron ® Processor J6412
- Memory up to 32GB DDR4 3200 MHz SO-DIMM
- Support one DP and one HDMI ® display
- Support one M.2 E Key socket, one M.2 M Key socket, one full/half size Mini PCIe socket and one full size SD card slot.
- Support 6 x COM ports
- one x Antenna hole
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | WADE-8173-J6412 |
|---|---|
| CPU | Intel ® Celeron ® Processor J6412 In FCBGA1493 package, 2.0GHz(2.6 GHz turbo), 1.5 MB L2 Cache, 10W TDP |
| BIOS | AMI uEFI BIOS |
| Memory | Up to 32GB DDR4 3200 on two SO-DIMM sockets |
| Storage | 1 x SATAIII ports |
| Watchdog Timer | Programmable watchdog timer |
| H/W Status Monitor | Temperature (CPU & System) |
| Expansion | 1x M.2 Key E 2230 with PCIe x 1 and USB 2.0 for wirelesss1x M.2 Key M 2242/2260/2280 with PCIe x 2 and SATA signal for SSD1x Full/Half size Mini PCIe socket with PCIe x1 ( With SIM holder)1x Full size SD card slot |
| Serial Port | 6 x COM ports (1x RS-232/422/485) |
| Display | 1x DP ( resolution up to4096 x 2160)1x HDMI ® (resolution up to3840 x 2160) |
| USB | 3x USB 3.2 Gen 23x USB 2.0 |
| Audio | Audio Jack with Line-out with Realtek ALC897 Audio controller |
| Ethernet | 2x RJ45 connectors (Realtek ® RTL8111H) |
| Other | 1x Antenna hole1x EXT Power Switch |
| Power Input | DC 12V |
| Operation Temperature | 0 °C ~ 50 °C |
| Operation Vibration | 5Grms/10-500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11 msec, IEC 60068-2-27 |
| Storage Temperature | -40 °C ~ 80 °C |
| Relative Humidity | 40 °C, 95%RH non-condensing |
| Dimension | 200 (W) x 200(D) x 45 (H) mm |
| Weight | 2 Kg |
| Mounting | Wall mounting |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RICH-33I0 | Datasheet | 309.69 KB | download – RICH-33I0 | Datasheet |
