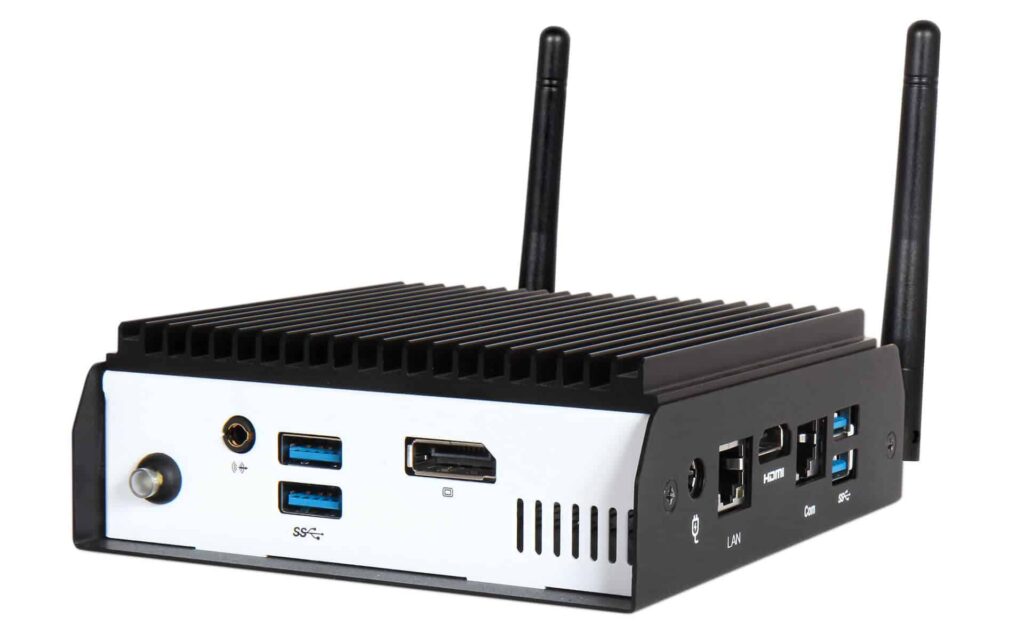

RICH-61D0
Embedded fan-less system with Intel® Apollo Lake NUC platform
- Intel Atom ® 14nm SOC with Dual/Quad Core
- Dual Channel DDR3L 1866 SO-DIMM up to 8G
- Dual display by DP & HDMI ® up to UHD resolution
- M.2 (E+A Key), SATAIII Port and MicroSD 3.0 socket
- DC-In 12V ~19V
- CE/FCC Class B approved
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | WUX-3350/4200/3455 |
|---|---|
| Form Factor | NUC |
| CPU | Intel Atom ® Apollo Lake SOC (N3350/N4200) supports Dual/Quad Core (up to 10W) with 2MB Cache |
| BIOS | AMI UEFI |
| Memory | DDR3L SO-DIMMs, up to 8GB |
| Graphic Controller | Intel ® Gen 9 Graphics supporting DirectX 12, OpenGL 4.2, OpenCL 2.0 HW accelerated video decoding supporting H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, VP9 |
| Super I/O | EC |
| Storage | 1x SATA III port1x Micro-SD 3.0 socket Support Onboard eMMC 5.0 (32G/64G) |
| Serial | 1x RS-232 |
| USB | 4x USB 3.0 |
| Display | HDMI ® , DP |
| Ethernet | Realtek ® RTL8111H |
| PS/2 | N/A |
| Audio | Mic-in or Line-out |
| D I/O | N/A |
| Expansion | 1x M.2 Key E 2230 for wireless module supporting WiFi, BT, 3G & 4G |
| System | DC 12V ~ 19V |
| OP Temp. | 0 °C ~ 60 °C |
| Humidity | 95%@40 °C, non-condensing |
| Vibration | 5Grms/10-500Hz, IEC 60068-2-6 |
| Shock | 50G, 11 msec, IEC 60068-2-27 |
| Storage Temp. | -40 °C ~ 80 °C |
| Dimension(WxDxH) | 113 x135 x 41 mm |
| Weight | 1.5 Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3537 | RICH-61D0 ATO | NUC System. | add to list – RICH-61D0 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RICH-61D0 | Datasheet | 841.54 KB | download – RICH-61D0 | Datasheet |
