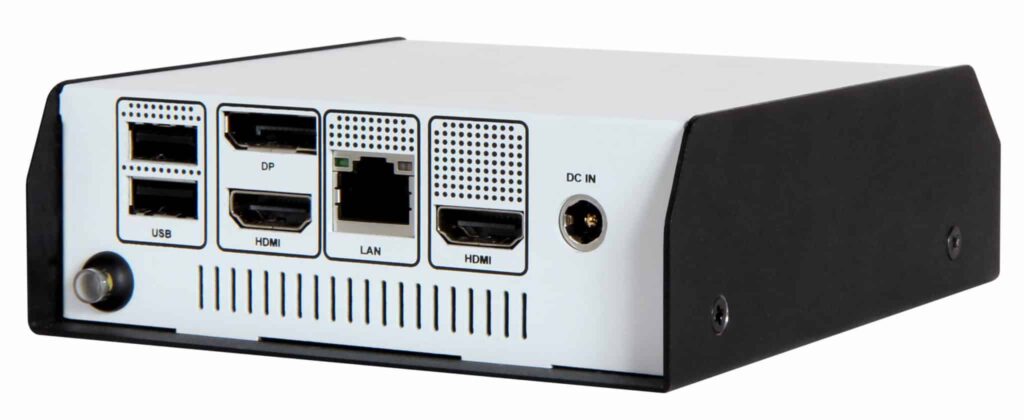

RICH-61E0
Embedded fan-less system with Intel® 7th Gen Kabylake-U based NUC board
- Supports Intel ® 7 th Gen Kabylake-U Core™ MCP Processors
- Supports Dual Channel DDR4 SO-DIMM 2133 ,up to 32GB
- Supports 2 x HDMI ® , 1 x DP
- Support Dual Display (HDMI ® 2 + DP or HDMI ® 1 + HDMI ® 2)
- Support xUSB 3.0, 1 x USB 3.1 (Type C), 1 x IR
- Support M.2 slots 1 x Key E(Supports 2230) and 1 x Key M(Supports 2260)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | WUX-7100 U / 7300 U |
|---|---|
| Form Factor | NUC |
| CPU | Intel ® Kabylake-U Processor Ci5-7300U, 15W TDP (2C/4T) Intel ® Kabylake-U Processor Ci3-7100U, 15W TDP (2C/4T) |
| BIOS | AMI UEFI |
| Memory | DDR4 SO-DIMMs, up to 32GB |
| Graphic Controller | Intel ® HD Graphics 620 |
| Super I/O | EC |
| Storage | 1x SATA III port1x M.2 Key M 2260 for storage |
| Serial | N/A |
| USB | 3x USB 3.0,1x USB 3.1 Type-C |
| Display | 2x HDMI ® , DP |
| Ethernet | Intel ® I219LM |
| PS/2 | N/A |
| Audio | Mic-in or Line-out |
| D I/O | N/A |
| Expansion | 1x M.2 Key E 2230 for wireless module |
| System | DC 12V ~ 19V |
| OP Temp. | 0 °C ~ 60 °C |
| Humidity | 95%@40 °C, non-condensing |
| Vibration | 5Grms/10-500Hz, IEC 60068-2-6 |
| Shock | 50G, 11 msec, IEC 60068-2-27 |
| Storage Temp. | -40 °C ~ 80 °C |
| Dimension(WxDxH) | 113 x135 x 41 mm |
| Weight | 1.5 Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3546 | RICH-61E0 ATO | NUC System | add to list – RICH-61E0 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RICH-61E0 | Datasheet | 852.57 KB | download – RICH-61E0 | Datasheet |
