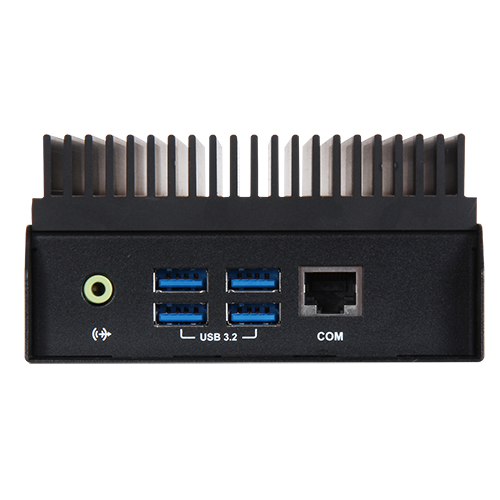

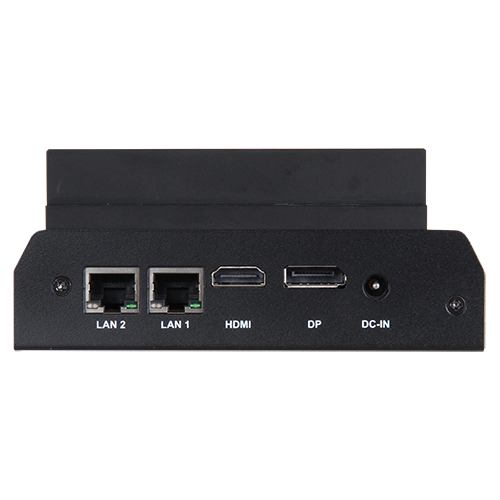

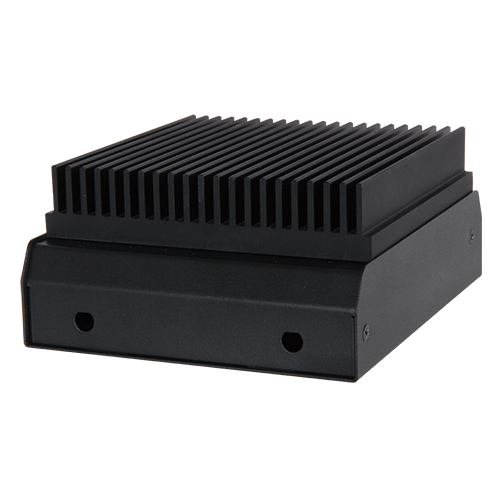

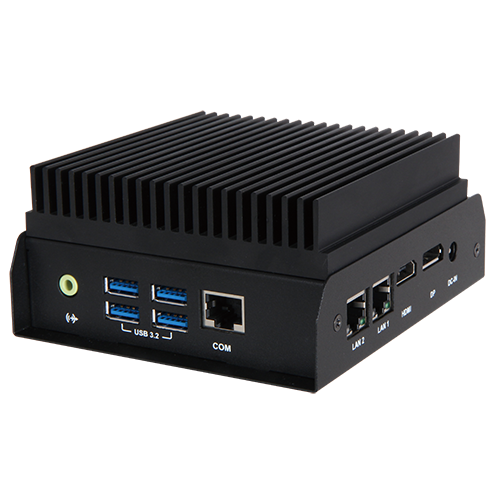

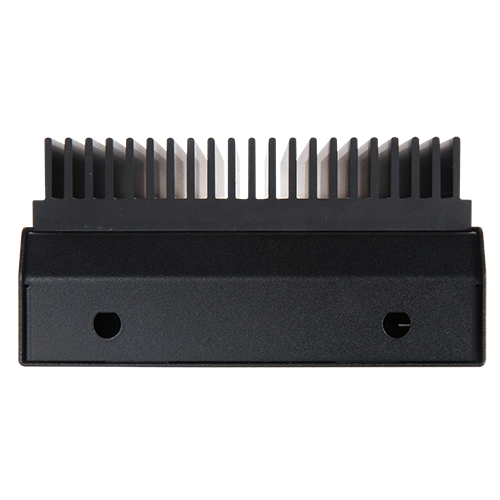

RICH-61F0
RICH-61F0 is a fanless industrial embedded system with Intel Atom® x7000RE CPUs. Supports DDR4 / dual LAN /dual M.2 / wide 12V–19V DC input. Ideal for versatile industrial use.
- Intel Atom ® x7000RE series processors
- Dual 2.5GbE LAN ports, dual displays by DP & HDMI ®
- DDR4 3200 SO-DIMM up to 32GB (Supports In- Band ECC)
- One M.2 Key E, One M.2 Key M, and one RS-232/422/485 via RJ45
- Wide DC-In 12V~19V
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Sys Form Factor | Proprietary |
|---|---|
| Processor | Intel Atom ® x7211RE, 2 cores, 6 W Intel Atom ® x7433RE, 4 cores, 9 W Intel Atom ® x7835RE, 8 cores, 12 W |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 32GB DDR4 3200 MT/s on 1 SODIMM |
| Storage | 1 x M.2 Key-M NVMe PCIe x2 / SATA 22421 x eMMC 128G on board, support up to 256GB |
| Graphic Controller | Intel ® UHD Graphics |
| Audio | 1 x Audio Jack Line-out |
| Ethernet | 2 x 2.5 GbE LAN w/ Intel ® WGI226IT |
| Serial Port | 1 x RJ45 Ports Support RS-232/422/485 |
| USB | 4 x USB 3.2 Gen2 x1 (10Gbps) Type A |
| Display | 1 x HDMI ® 2.0b1 x DP 1.4 |
| Antenna | 2 x SMA Antenna holes for Wi-Fi |
| M.2 | 1 x M Key w/ 2242 PCIe x2 or SATA III for storage1 x E Key w/ 2230 PCIe x1 and USB 2.0 for WiFi/BT module |
| Security | TPM 2.0 (Default) |
| Dimension (WxDxH) | 130 x 112.5 x 55.8 mm (5.12" x 4.43" x 2.20" ) |
| Weight | 1.5 kg |
| Mounting | Wall Mount |
| Cooling | Fanless |
| Power Supply | DC Jack 12-19V |
| Vibration | 5G 10 ~ 500Hz with Wall mount (IEC/EN 60068-2-6) |
| Shock | 50G 11m sec with Wall mount (IEC/EN 60068-2-27) |
| Portwell Special Feature | PET |
| Operating Temperature | -40 ~ 60 °C (-40.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC/UKCA Class B, LVD (EN 62368-1) |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3669 | RICH-61F0 ATO | NUC System. WUX. Amston Lake. | add to list – RICH-61F0 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| RICH-61F0 | Datasheet | 439.57 KB | download – RICH-61F0 | Datasheet |
| RICH-61F0 | User Manual | 2.96 MB | download – RICH-61F0 | User Manual |
| RICH-61F0 | BIOS 0.0.4 | 13.06 MB | download – RICH-61F0 | BIOS 0.0.4 |
