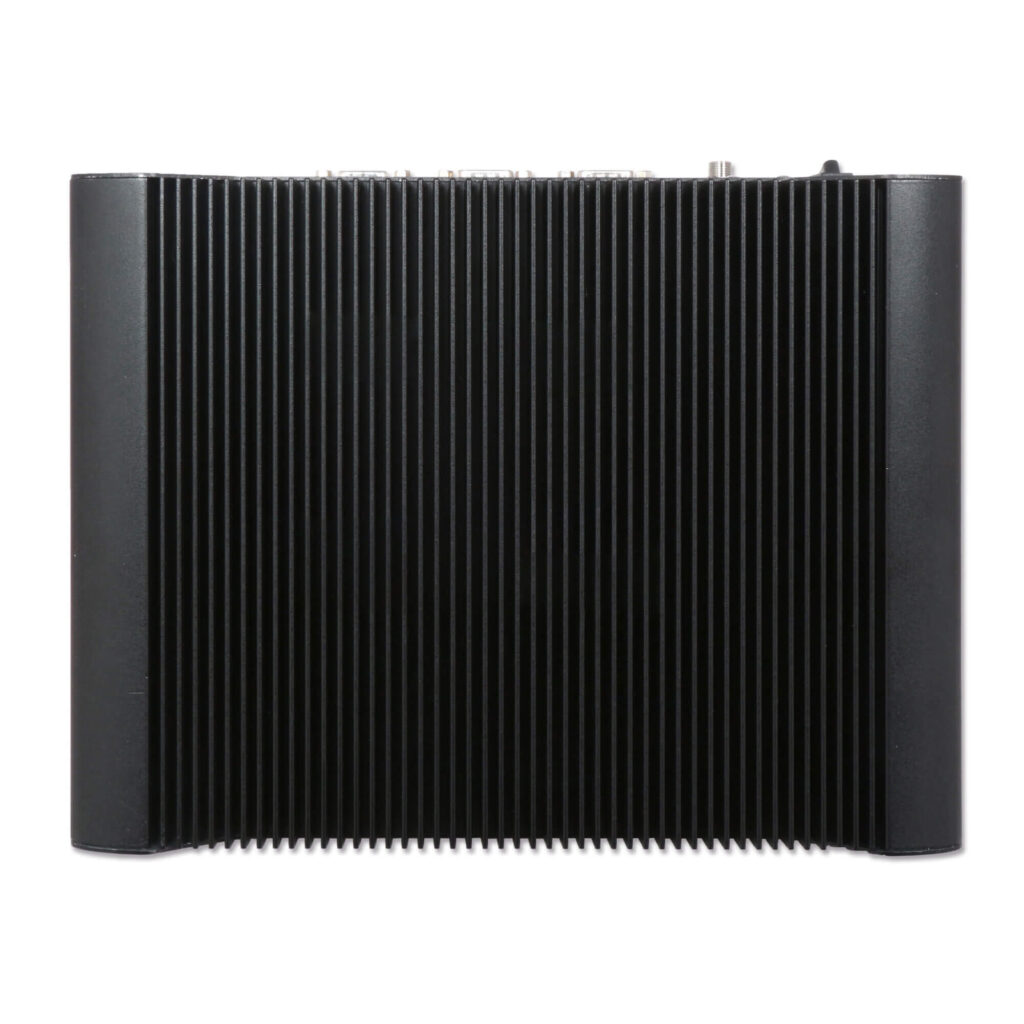

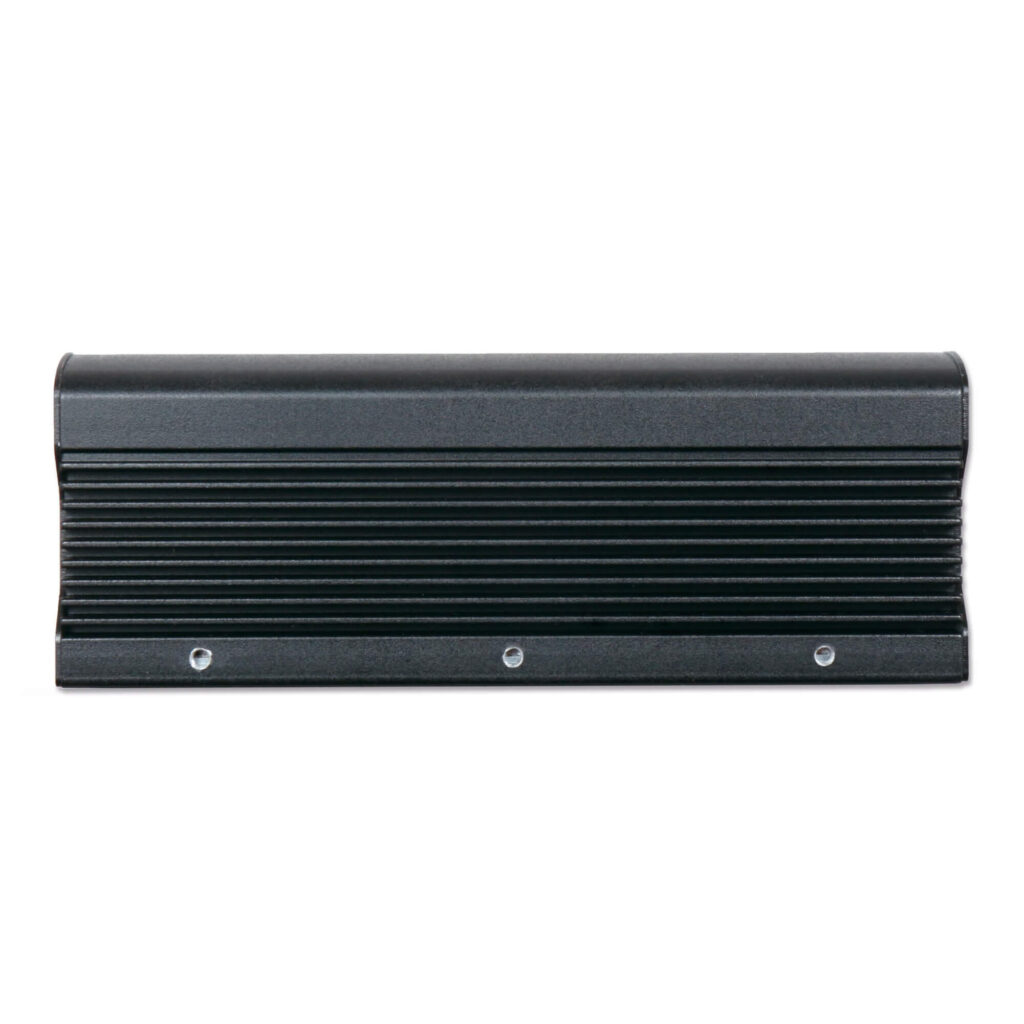

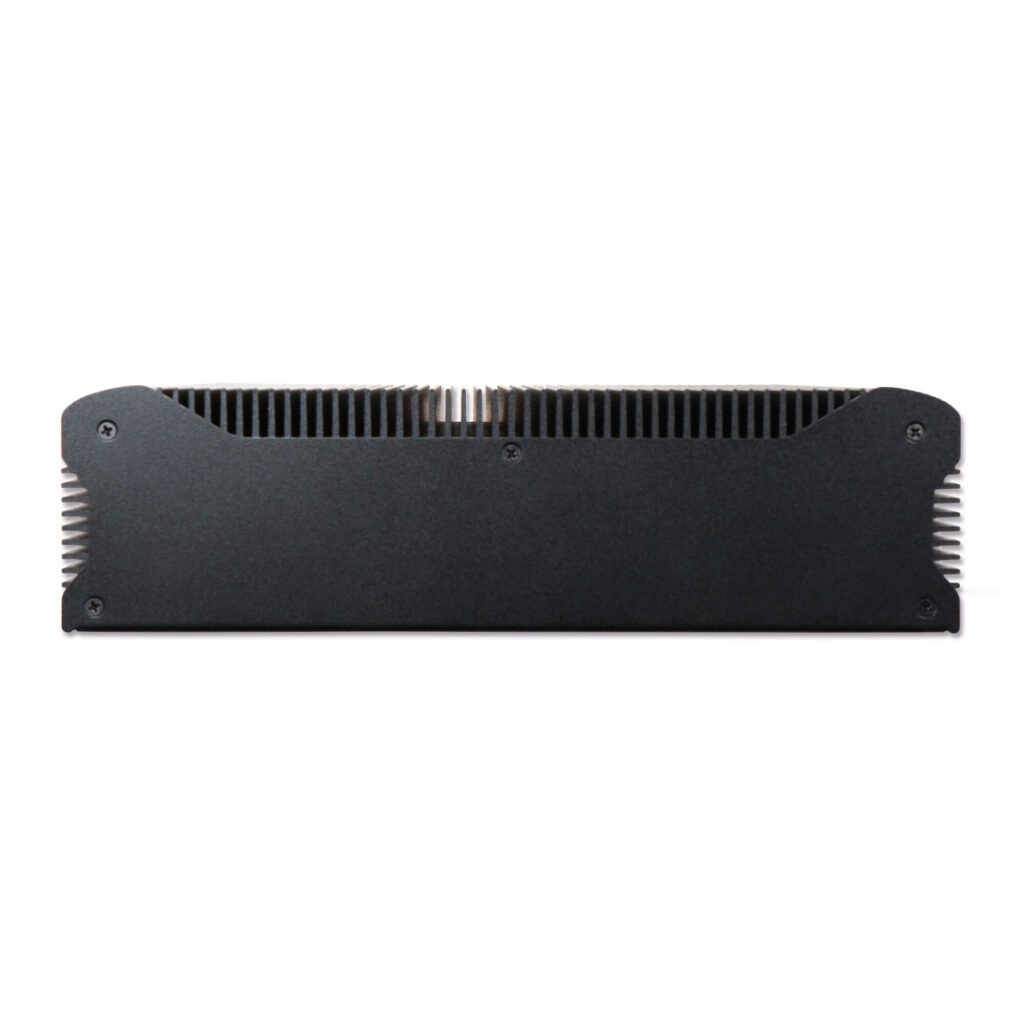

RS4U-B656
Automated Optical Inspection
- 4k codec encode & decode ability
- 9-32V wide range DC in
- eAPI function control
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Intel ® Core™ i7-1185G7E Processor |
|---|---|
| Chassis | WEBS-3560B |
| Memory | B473K0D0 (GP).8GB DDR4/2400 SO-DIMM DRAM Module. 1.2V. 1Gx8, SK Hynix. WARIS |
| Storage | CFEX 2GB & 64GB SATA SSD |

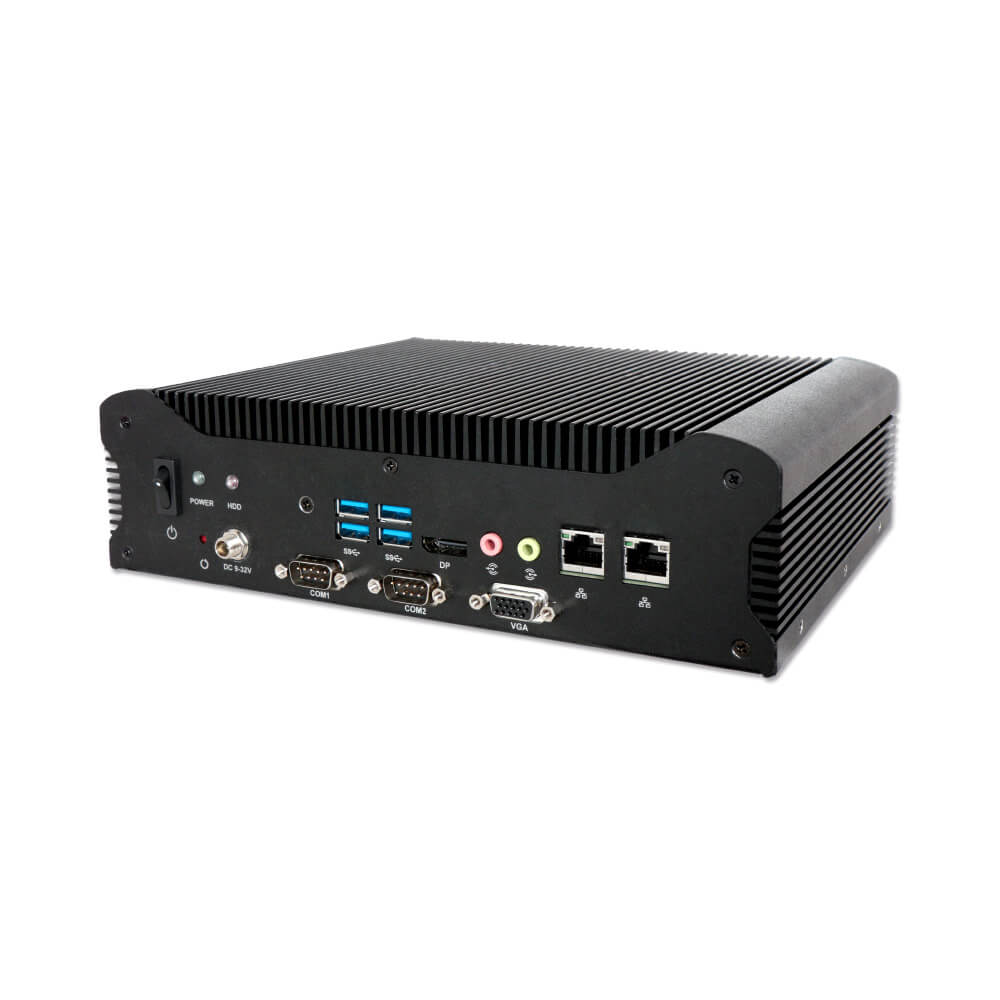

| I/O interface | 1x VGA,1x DP4x USB3.0 (Rear)2x COM (1x RS-232/422/485,1x RS-232)1x Audio support Mic-in & Line-out2x Gigabit Ethernet |
| Power Input | 9-32V DC Input, 60W AC/DC Power Adapter |
| Dimension | 253(W) x 190(D) x 70(H) mm |
| Weight | 4 Kg |
| Operating Temperature | 0 ~ 40 °C |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RS4U-B656 | Application Note | 848.91 KB | download – RS4U-B656 | Application Note |
