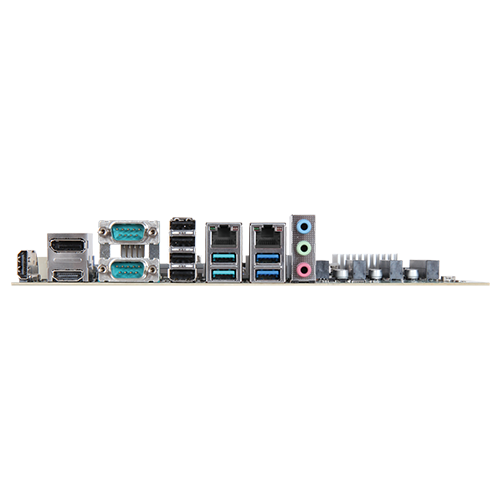

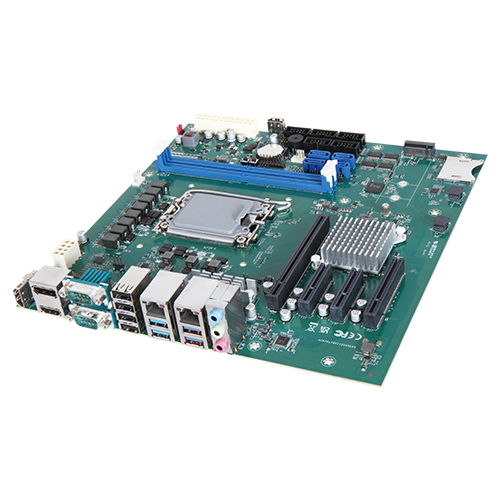

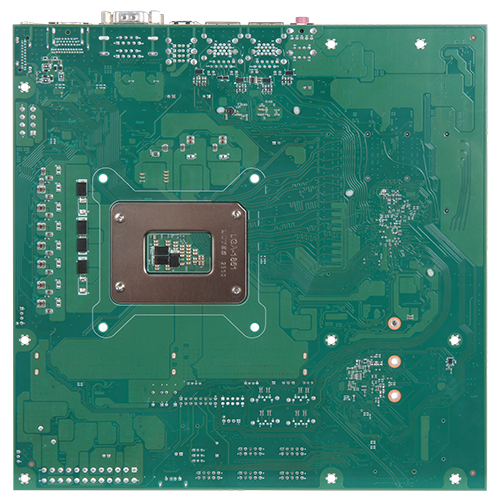

RUBY-D722G2A
Intel® Core™ Ultra Processors; 2x DDR5 Long-DIMM up to 96GB; PCIe x16, PCIe x8, 2x PCIe x4, 1x M.2 key M; dual LAN, 6x COM, 4x USB 3.2, 4x SATA III
- Intel ® Core™ Ultra Processors (Series 2)
- Supports Intel ® 800 Series Chipset
- Two Long-DIMM support DDR5 Non-ECC DRAM up to 96GB
- Support dual Ethernet (one supports OOB function), 6x COM ports, 4x USB 3.2 ports, 4x SATA III ports and Audio
- One PCIe x16, one PCIe x8 (PCIe x4signal), 2x PCIe x4 (PCIe x1 signal). One M.2 (Type M), type 2242/2260/2280
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Micro-ATX |
|---|---|
| Processor | Intel ® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP Intel ® Core™ Ultra Processors (Series 2), LGA 1851 socket, 125W TDP |
| Chipset | Intel ® H810 |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 96GB DDR5 6400 MT/s on 2 non-ECC UDIMM |
| Storage | 4 x SATA Ports Support RAID 0, 1, 5, 101 x SD |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® Xe LPG Graphics |
| Audio | 1 x Audio Jack Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Ethernet | 1 x Intel ® I210AT with GbE LAN 10/100/1000 Mbps (Support OOB W/ OS Recovery, BIOS recovery, Power On/Off, Reset, SOL)1 x Intel ® I219LM with GbE LAN 10/100/1000 Mbps |
| Serial Port | 2 x COM Ports Support RS-232/422/485 |
| USB | 2 x USB 3.2 Gen2 Type A on Bracket2 x USB 3.2 Gen1 Type A on Bracket4 x USB 2.0 Type A on Bracket |
| Display | 2 x HDMI ® 2.03840 x 2160@60Hz1 x DP 1.43840 x 2160@60Hz |
| PCIe | 1 x PCIe Gen5 x161 x PCIe Gen4 x8 ( x 4 signal ) Open Slot2 x PCIe Gen4 x4 ( x 1 signal ) Open Slot |
| Serial Port | 4 x Pin Header support RS-232 |
| USB | 1 x USB 2.0 Vertical Type A |
| M.2 | 1 x M.2 M Key 2242 2260 2280 support SATA, PCIe x1 |
| Security | TPM 2.0 ( On Board IC ) |
| GPIO | 1 x 8-bit Digital I/Os |
| Others | 1 x SMBus |
| Dimension | 244 x 244 mm (9.61" x 9.61") |
| Power Supply | AT mode/ ATX mode |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC |
| OS | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04, RedHat Enterprise |
| Portwell Special Feature | PET, OOB API |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3T78 | RUBY-D722-125W | (R).RUBY-D722G2A-125W. Micro-ATX.IMB.LGA1851.H810 PCH.DDR5/DP/Dual HDMI ® /Dual GbE/COM/Audio/USB-125W | add to list – RUBY-D722-125W |
| AB1-3U98 | RUBY-D722-65W | (R).RUBY-D722G2A-65W. Micro-ATX.IMB.LGA1851.H810 PCH.DDR5/DP/Dual HDMI ® /Dual GbE/COM/Audio/USB-65W | add to list – RUBY-D722-65W |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RUBY-D722G2A | User Manual | 4.16 MB | download – RUBY-D722G2A | User Manual |
| RUBY-D722G2A | Datasheet | 521.04 KB | download – RUBY-D722G2A | Datasheet |
| RUBY-D722G2A | BIOS 0.0.10 | 11.53 MB | download – RUBY-D722G2A | BIOS 0.0.10 |
| RUBY-D722G2A | BIOS 0.0.10 | 11.92 MB | download – RUBY-D722G2A | BIOS 0.0.10 |
