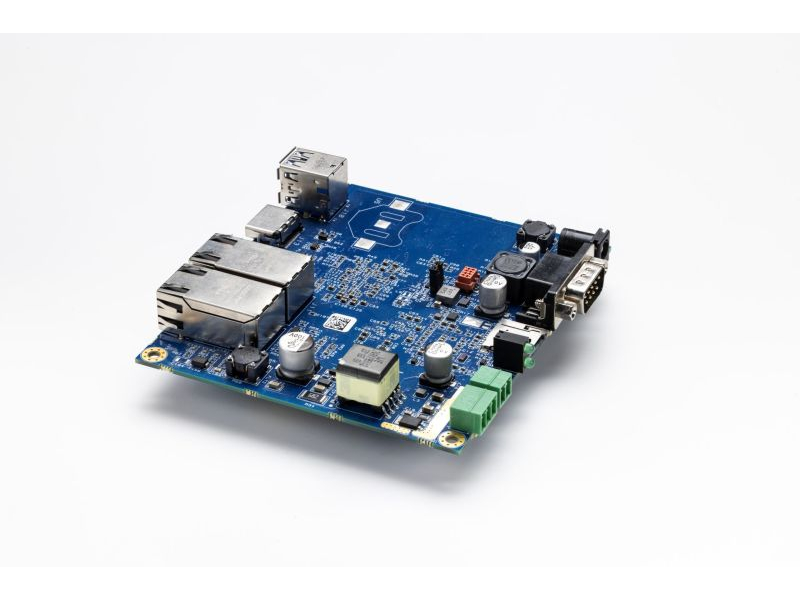

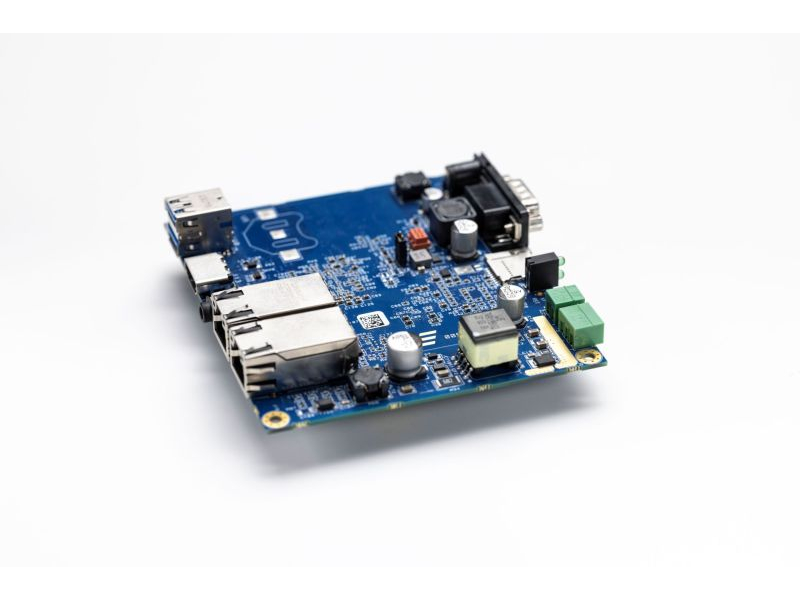

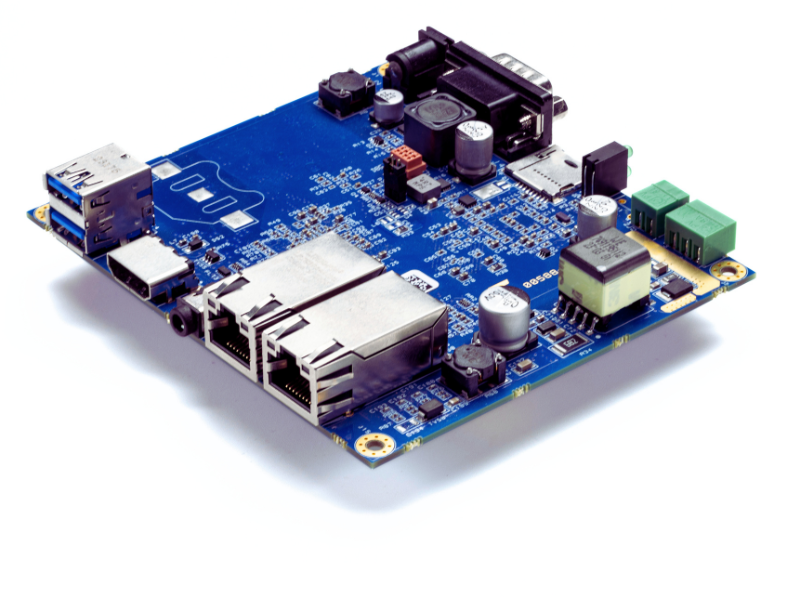

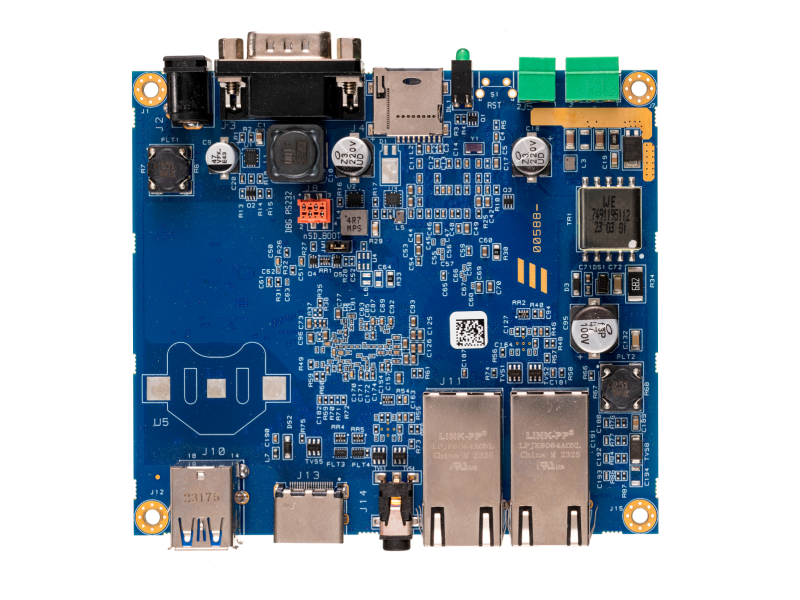

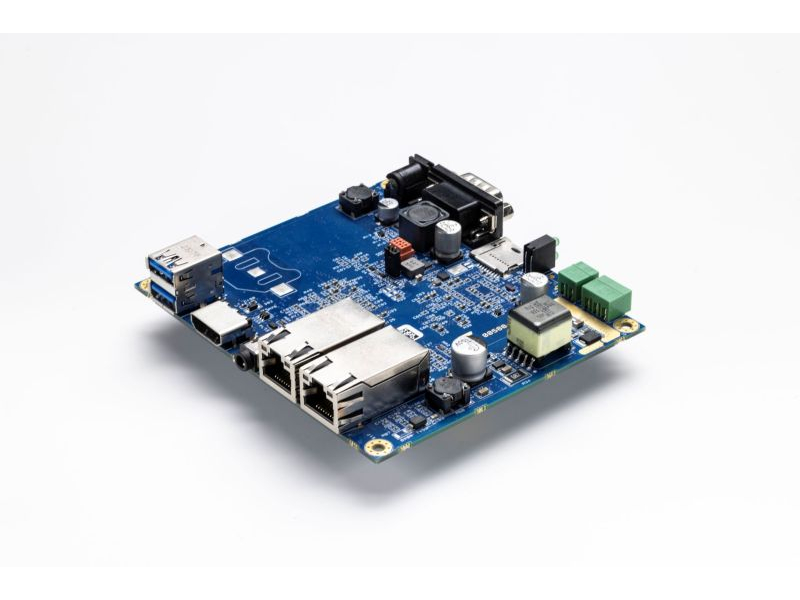

V.Board RK3568
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | RK3568 |
|---|---|
| CPU #2 | Manufacturer: Rockchip |
| CPU #3 | GPU: ja |
| Cores | ARM |
| Cores #2 | ARM Cortex-A55 |
| Cores #3 | 4 cores |
| Memory | LPDDR4@3200MTs |
| Memory #2 | up to 8GB |
| Graphics & AI | 1 TOPS @INT8 NPU 2D graphics, 3D graphics and General Purpose computing on GPU. The Mali-G52-2EE GPU supports these compute API standards: -OpenCL 2.0 Full Profile -OpenGL ES 1.1, 2.0, and 3.2 -Vulkan 1.0 and 1.1. |
| Video Interfaces | HDMI |
| Video Processing Unit Capabilities | HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60. AVC/H.264, HEVC/H.265 encoding |
| Mass Storage | eMMC drive soldered on-board |
| Mass Storage #2 | EMMC |
| Networking | 2x 1Gb Ethernet |
| USB | 2x USB3 |
| PCIe | NO |
| Audio | Build in I2S (on PMIC RK-809) |
| Peripheral Interfaces | 1x uSD card on SDIO Bus,2x RS232 (1 x Linux Console),1x Digital GPIO INPUT (up to 32V),1x Driver Relay 12V |
| Operating System | Linux |
| Operating Temperature | -40° up to 85° |
| Dimensions | 113x100 mm |
| Product availability | 2034 |
