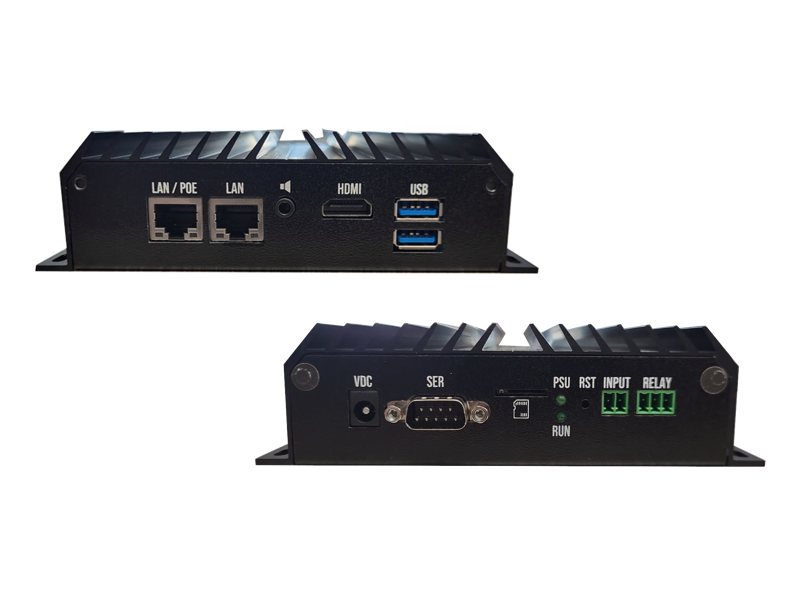

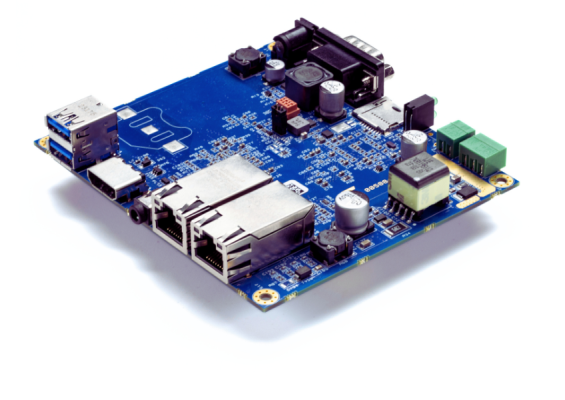

V.Box RK3568
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Features | CPU : Rockchip RK3568/RK3568J, Quad Core ARM Cortex A-55 @1.8 GHz |
|---|---|
| Features #2 | Memory : Up to 8 GB LPDDR4 / 3200 MTs |
| Features #3 | AI : 1.0 TOPS @ INT8 NPU |
| Features #4 | Graphics : 2D graphics, 3D graphics and General Purpose computing on GPU. The GPU supports these compute API standards: - OpenCL 2.0 Full Profile, - OpenGL ES 1.1, 2.0, and 3.2, - Vulkan 1.0 and 1.1 |
| Features #5 | Video Interfaces : - HDMI up to 4K @60Hz - Optional eDP up to 4K@60Hz - LVDS Dual Channel up to Full HD @60Hz via eDP bridge |
| Features #6 | Video processing: - HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60Hz - AVC/H.264, HEVC/H.265 |
| Features #7 | Audio : Build in I2S (on PMIC RK-809) |
| Features #8 | Networking :2 x Gb Ethernet interfaces |
| Features #9 | Power supply: +17 to +26 VDC (on Jack connector) +36V to 57V input Voltage (on POE) |
| Features #10 | USB:2 x USB HOST 3.0 |
| Features #11 | Mass storage: eMMC soldered on board170408 |
| Features #12 | Dimensions:113 x 100 mm |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| V.BOX_Flyer.pdf | 385.27 KB | download – V.BOX_Flyer.pdf |
