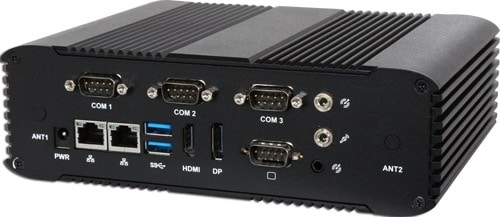

WEBS-13D1
Embedded Rugged Fan-less System with Intel® Atom® E3900 Series based 3.5” ECX Board
- Support Intel ® Apollo Lake series processor
- Support DDR3L-1866/1600 non-ECC SDRAM
- Support dual displays including DP and HDMI ®
- Support Mini-PCIe / mSATA (Dual Mini-PCIe socket)
- Support 4x COM ports( 1x RS-232/422/485)
- 2x Antenna hole for WiFi or 3G/GPS module to use
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | PEB-2773 |
|---|---|
| Form Factor | 3.5" ECX System |
| CPU | Intel Atom ® Dual/Quad Core E3900 Series Processor |
| Chipset | Intel ® SoC |
| BIOS | AMI UEFI |
| Memory | DDR3L/8GB |
| Graphic Controller | Intel ® Gen 9 Graphics |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 + Fintek F81216 |
| Storage | 1x 2.5” SATA HDD/SSD1x mSATA External I/O |
| Serial | 1x RS-232/422/4853x RS-232 |
| USB | 2x USB3.0 ports on Rear I/O4x USB3.0 ports on Front I/O |
| Display | HDMI ® , DP |
| Ethernet | Intel ® I210IT x 2 |
| PS/2 | N/A |
| Audio | Line-out, Line-in, Mic-in |
| D I/O | 8-bit Digital I/O |
| Expansion | 2x Mini-PCIe socket PWR |
| System | DC 12V ~ 24V Environment |
| OP Temp. | -20 °C ~ 60 °C |
| Humidity | 95%@40 °C, non-condensing |
| Vibratoin | 5Grms/10-500Hz |
| Shock | 50G, 11 msec Mechanical |
| Storage Temp. | -40 °C ~ 80 °C |
| Dimension(WxDxH) | 200 × 150 × 80 mm |
| Weight | 2 Kg |
| Mounting | Wall, Panel mounting |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3523 | WEBS-13D1 ATO | 3.5” System | add to list – WEBS-13D1 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WEBS-13D1 | Datasheet | 1.40 MB | download – WEBS-13D1 | Datasheet |
