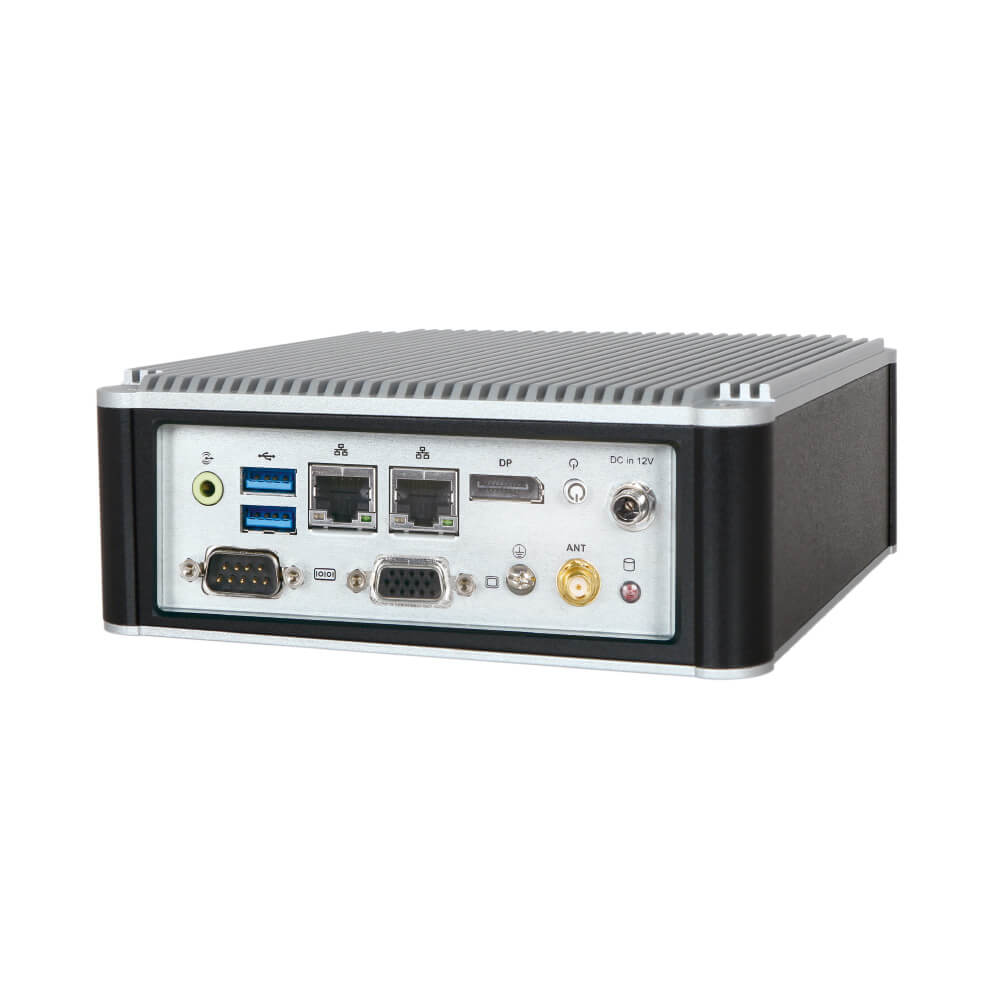

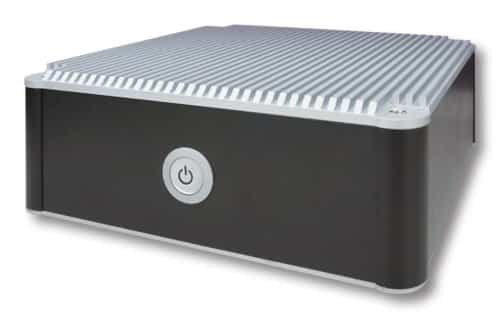

WEBS-2190
Embedded Compact Fan-less System with Intel® Atom® E3800 Series based NANO-ITX Board
- Fan-less and cable-less & small and exquisite design
- Fan-less solution with Quad/Dual-Core CPU
- Intel ® Baytrail SoC base platform
- 1x Half-size Mini-PCIe socket (USB + PCIe x1 signal)
- 1x Antenna hole for WiFi or 3G/GPS module to use
- OP Vibration: 5Grms/10~500Hz
- OP Shock: 50G, 11msec
- IP40 Rating
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | NANO-6060 |
|---|---|
| Form Factor | NANO-ITX |
| CPU | Atom ® E2827 1.75GHz, Atom ® E3845 1.91GHz |
| Chipset | Intel ® SoC |
| BIOS | Phoenix UEFI |
| Memory | DDR3L/4GB |
| Graphic Controller | Intel ® Gen 7 Graphics |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 |
| Storage | 1x 2.5” SATA HDD/SSD1x Micro-SD |
| Serial | 1x RS-232/422/485 |
| USB | 2x USB3.0 |
| Display | VGA, DP |
| Ethernet | Intel ® I210IT x 2 |
| PS/2 | N/A |
| Audio | Line-out |
| D I/O | N/A |
| Expansion | 1x Half-size Mini-PCIe |
| System | DC 12V |
| OP Temp. | -25 °C ~ 60 °C |
| Humidity | 95%@40 °C, non-condensing |
| Vibration | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Storage Temp. | -40 °C ~ 80 °C |
| Dimension(WxDxH) | 150 x150 x 53 mm |
| Weight | 1.3 Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3367 | WEBS-2190 ATO | NANO-ITX System | add to list – WEBS-2190 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| WEBS-2190 | Datasheet | 1.34 MB | download – WEBS-2190 | Datasheet |
