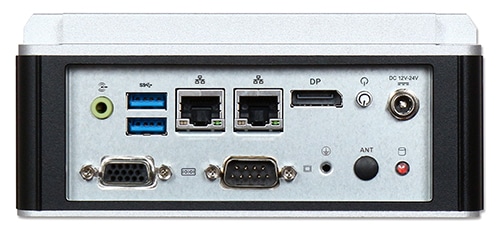

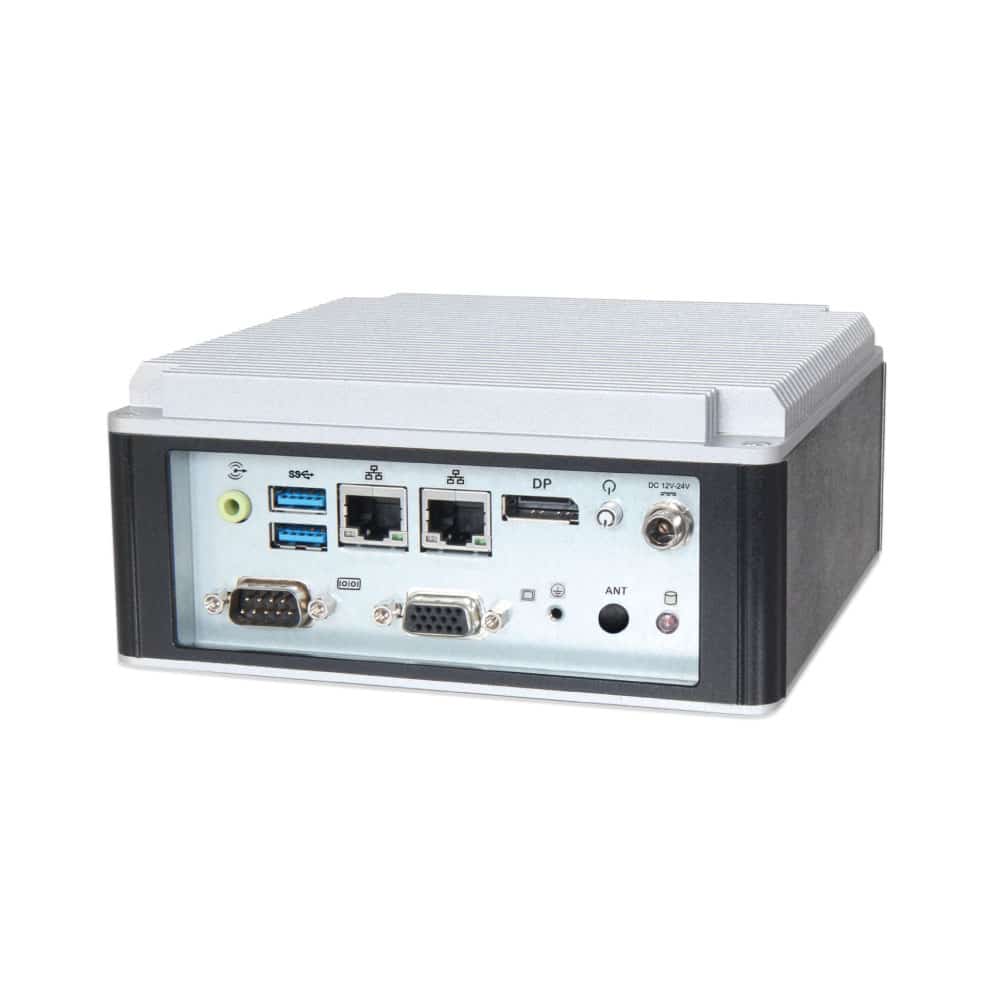

WEBS-21D0
Embedded Compact Fan-less System with Intel® Atom® E3900 Series based NANO-ITX Board
- Powered by Intel Atom ® Apollo Lake Dual/ Quad-core™ E3900 Series SoC
- Support 1x 2.5” HDD/SSD, 1x mSATA, 1x Micro SD
- Dual Display by VGA, DP
- 1x M.2 and 1x Full-size Mini-PCIe socket (colay with mSATA)

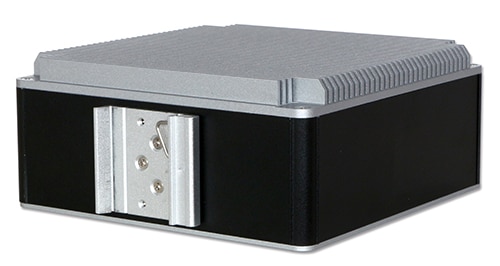

- Support Wall mount, Panel/VESA mount and DIN Rail mount
- Wide Operating Temperature support (-20~ 60°C) with Fan-less design
- Wide Range DC 12V ~ 24V power input
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | NANO-6062 |
|---|---|
| Form Factor | NANO-ITX |
| CPU | Atom ® E3950 1.80GHz, Atom ® E3940 1.60GHz |
| BIOS | AMI UEFI |
| Memory | DDR3L/8GB |
| Graphic Controller | Intel ® Gen 9 Graphics |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 |
| Storage | 1x 2.5” SATA HDD/SSD1x mSATA1x SD |
| Serial | 1x RS-232/422/485 |
| USB | 2x USB3.0 |
| Display | VGA, DP |
| Ethernet | Intel ® I210IT x 2 |
| PS/2 | N/A |
| Audio | Line-out |
| D I/O | N/A |
| Expansion | 1x M.2 (Type E)1x Mini-PCIe socket |
| System | DC 12V ~ 24V |
| OP Temp. | -20 °C ~ 60 °C |
| Humidity | 95%@40 °C, non-condensing |
| Vibration | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Storage Temp. | -40 °C ~ 80 °C |
| Dimension(WxDxH) | 150 x150 x 66 mm |
| Weight | 2 Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3512 | WEBS-21D0 ATO | NANO-ITX system. | add to list – WEBS-21D0 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WEBS-21D0 | Datasheet | 1.55 MB | download – WEBS-21D0 | Datasheet |
