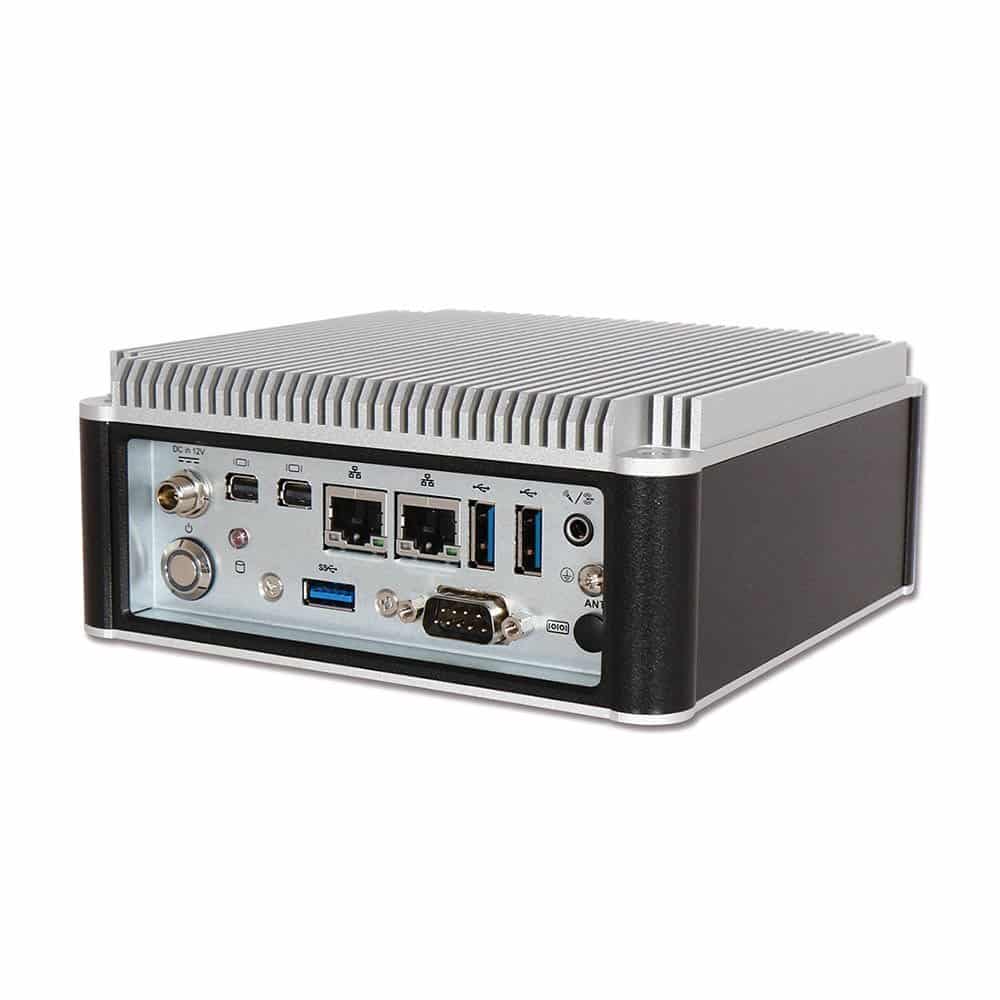

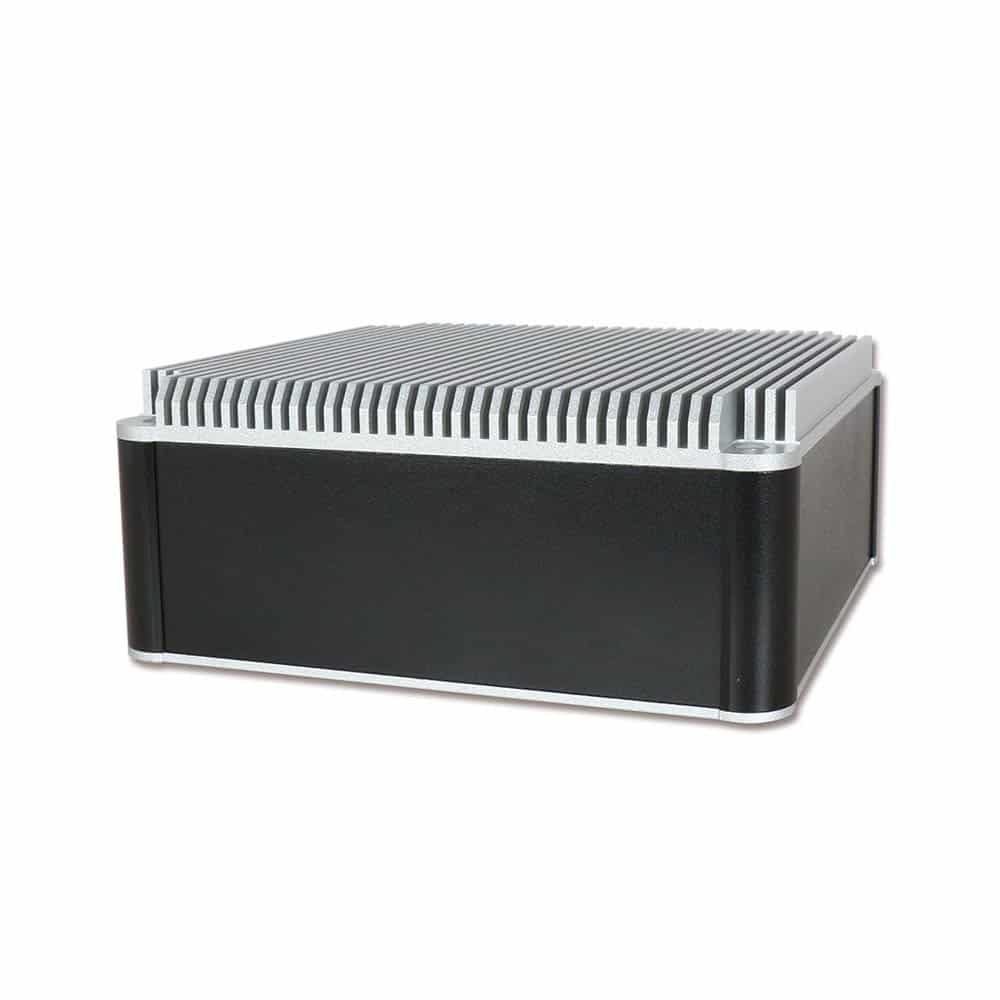

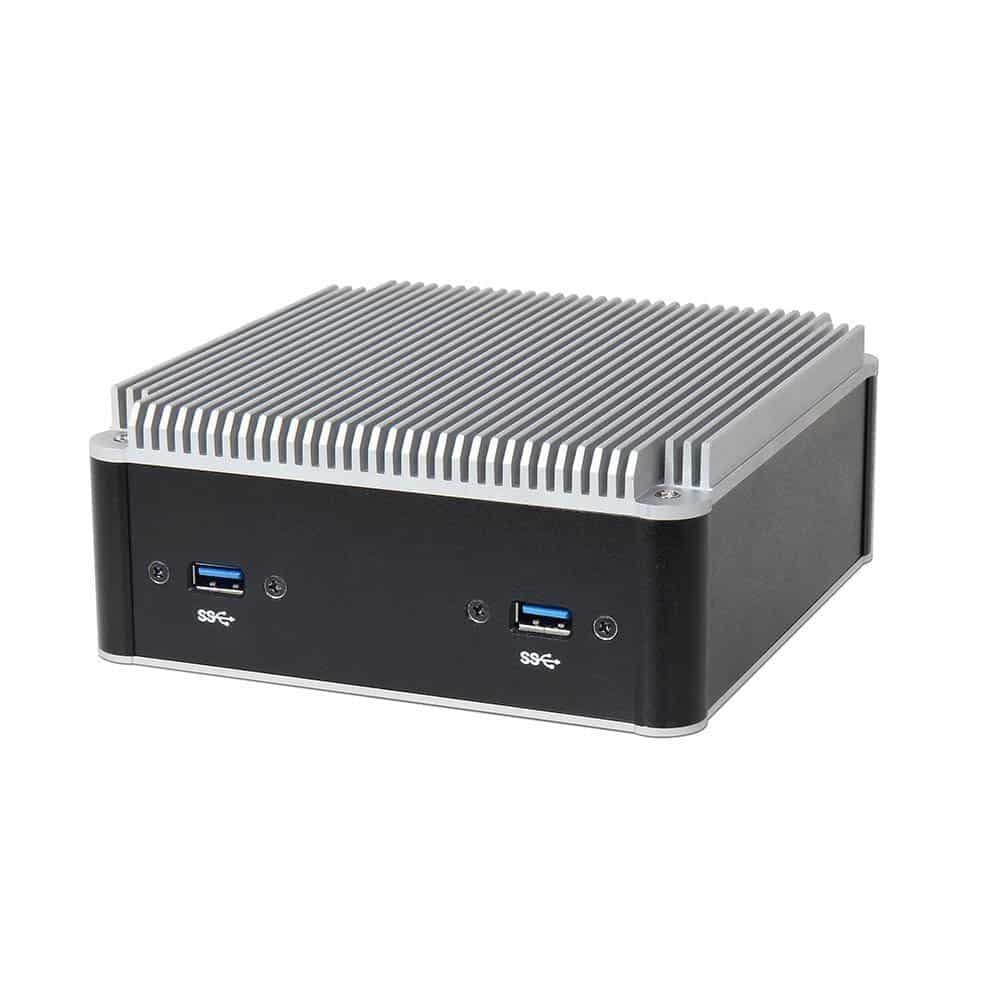

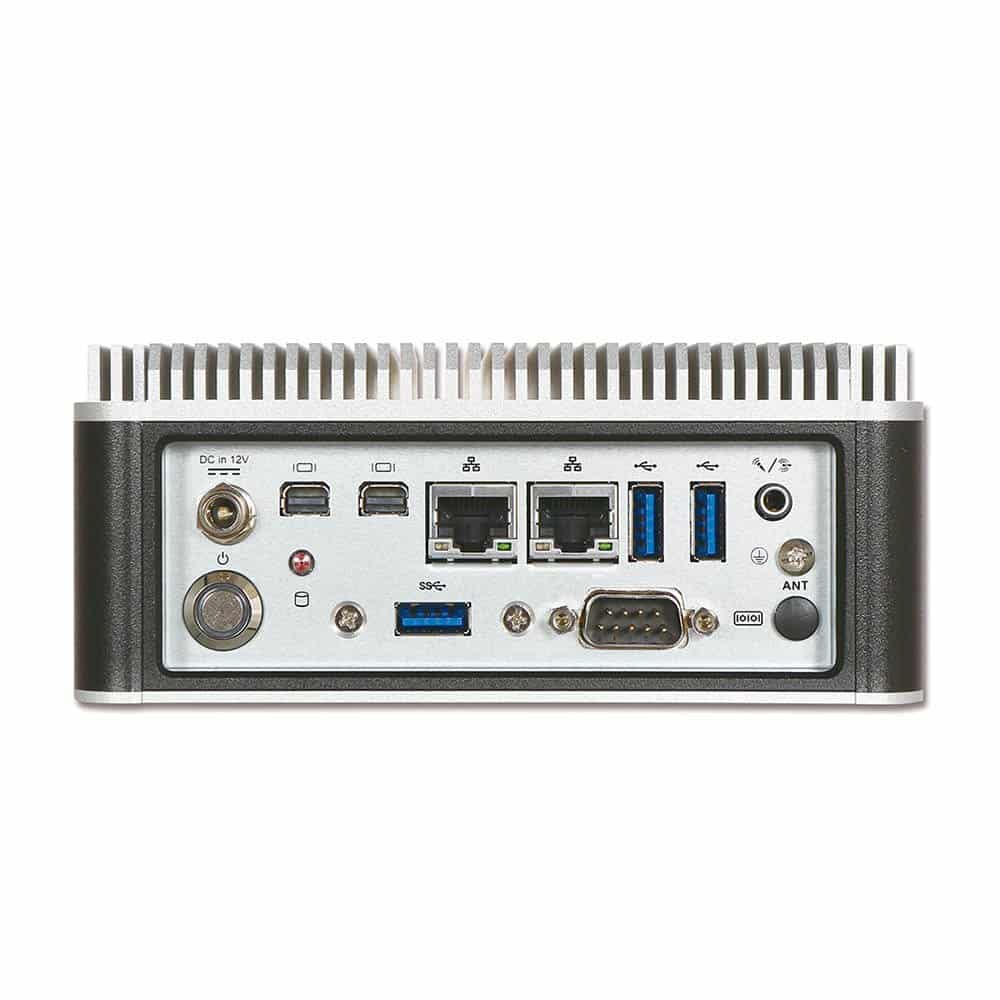

WEBS-21G0
Embedded Compact Fan-less System with Intel® Whiskey Lake-U Core™ i Soc based NANO-ITX Board
- Supports Intel ® Whiskey Lake-U series processor
- 1x DDR4 2400 non-ECC SO-DIMM, Up to 32GB
- 1x M.2 key M 2280 for storage
- Supports Dual mini DP ports
- 1x Antenna hole for WiFi module
- IP 40 Rating
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | NANO-6051 |
|---|---|
| Form Factor | NANO-ITX System |
| CPU | Intel ® 8 th Generation Whiskey lake-U series Processor Core i5/i3 processor (15W TDP) Intel ® |
| BIOS | AMI UEFI |
| Memory | DDR4 SO-Dimms/Up to 32GB |
| Graphic Controller | Intel ® UHD Graphics 620/610 |
| Super I/O | EC |
| Storage | 1x M.2 Key M 2280 for storage External I/O |
| Serial | 1x RS-232/422/485 (BIOS Configurable) |
| USB | 3x USB 3.0 (Rear I/O) |
| Display | 2x mini DP |
| Ethernet | Intel ® I219LM + I210AT |
| PS/2 | N/A |
| Audio | Combo Jack Line-out, Mic-in |
| D I/O | N/A |
| Expansion | 1x M.2 Key E 2230 for wireless module PWR |
| System | DC 12V Environment |
| OP Temp. | 0 °C ~ 55 °C |
| Humidity | 95%@40 °C, non-condensing |
| Vibratoin | 3Grms/10-500Hz IEC 60068-2-6 |
| Shock | 50G, 11 msec IEC 60068-2-27 Mechanical |
| Storage Temp. | -40 °C ~ 85 °C |
| Dimension(WxDxH) | 150 x150 x 62.6 mm |
| Weight | 2 Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3587 | WEBS-21G0 ATO | NANO-ITX System. | add to list – WEBS-21G0 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WEBS-21G0 | Datasheet | 1.12 MB | download – WEBS-21G0 | Datasheet |
