WEBS-21I0

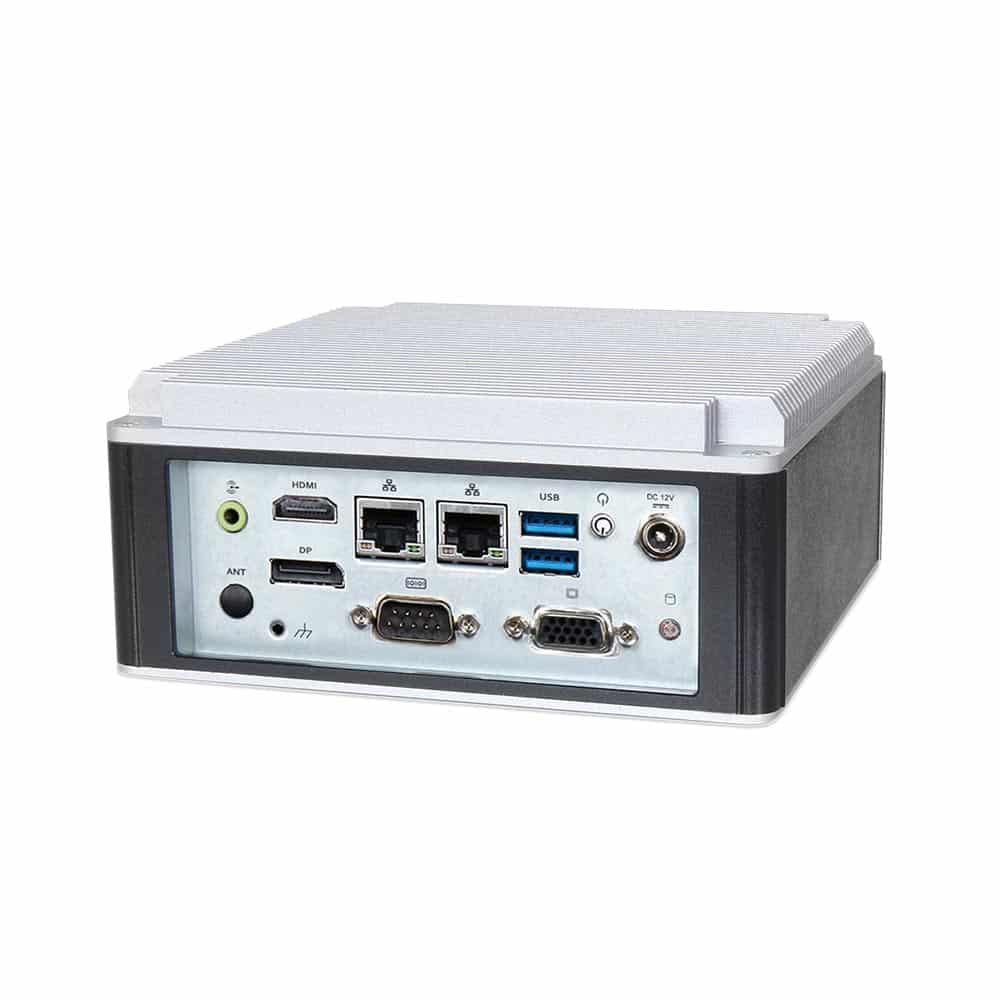

Embedded Compact Fan-less System with Intel® Atom® x6000E Series based NANO-ITX Board
- Powered by Intel Atom ® Elkhart Lake Dual/Quad-core™ x6000 Series SoC
- Support 1x 2.5” SSD , 1x mSATA,1x Micro SD

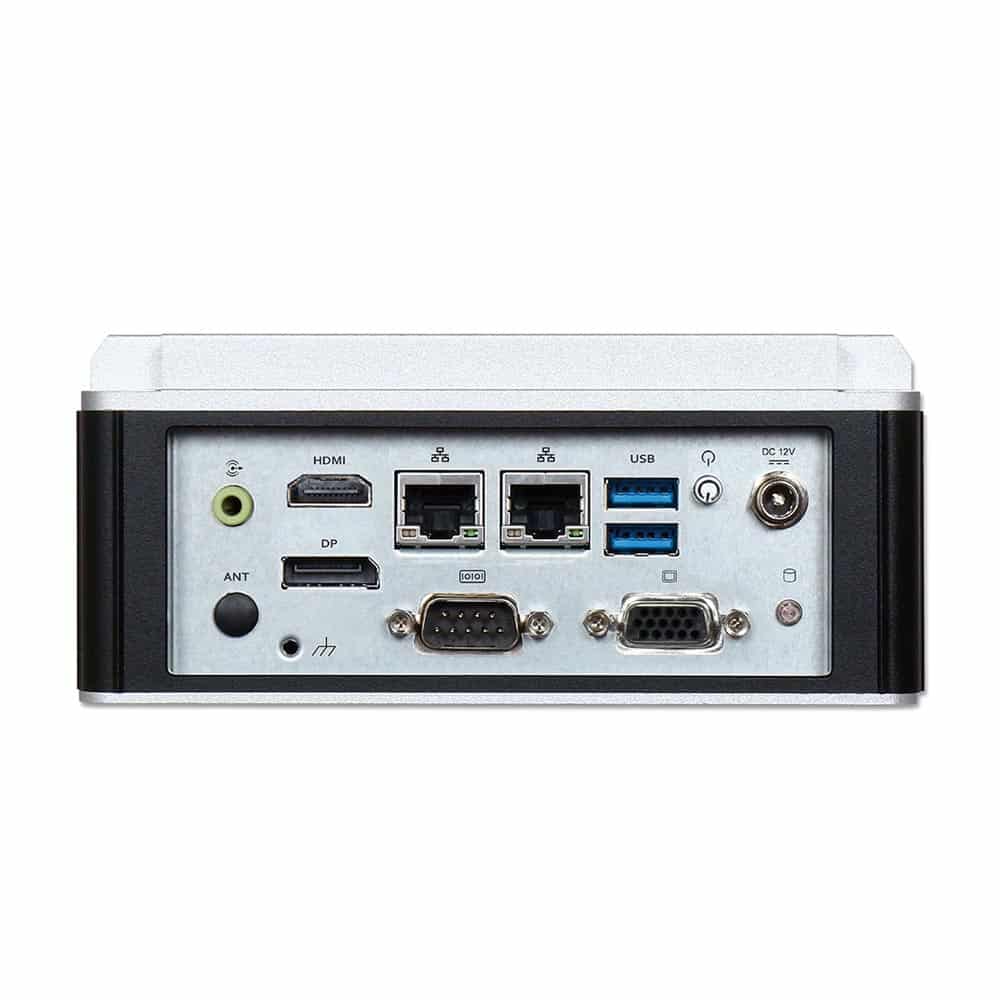

- Triple Display by VGA, DP,HDMI ®
- 1x M.2 and 1x Full-size Mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS)

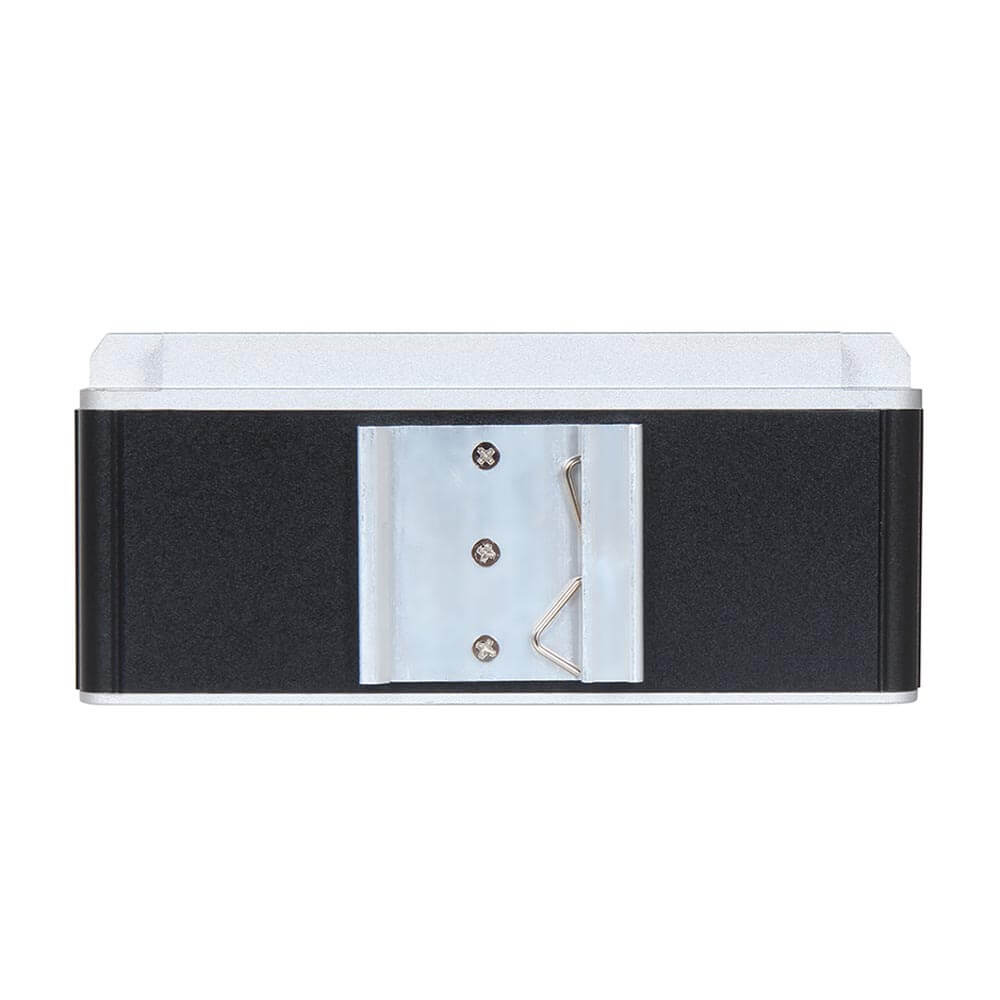

- Support Wall mount and DIN Rail mount

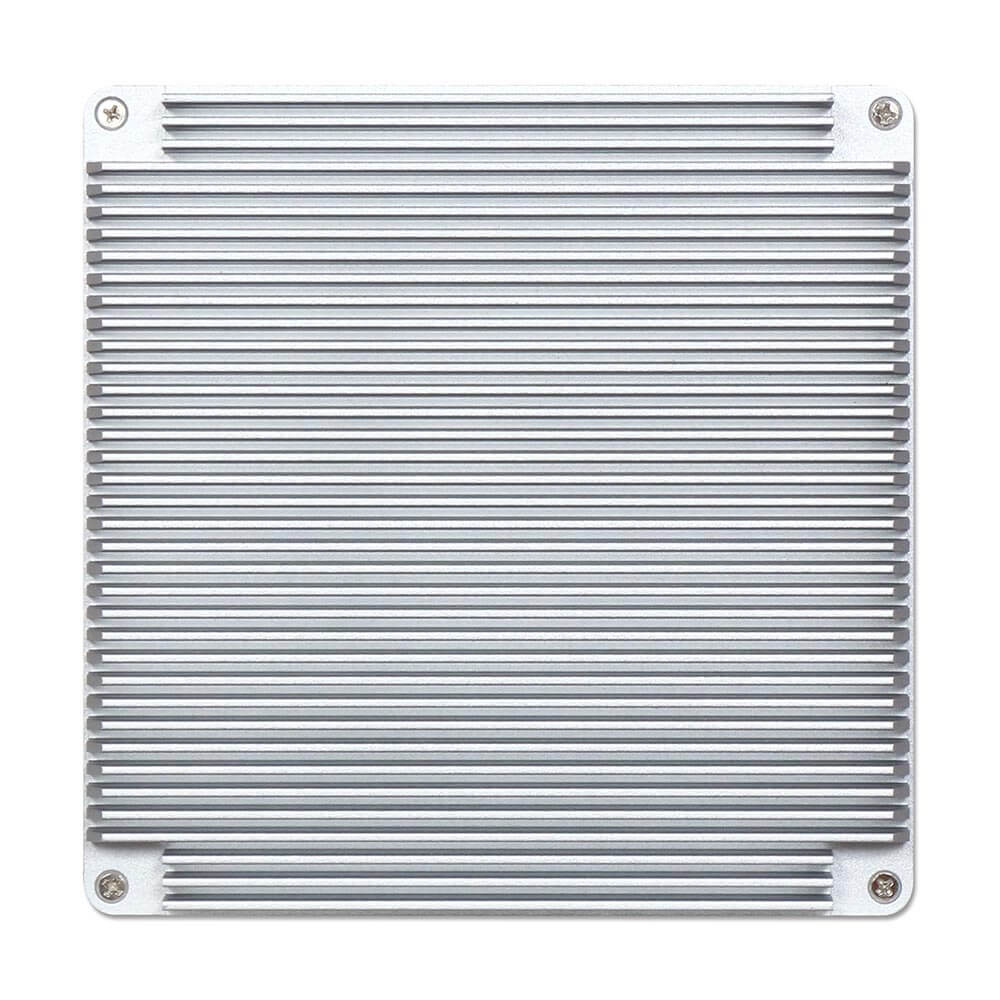

- Wide Operating Temperature support (-20~60°C) with Fan-less design
- DC 12V power input
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | NANO-6063 |
|---|---|
| Form Factor | NANO-ITX |
| CPU | Intel Atom ® Dual/Quad-core x6000E family SoC (up to 12W) |
| BIOS | AMI UEFI BIOS |
| Memory | DDR4 3200 MT/s Non-ECC SO-DIMM up to 32GB |
| Graphic Controller | Intel ® Gen 11 Graphics - Supports Real-time performance with Intel ® Time Coordinated Computing (TCC) and Time Sensitive Networking (TSN) |
| Storage | 1x SATA III port1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS)1x Micro-SD socket |
| Serial | 1x RS-232/422/485 on board connector (selected by BIOS) |
| USB | 2x USB 3.2 Gen 2 ports (10Gbps) |
| Display | 1x VGA,1x DP,1x HDMI ® |
| Ethernet | Intel ® I210 GbE controller and MaxLinear GPY215 GbE PHY Dual RJ45 connectors on rear I/O with two LED indicators |
| Audio | Audio jack on rear I/O with Line-out and on board pin header with Line-in, Line-out, and Mic-in |
| Expansion | 1x M.2 Type E socket1x full size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS)2x USB 3.2 Gen 2 ports on board with header (10Gbps) |
| System | DC 12V |
| OP Temp. | -20 °C ~ 60 °C |
| Humidity | 40 °C, 95%RH, non-condensing |
| Vibration | 5Grms/10 ~ 500Hz, IEC 60068-2-6 |
| Shock | 50G, 11msec, IEC 60068-2-27 |
| Storage Temp. | -40 °C ~ 85 °C |
| Dimension(WxDxH) | 150 x150 x 66mm |
| Weight | 1.4 Kg |
