LYNX-8110
Fanless Embedded System with Intel® Atom® x7433RE Processor, Dual 2.5GbE LAN, Wide 12–30V DC Input, and -40°C to 70°C Wide Temperature Support
- Portwell

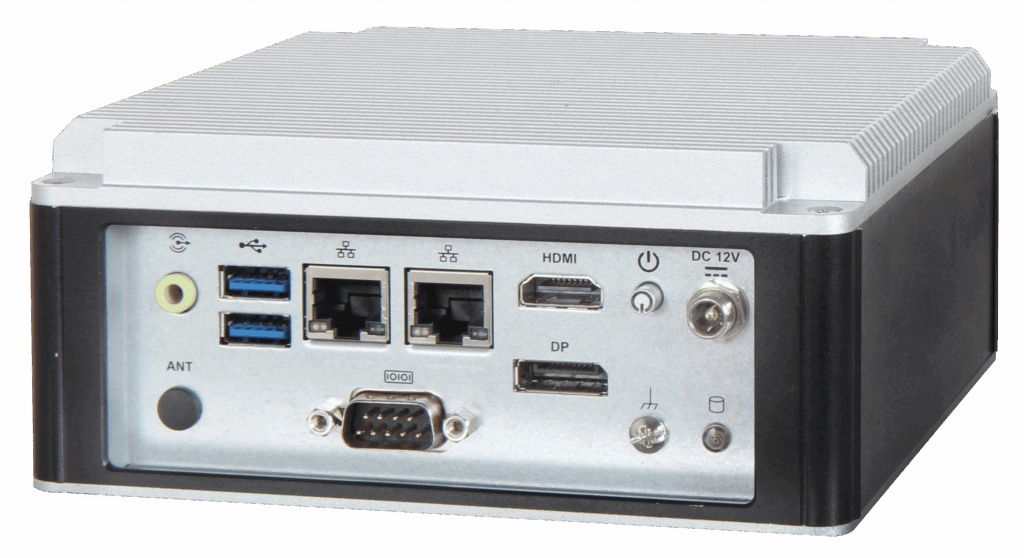

WEBS-21J0-ASL
Embedded Rugged Fan-less System with Intel Atom® X7000RE Series SoC based NANO-ITX Board
- Support low power Intel Atom ® X7000RE Series SoC
- Up to 16GB DDR4 3200MT/s non-ECC SO-DIMM
- Support one DP and one HDMI ® display
- Support one M.2 E Key, One M.2 B Key socket
- SupportoneRS-232/422/485port ( selectable via BIOS)
- One Antenna hole for WiFi module to usage
- Support a wide -40°C to 60°C industrial temperature range
- Optional preassemble HAILO 8 AE key module
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | NANO-6064-ASL |
|---|---|
| CPU | Intel Atom ® X7000RE Series Processor (Up to 9W) |
| BIOS | AMI uEFI BIOS |
| Memory | -1x non-ECC DDR4 3200MT/s SO-DIMM up to 16GB - Support In-Band ECC |
| Storage | -1x SATAIII ports -1x M.2 B key 2280 (SATAIII) |
| Watchdog Timer | Programmable Watchdog Timer |
| H/W Status Monitor | System monitor (Voltage and Temperature) |
| Expansion | -1x M.2 E Key 2230 ~1x M.2 B Key 3052+2280 (Share with M.2 2280 SATAIII socket) |
| Serial Port | 1x RS-232/422/485 port (selectable via BIOS) |
| Display | -1x HDMI ® (HDMI ® 2.0b, 4096×2160@60Hz) ~1x DP (DP 1.4, 4096×2304@60Hz) |
| USB | 2x USB 3.2 Gen2 (Optional kit: additional2x USB 3.2 Gen2) |
| Audio | Audio Jack with Line-out with Realtek ALC897 Audio controller |
| Ethernet | 2x Intel ® 2.5GbE Ethernet controller (I226-IT) |
| Other | TPM 2.0 on board |
| Power Input | DC 12V input |
| Operation Temperature | -40 °C ~ 50 °C (with M.2 SSD, 2.5" SSD, HAILO 8) -40 °C ~ 60 °C (with 2.5" SSD, HAILO 8, without M.2 SSD) |
| Storage Temperature | -40 °C ~ 85 °C |
| Relative Humidity | 40 °C, 95%RH non-condensing |
| Operation Vibration | 3Grms/10-500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11 msec, IEC 60068-2-27 |
| Dimension | 151.6 (W) x 151.6 (D) x 65.7 (H) mm |
| Weight | 1.4 Kg |
| Mounting | Wall, DIN-rail mounting |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WEBS-21J0-ASL | Datasheet | 435.89 KB | download – WEBS-21J0-ASL | Datasheet |
| WEBS-21J0 & WEBS-21J0-ASL | BIOS 0.0.7 | 13.05 MB | download – WEBS-21J0 & WEBS-21J0-ASL | BIOS 0.0.7 |
