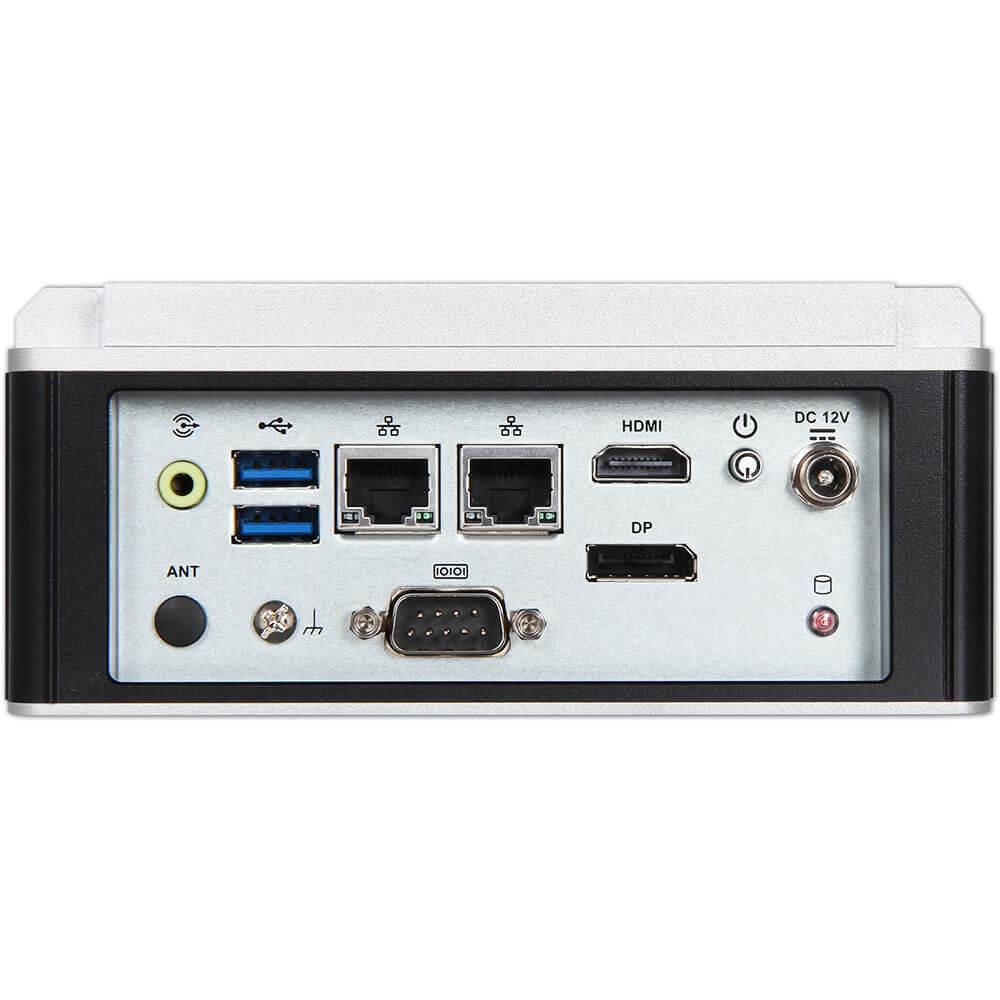

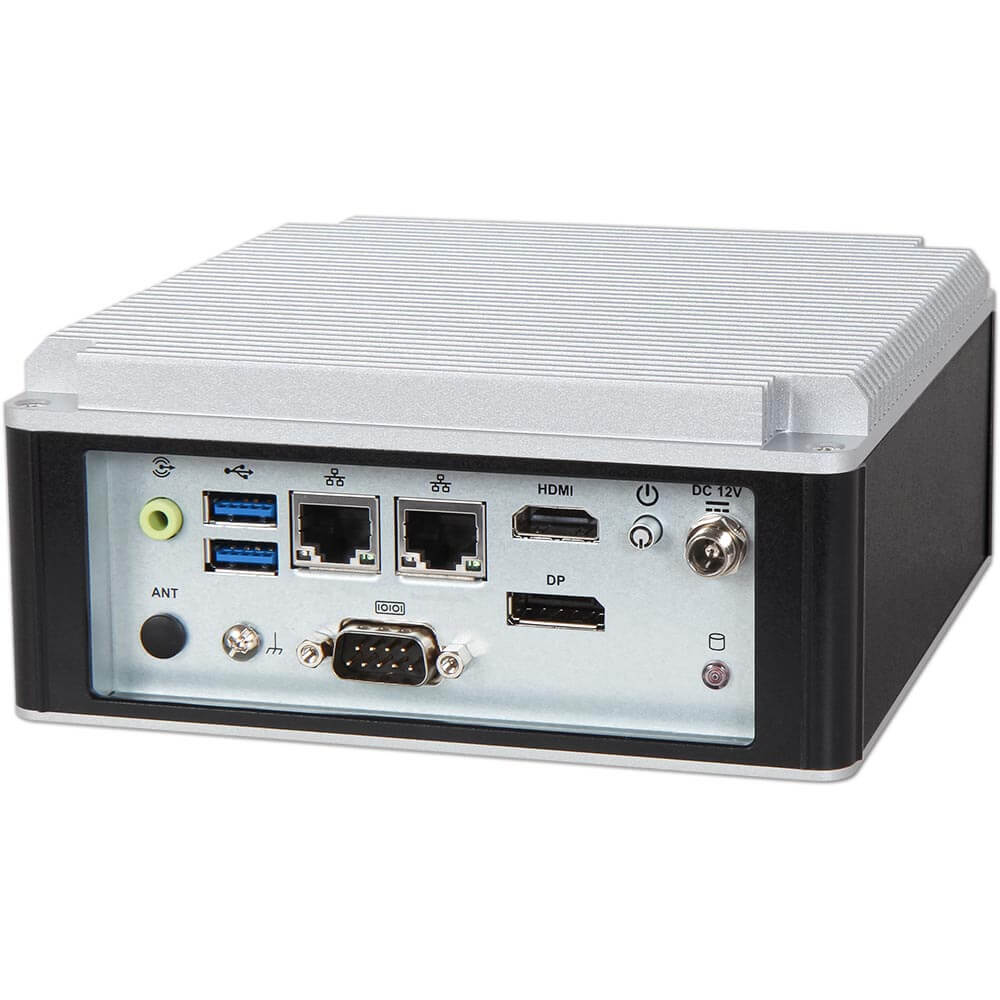

WEBS-21J0
Embedded Rugged Fan-less System with Intel Atom® X7000E Series SoC based NANO-ITX Board
- Support low power Intel Atom ® X7000E and high performance Intel ® Core™ i3 N-Series SoC
- Support 16GB DDR4 3200MT/snon-ECCSO- DIMM
- Support one DP and one HDMI ® display
- Support one M.2 E Key, One M.2 B Key socket
- SupportoneRS-232/422/485port ( selectable via BIOS)
- One Antenna hole for WiFi module to usage
- TPM 2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | NANO-6064 |
|---|---|
| CPU | Intel Atom ® X7000E Series Processor ( Up to 12W) Intel ® Processor N Series Intel ® CoreTM i3 N-Series Processor (Up to 15W) |
| BIOS | AMI uEFI BIOS |
| Memory | 1x non-ECC DDR4 3200MT/s SO-DIMM up to 16GB Support In-Band ECC |
| Storage | 1x SATAIII ports1x M.2 B key 2280 (SATAIII) |
| Watchdog Timer | Programmable watchdog timer |
| TPM | TPM 2.0 |
| H/W Status Monitor | System monitor (Voltage and Temperature) |
| Expansion | 1x M.2 E Key 22301x M.2 B Key 3052+2280 (Share with M.2 2280 SATAIII socket) |
| Serial Port | 1x RS- 232/422/485 port (selectable via BIOS) |
| Display | 1x HDMI ® ( HDMI ® 2.0b,4096×2160@60Hz)1x DP (DP 1.4,4096X2304@60Hz) |
| USB | 2x USB 3.2 Gen2 (Optional kit: additional2x USB 3.2 Gen2) |
| Audio | Audio Jack with Line-out with Realtek ALC897 Audio controller |
| Ethernet | 2x Intel ® 2.5GbE Ethernet controller (I225-LM)2x RJ45 connectors |
| Other | TPM 2.0 on board |
| Power Input | DC 12V input |
| Operation Temperature | 0 °C ~ 50 °C |
| Storage Temperature | -40 °C ~ 85 °C |
| Relative Humidity | 40 °C, 95%RH non-condensing |
| Operation Vibration | 3Grms/10-500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11 msec, IEC 60068-2-27 |
| Dimension | 150 (W) x 150(D) x 66 (H) mm |
| Weight | 1.4 Kg |

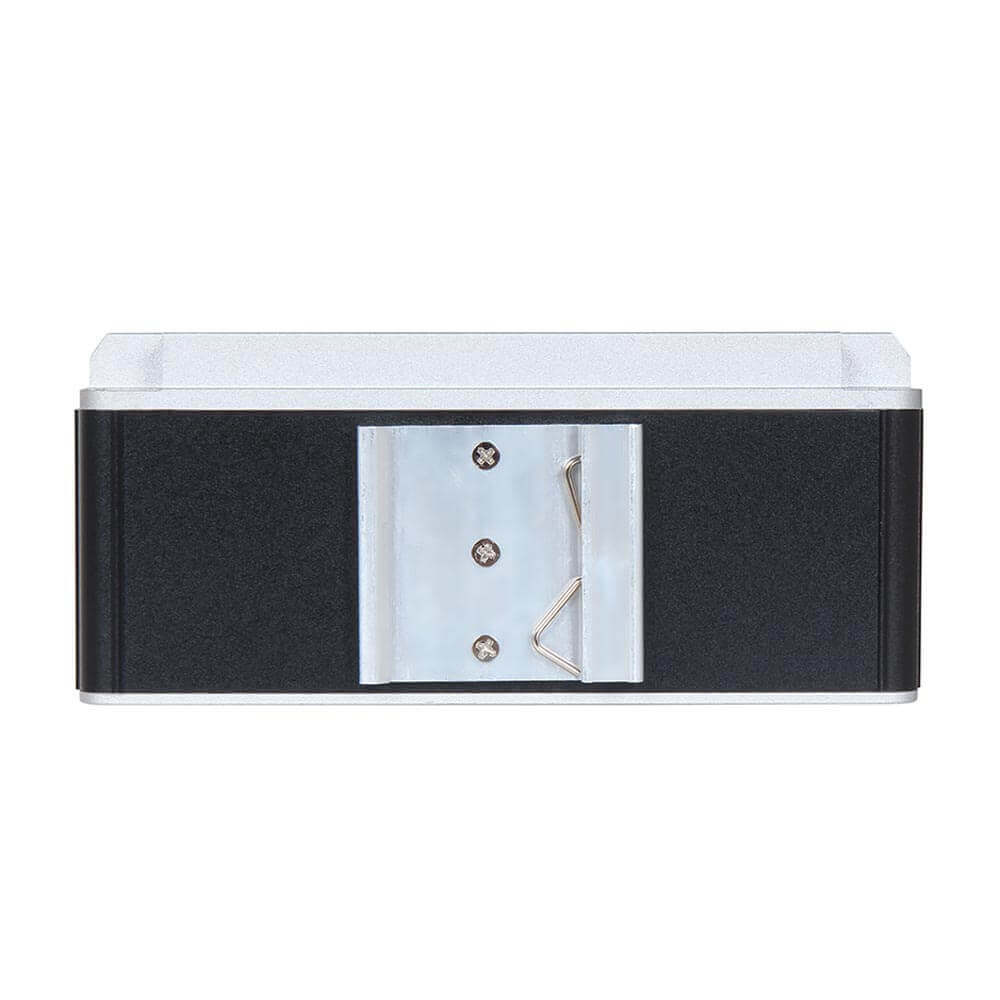

| Mounting | Wall, DIN-rail mounting |
