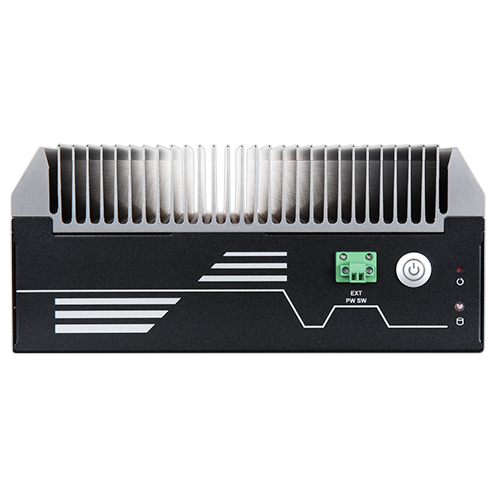

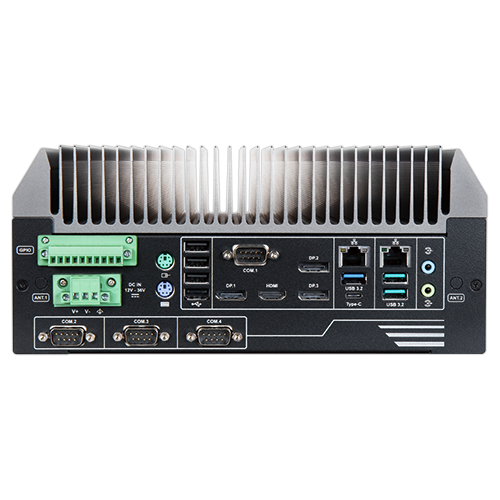

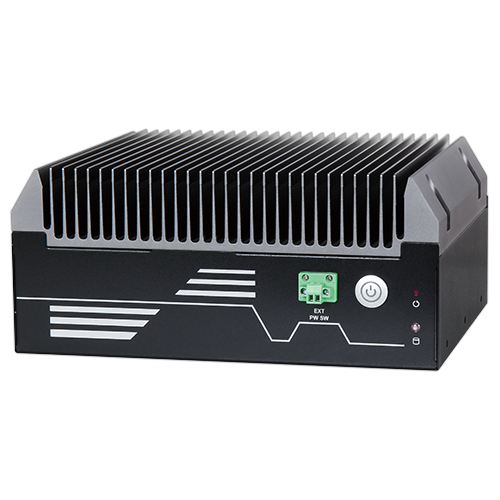

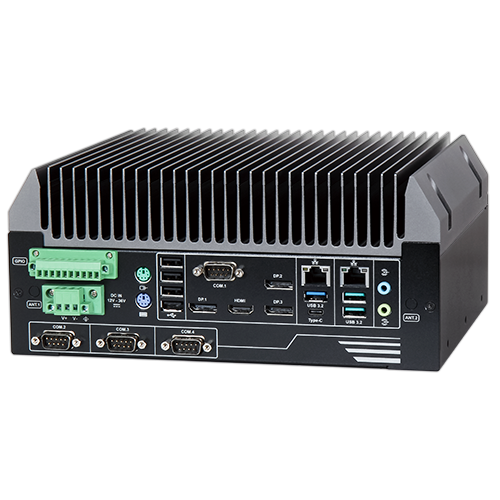

WEBS-45J1-BTL
Embedded Rugged Fan-less System with Intel® Core™ Processors (Series 2) and Intel® Core™ Processors (Series 2) with P-cores based Mini-ITX Board
- Intel ® Core™ Processors (Series 2) and Intel ® Core™ Processors (Series 2) with P-cores LGA 1700 Socket
- Triple DP and One HDMI ® Displays
- Two SO-DIMM Support DDR5 DRAM up to 96GB
- 1x M.2 E Key, 1x M.2 M Key, 4x COM Ports (2x RS-232/422/485)
- Optional Pre-assembled with Hailo-8 M.2 M Key AI Accelerator Module
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Sys Form Factor | Proprietary |
|---|---|
| Processor | Intel ® Core™ 9 273PTE Intel ® Core™ 7 253PTE Intel ® Core™ 7 251TE Intel ® Core™ 5 223PTE Intel ® Core™ 5 221TE Intel ® Core™ 5 213PTE Intel ® Core™ 5 211TE Intel ® Core™ 3 201TE |
| Chipset | Intel ® Q670E |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 96GB DDR5 4800 MT/s on 2 SODIMM |
| Storage | 2 x 2.5" SSD/HDD SATA1 x M.2 Key-M SATA / NVMe PCIe x4 2242/2260/2280 |
| AI Accelerator | Hailo Hailo-8 (M.2 Key M) |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® UHD Graphics |
| Audio | 1 x Audio Jack Line-in , Line-out w/ Realtek ALC897 |
| Ethernet | 1 x 1 GbE LAN w/ Intel ® WGI210AT1 x 2.5 GbE LAN w/ Intel ® WGI225LM |
| Serial Port | 2 x COM Ports Support RS-232/422/4852 x COM Ports Support RS-232 |
| USB | 2 x USB 3.2 Gen2 x1 (10Gbps) Type A1 x USB 3.2 Gen2 x1 (10Gbps) Type C1 x USB 3.2 Gen1 x1 (5Gbps) Type A4 x USB 2.0 (480Mbps) Type A |
| PS/2 | 1 x PS/2 KB & MS |
| GPIO | 1 x 8-bit Digital I/Os |
| Display | 3 x DP1 x HDMI ® |
| Other | Power Button |
| LED | Power, Storage |
| Antenna | 2 x SMA Antenna holes for Wi-Fi |
| Dimension (WxDxH) | 253 x 201.2 x 111.8 mm (9.96" x 7.92" x 4.40" ) |
| Weight | 5.25 kg |
| Mounting | Wall Mount |
| Cooling | Fanless |
| Power Supply | Terminal Block 12 ~ 36V |
| Vibration | 1G 10 ~ 500Hz with Wall mount (IEC/EN 60068-2-6) |
| Shock | 50G 11m sec with Wall mount (IEC/EN 60068-2-27) |
| Portwell Special Feature | PET |
| Operating Temperature | -20 ~ 40 °C (-4.0 ~ 104.0 °F) |
| Storage Temperature | -40 ~ 80 °C (-40.0 ~ 176.0 °F) |
| OS | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WEBS-45J1-BTL | Datasheet | 1.48 MB | download – WEBS-45J1-BTL | Datasheet |
