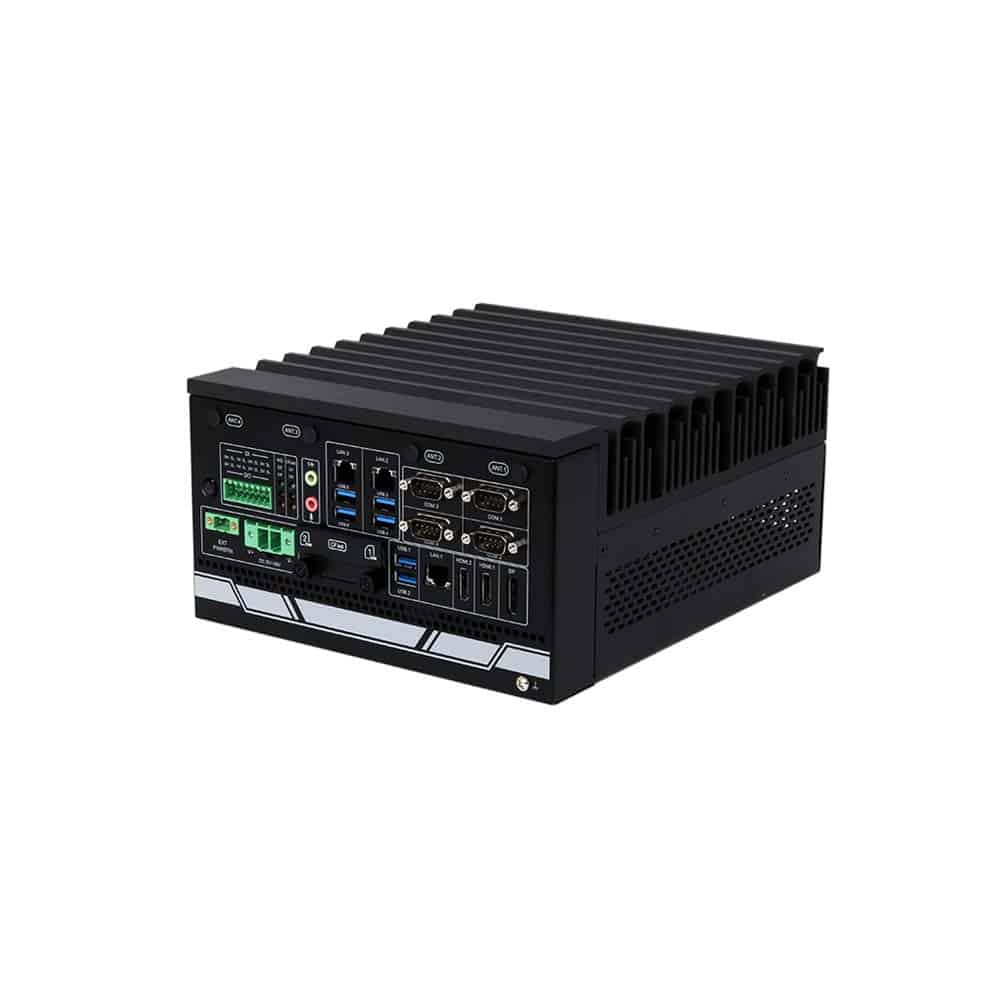

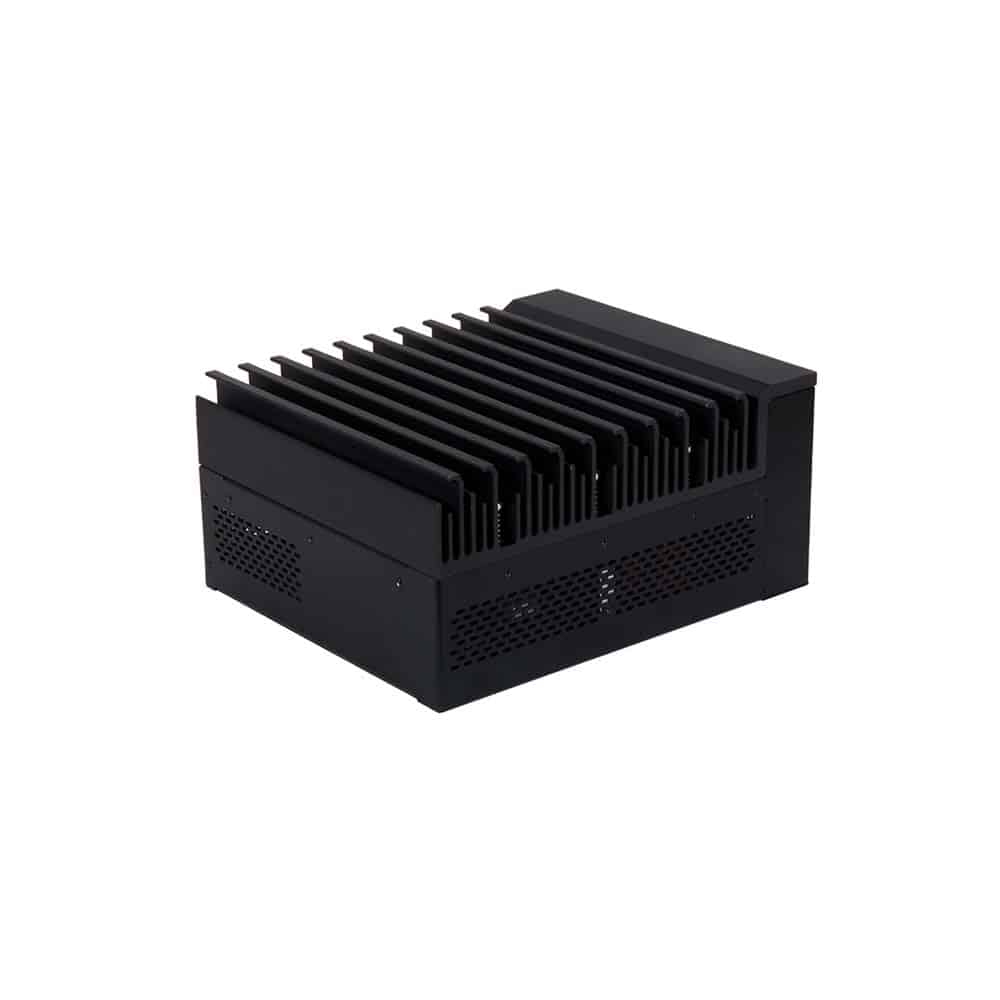

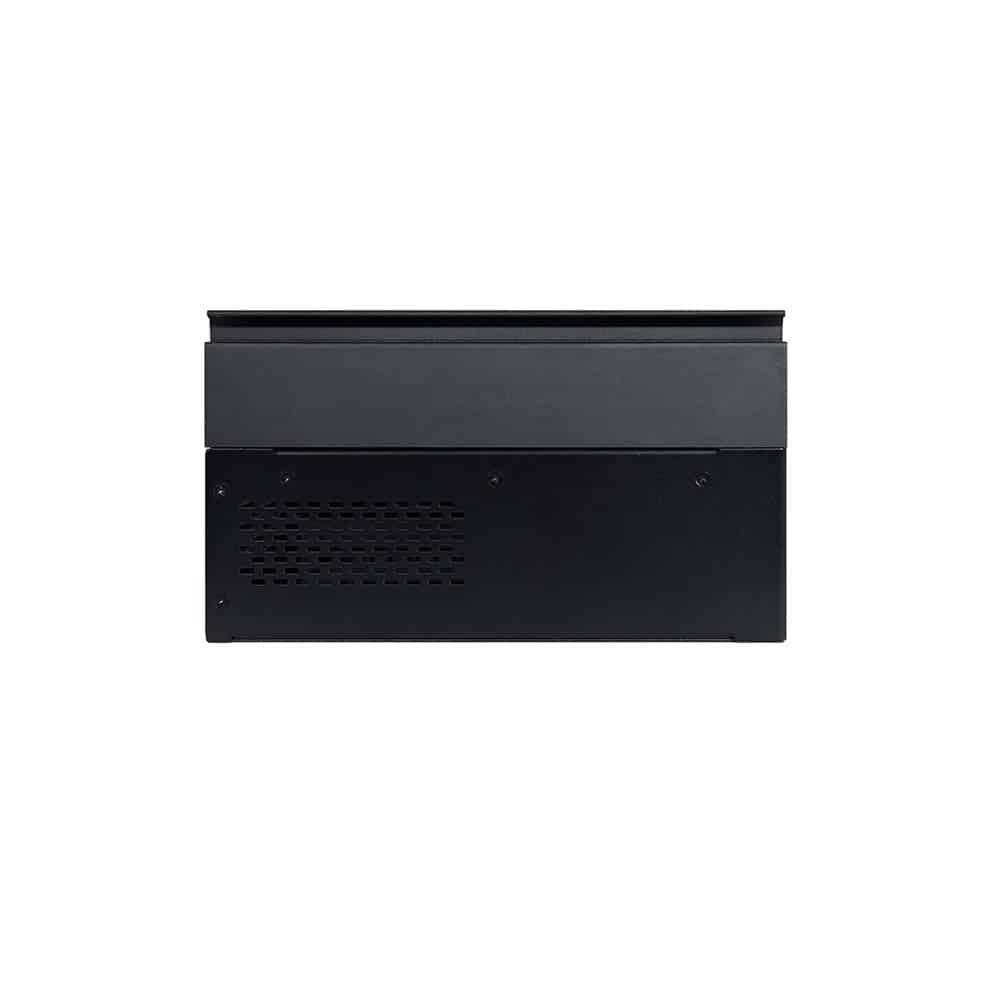

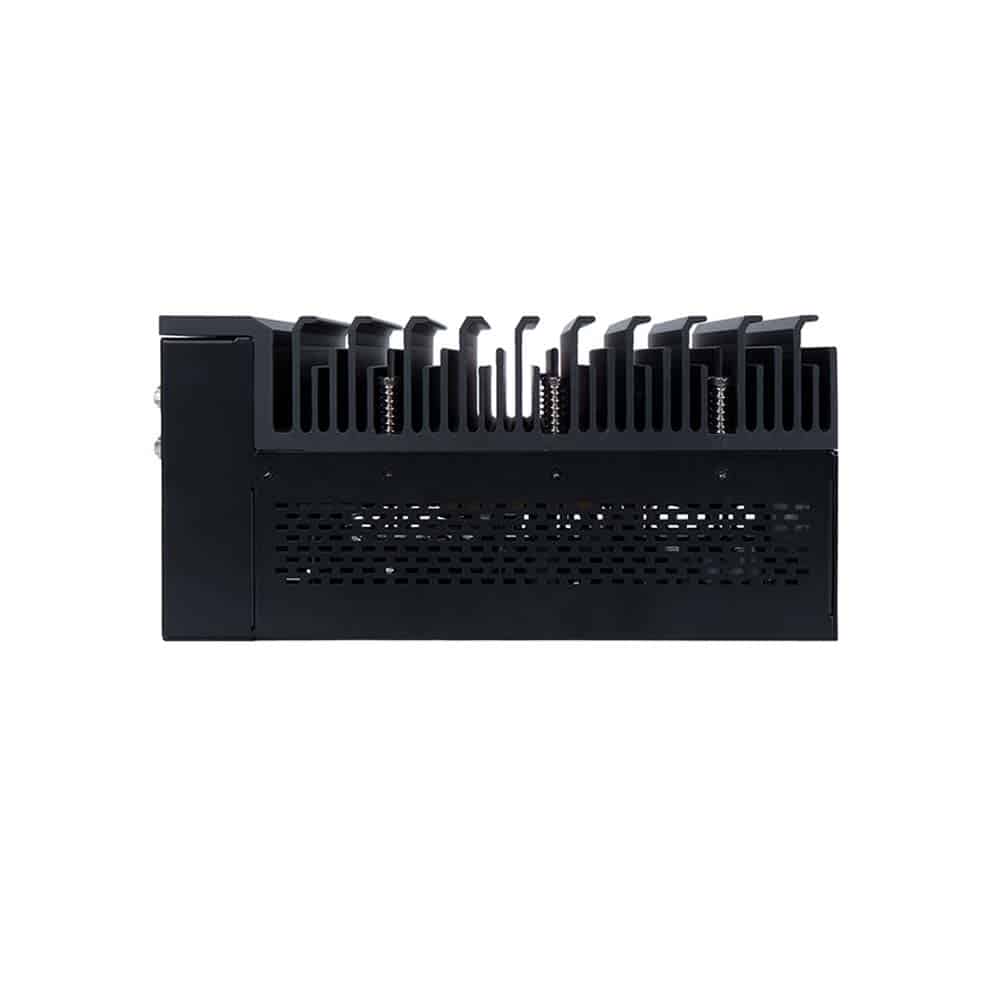

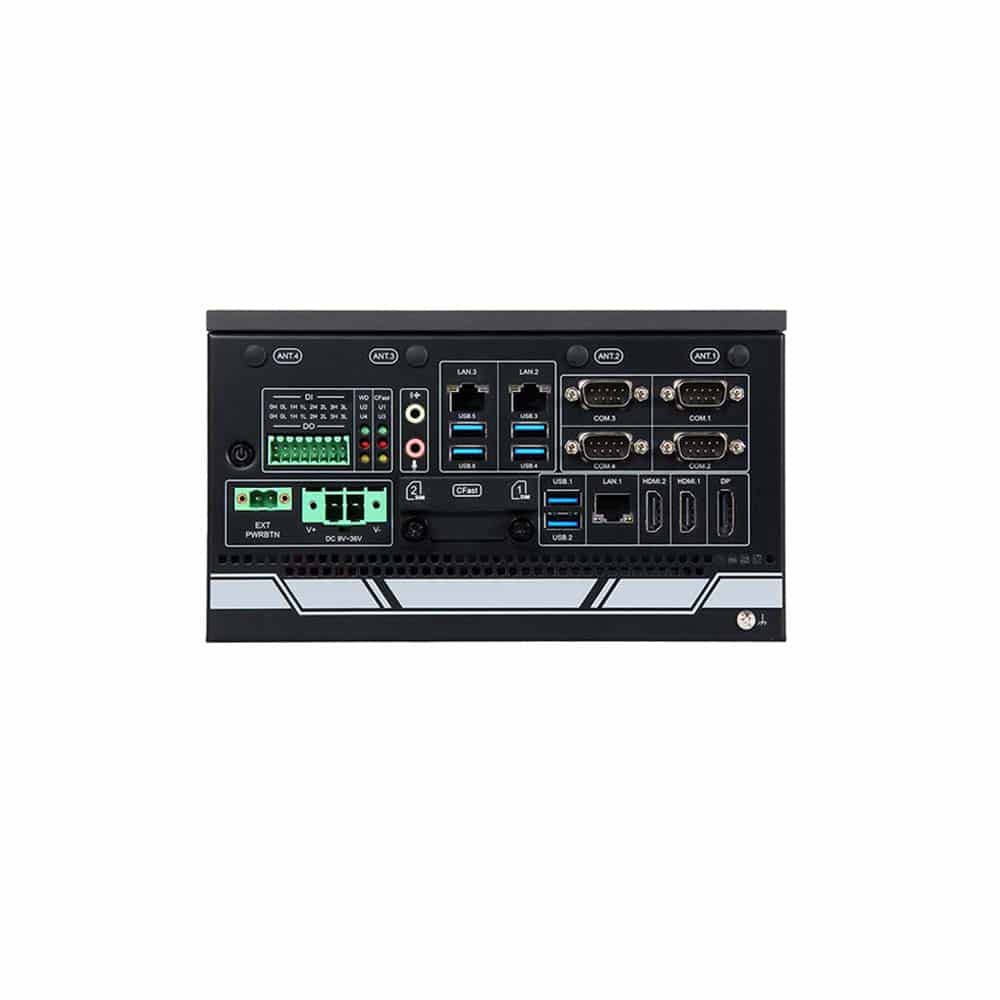

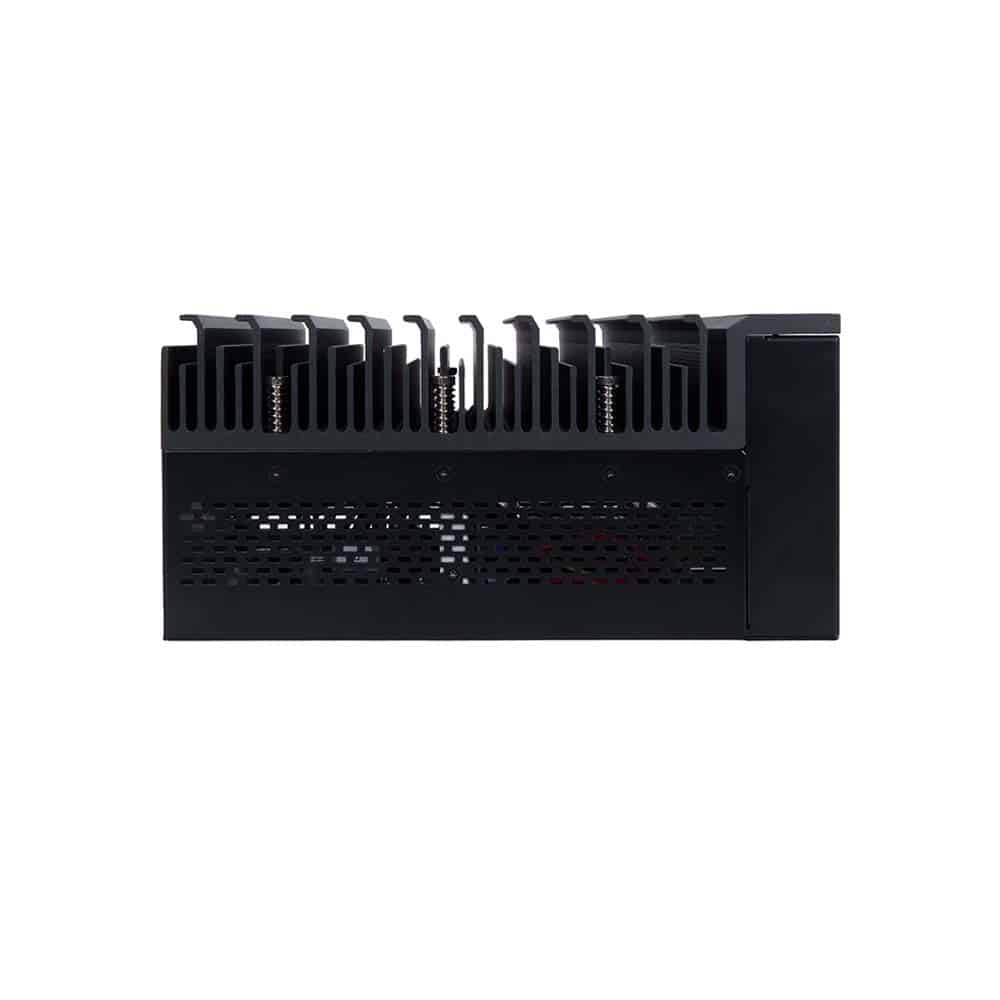

WEBS-85H1
Embedded Rugged Fan-less System with 10th Generation Intel® Xeon® / Core™ i3/i5/i7/i9 based Proprietary Board
- Support 10 th Generation Intel ® Xeon ® / Core™ i3/i5/i7/i9 processors
- 2x SO-DIMM, Support DDR4 2666/2933 MHz SO-DIMM. up 64 GB ( ECC / Non- ECC)
- Support triple displays including HDMI ® 1.4, HDMI ® 2.0, DP
- Support Mini-PCIe socket, M.2 2242/60/80 M-key socket and M.2 2230 E-key socket
- Support 4x COM ports ( 1x RS- 232/422/485, CANbus (2.0 A/B) selected by on board jumper)
- 4 x Antenna hole for WiFi and 4G/GPS module to use
- Onboard TPM 2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | Proprietary |
|---|---|
| CPU | 10 th Generation Intel ® Xeon ® / Core™ i3/i5/i7/i9 Processors (35W TDP) |
| BIOS | AMI UEFI BIOS |
| Memory | 2x SO-DIMM, Support DDR4 2666/2933 MHz SO-DIMM. up 64 GB ( ECC / Non- ECC) |
| Storage | -1x Type II CFast slot -2x 2.5” SSD slots |
| Watchdog Timer | HW WDT Enable (WDT_EN) |
| TPM | TPM 2.0 |
| H/W Status Monitor | System monitor (Voltage, Temperature) |
| Expansion | -1x Mini PCIe socket (supports mSATA or cellular module) ~1x M.2 2242/60/80 M key socket (PCIe x4 & SATA mode) ~1x M.2 2230 E key socket (supports CNVi, Wi-Fi/BT module) |
| Serial Port | 4x COM port (1x RS-232/422/485, CANbus (2.0A/B) selected by on board jumper) |
| Display | -1x HDMI ® 2.0, supports up to4096 x 2160 @ 60 Hz -1x HDMI ® 1.4, supports up to4096 x 2160 @ 30 Hz -1x DP 1.2, supports up to4096 x 2304 @ 60 Hz |
| USB | -2x USB 3.2 Gen 2 ~4x USB 3.2 Gen 1 |
| Audio | Mic-in / Line-Out |
| Ethernet | 3x Gigabit Ethernet (Intel ® I210-IT ) |
| DIO | 4x DI,4 x DO |
| SIM | 2x nano SIM card slot |
| Power Input | 9 to 36 VDC, 2-pin terminal block connector |
| Operation Temperature | -20 °C ~ 60 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Relative Humidity | 60 °C, 95%RH non-condensing |
| Operation Vibration | Desk mount: 0.5 Grms (10 Hz to 500Hz) System: 1Grms (10 Hz to 500Hz) |
| Operation Shock | Desk mount: 15G, 11 msec System: 50G, 11 msec |
| Dimension | 210(W) x 250(D) x 119.7(H) mm |
| Weight | 4.5 Kg |
| Mounting | Desk mount |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| WEBS-85H1 | BIOS 10800PW02 | 7.75 MB | download – WEBS-85H1 | BIOS 10800PW02 |
| WEBS-85H1 | Datasheet | 386.59 KB | download – WEBS-85H1 | Datasheet |
