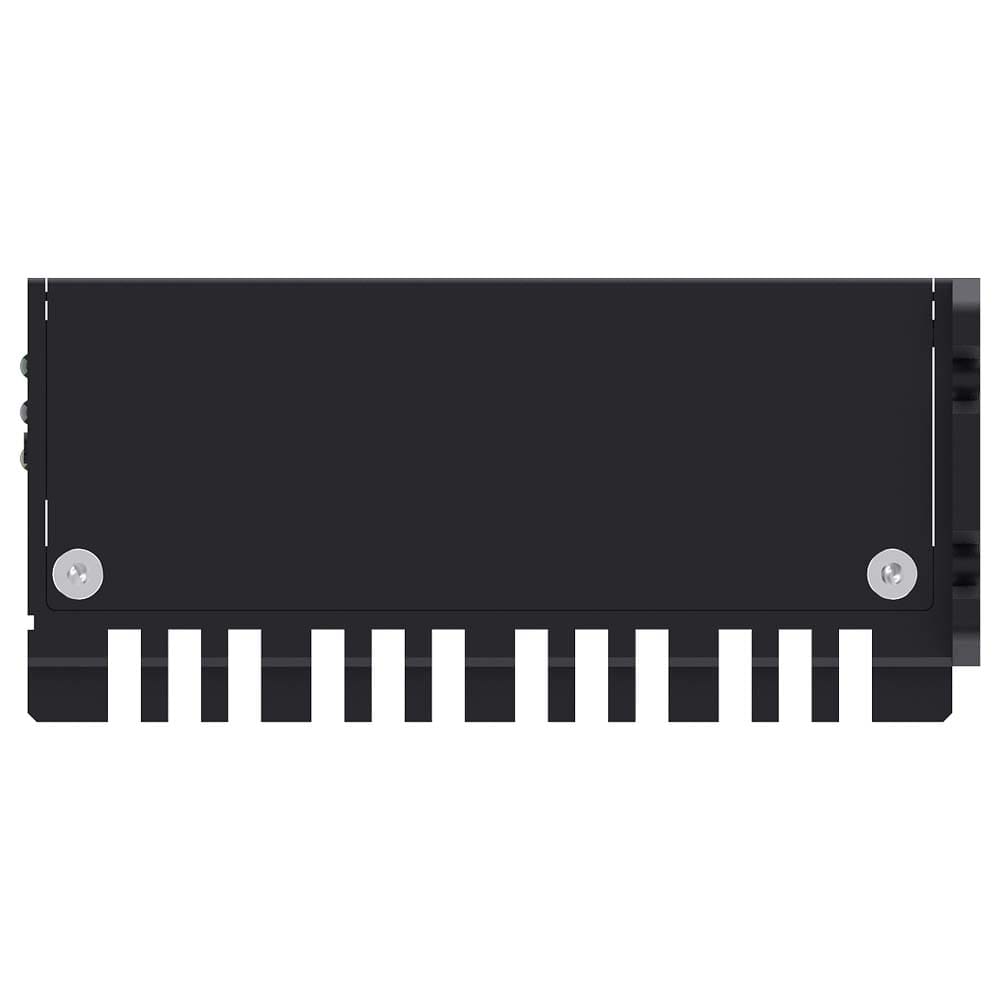

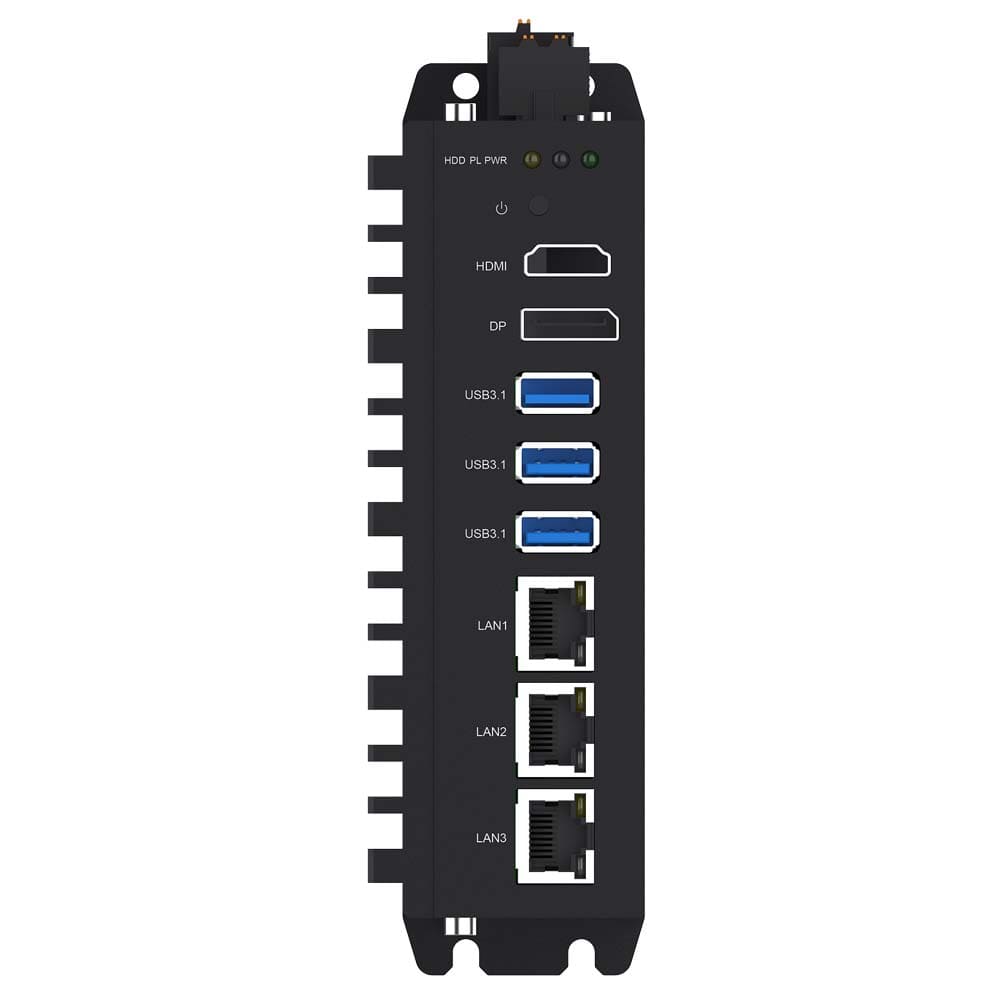

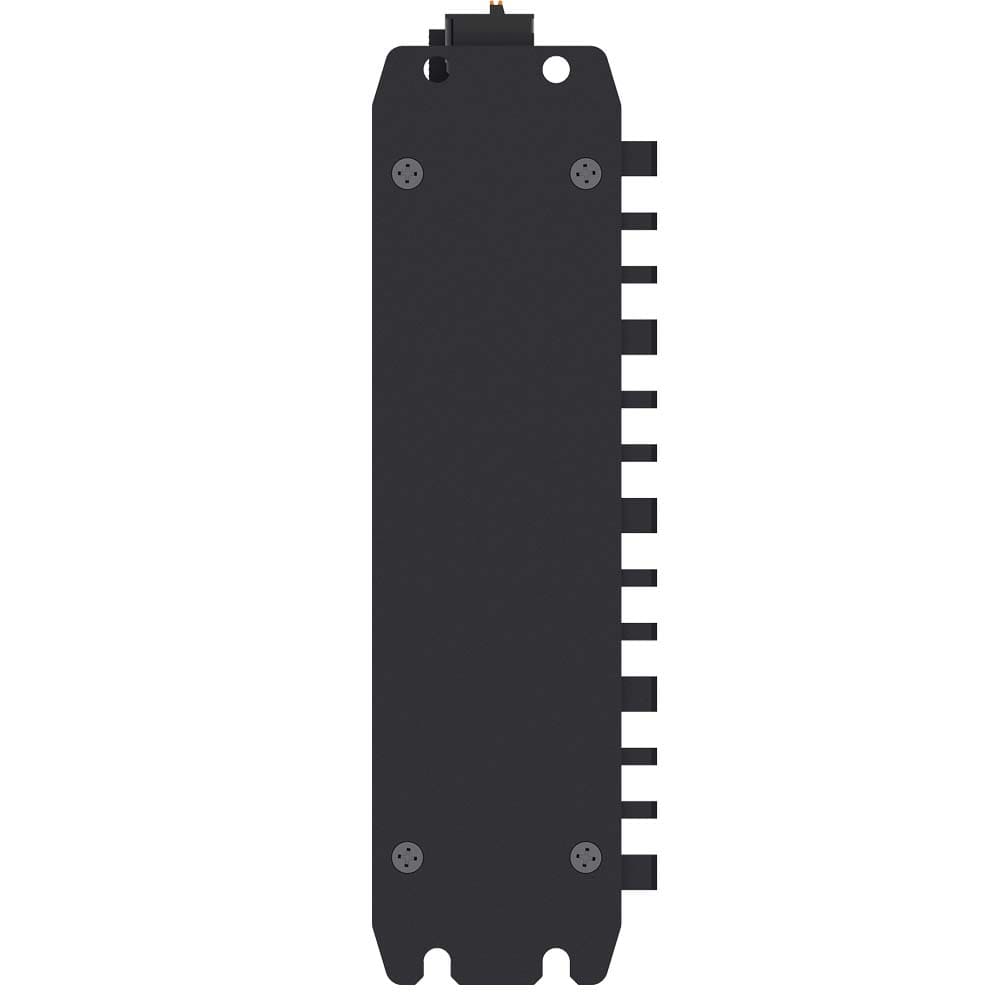

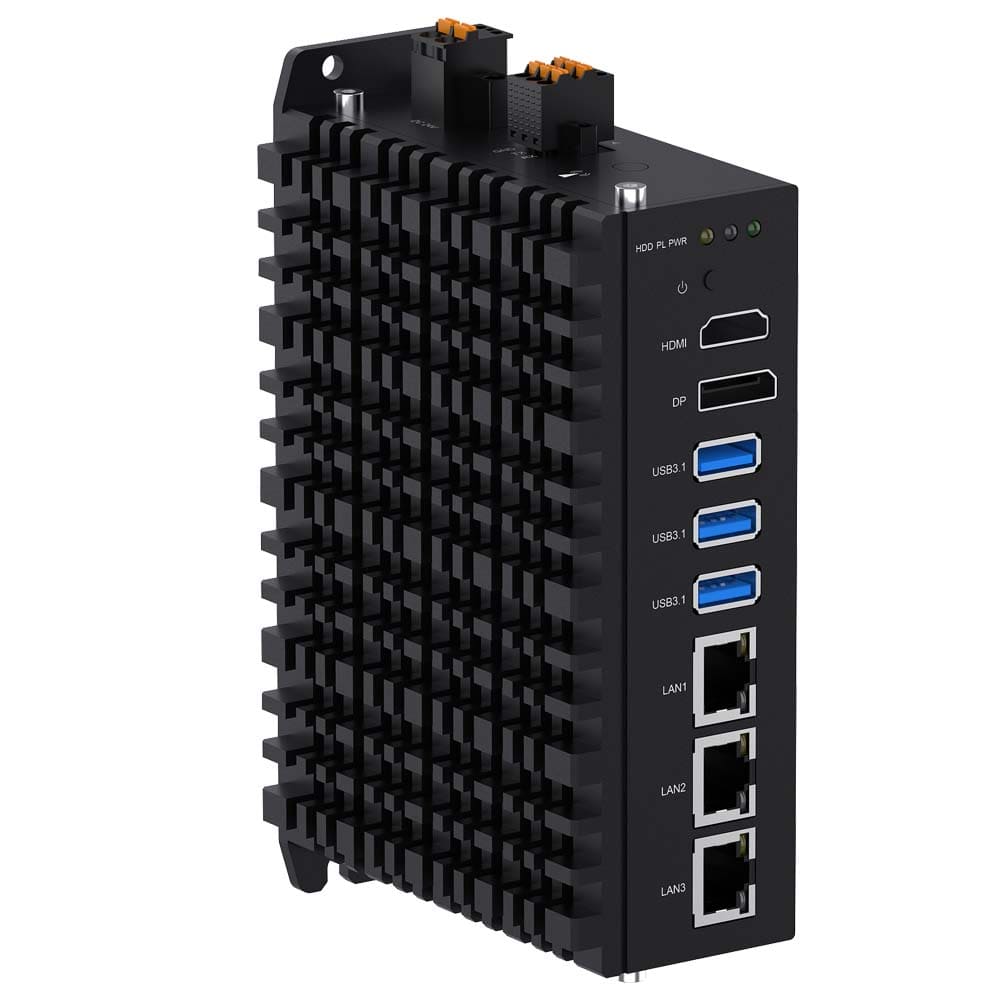

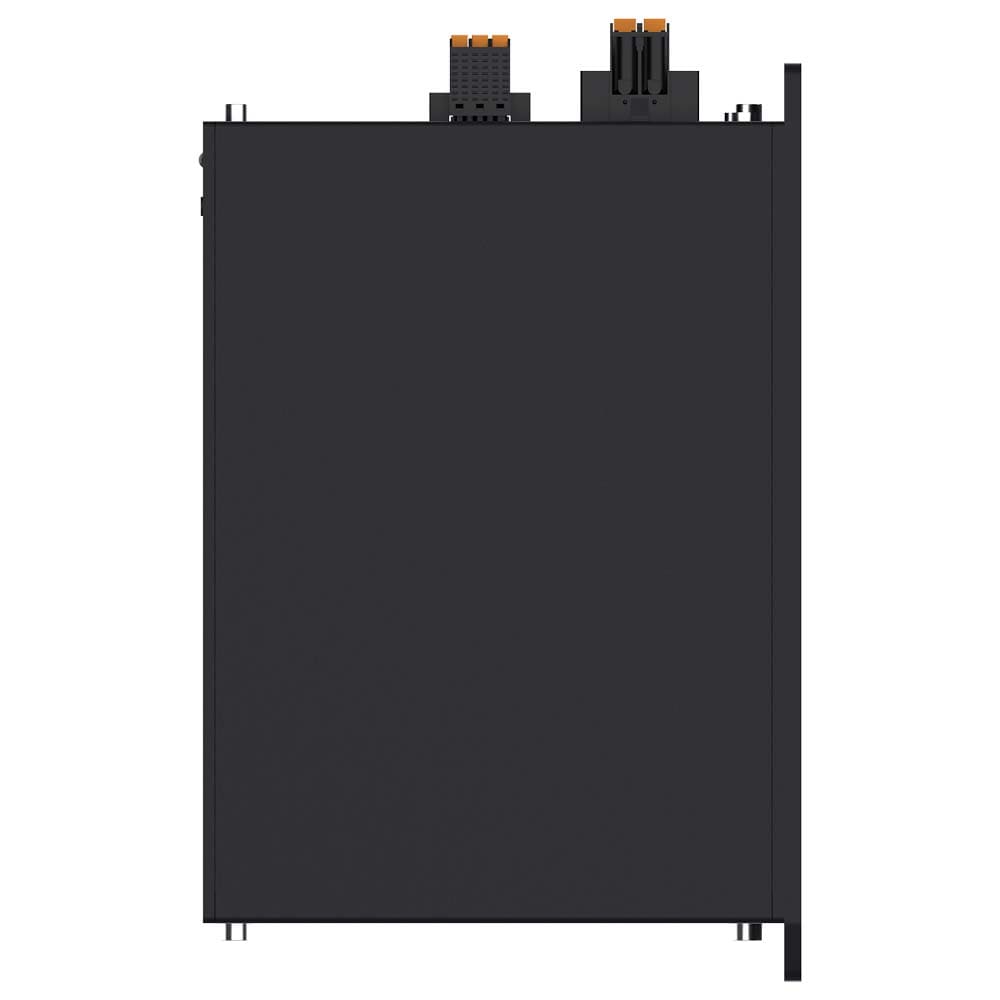

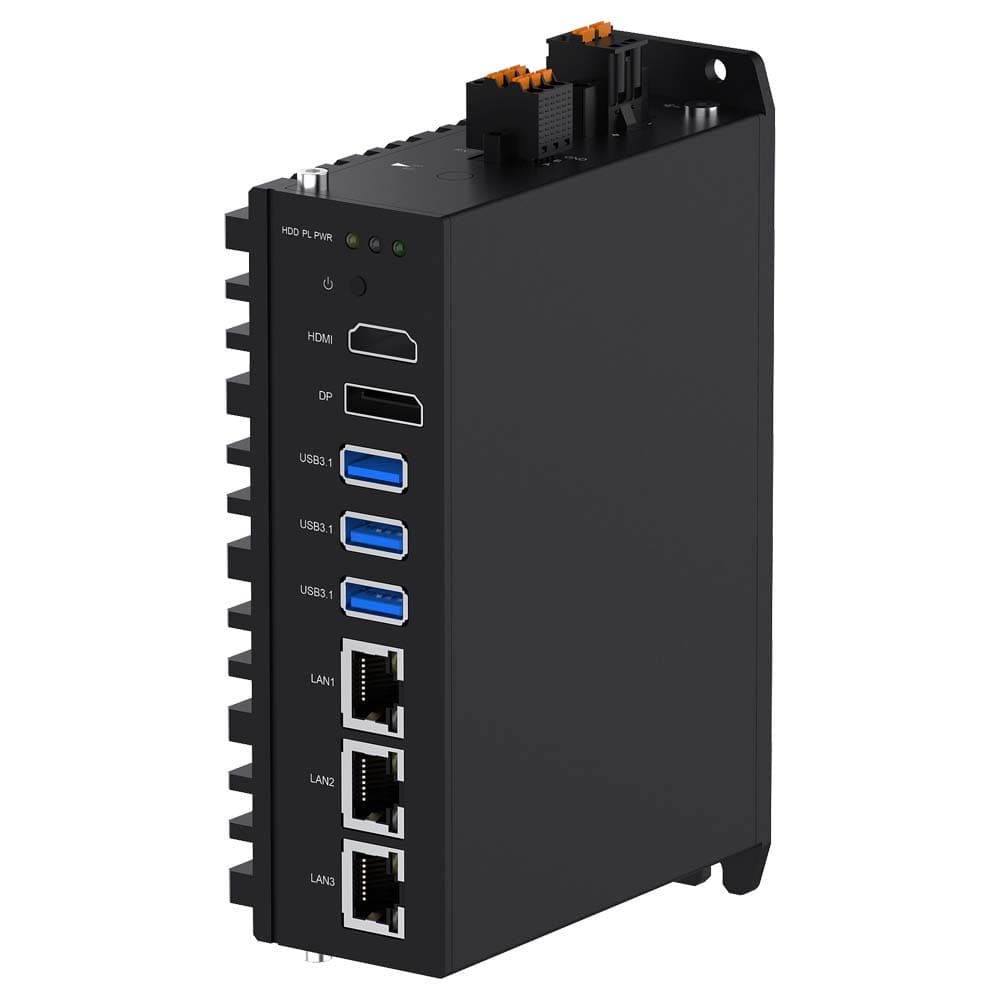

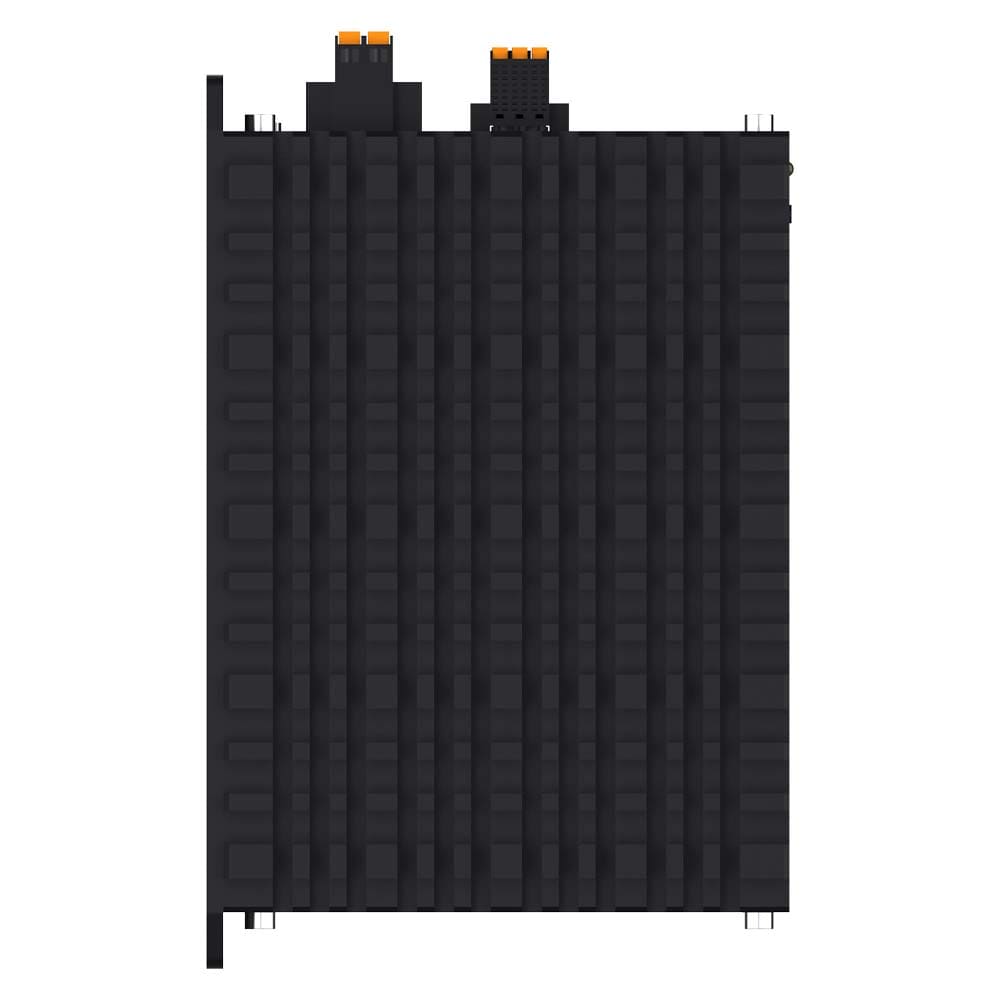

WEBS-89I0
Embedded Rugged Fan-less System with Intel® Celeron® WEBS-89I0 J6412 SoC based proprietary board.
- Fanless platform to support wide operating temperature -20 ~ 60°C with Intel ® Celeron ® J6412 SoC
- 1x SO-DIMM DDR4-3200MHz up to 32GB
- 3x RJ45 GbE

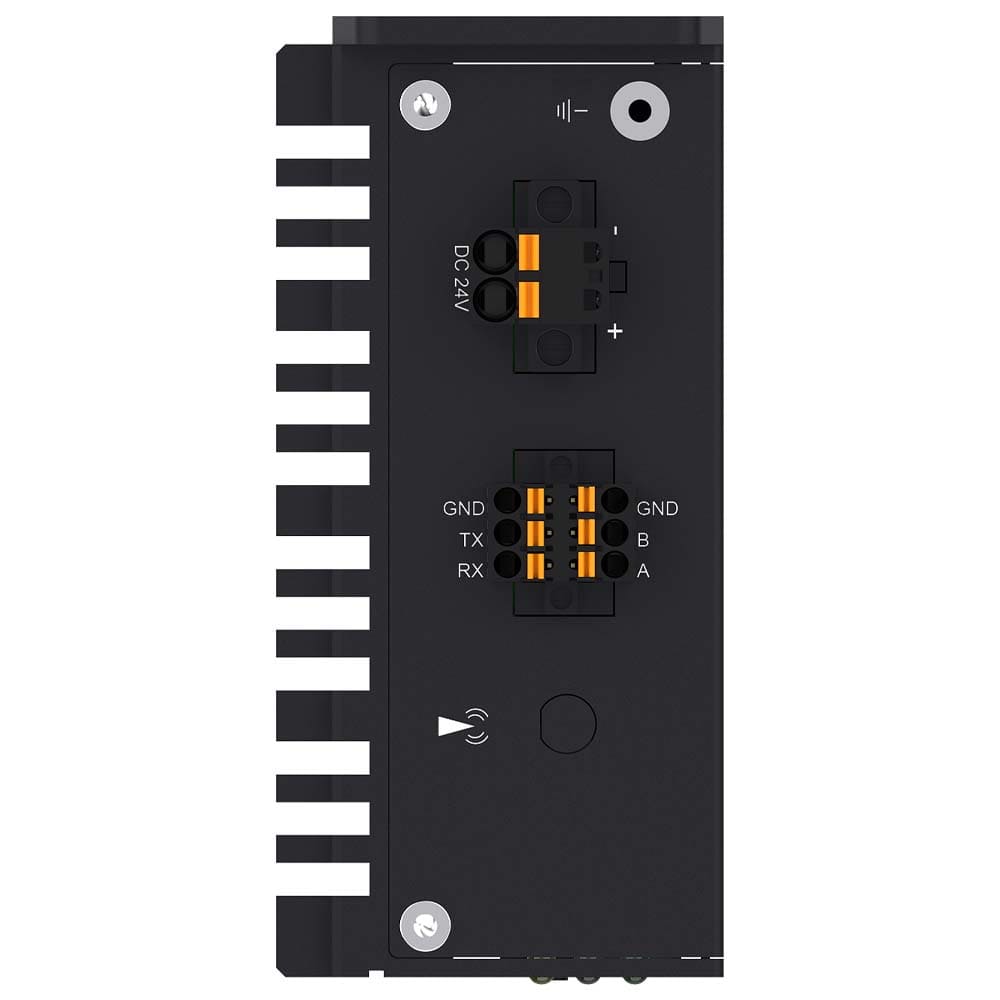

- 1x RS-232 and 1x RS-485 supported
- 1x M.2 2242 for SSD and 1x miniPCIe for Wi-Fi/4G options
- Optional pre-assembled with Hailo-8R Mini PCIe AI Accelerator Module
- Compact, Fanless, Wide-Temp Design – Saves space, improves reliability, enables silent operation, and adapts to harsh industrial environments.
- Three Network Ports – 3GbE – Meets multi-network segment requirements of industrial control, provides bandwidth redundancy and overall traffic needs.
- Dual HD Display – Improves multitasking efficiency and workflows, suitable for diverse applications.
- Rich Wireless Expandability – Supports 5G and Wi-Fi 6 for high-speed and stable wireless connections to meet current and future device requirements.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Intel ® Celeron ® J6412 |
|---|---|
| BIOS | AMI uEFI BIOS |
| Memory | 1x non-ECC DDR4-3200MHz SO-DIMM up to 32GB |
| Storage | 1x M.2 2242 SSD |
| Watchdog Timer | 1 ~ 255 levels programmable Watchdog Timer |
| Expansion | 1x Full-size miniPCIe slot with SIM card holder (USB signal) |
| Serial Port | 1x RS-232 and1x RS-485 |
| Display | 1x HDMI ® (3840×2160@60Hz) and1x DP (4096×2160@60Hz) |
| USB | 3x USB 3.1 ports |
| Ethernet | 3x RJ45 GbE connectors (Intel ® ) |
| Power Input | DC 12 ~ 24V input, max. 45W |
| Operating Temperature | -20 °C ~ 60 °C (-4 °F ~ 140 °F) |
| Storage Temperature | -40 °C ~ 80 °C (-40 °F ~ 176 °F) |
| Relative Humidity | 95%@40 °C, non-condensing |
| Operation Vibration | 1.5Grms/5-500Hz, IEC 60068-2-64 |
| Operation Shock | 20G, 11 msec, IEC 60068-2-27 |
| Dimension | 138 (W) x 102 (D) x 48 (H) mm (5.43" x 4.02" x 1.89") |
| Weight | 1.06 kg (2.33 lbs) |
| Mounting | Wall, DIN-rail mounting |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| WEBS-89I0 | User Manual | 714.05 KB | download – WEBS-89I0 | User Manual |
| WEBS-89I0 | BIOS portwell_M2 | 6.22 MB | download – WEBS-89I0 | BIOS portwell_M2 |
