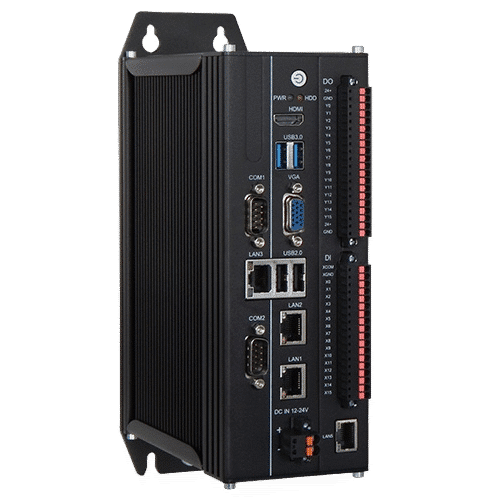

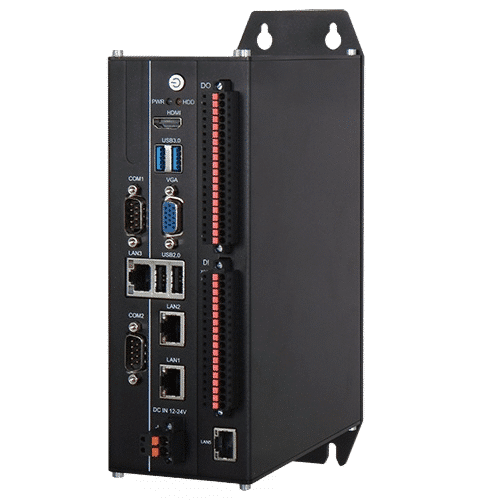

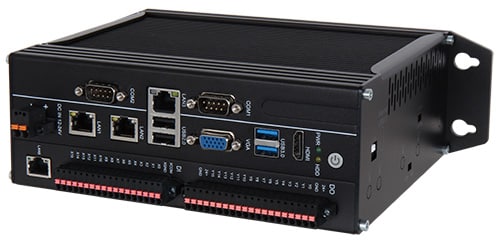

WEBS-89I1
Embedded Rugged Fan-less System with Intel Celeron® J6412 SoC, 2x PoE LAN and 16x DI + 16x DO support
- Fanless platform to support wide operating temperature -20 ~ 60°C with Intel ® Celeron ® J6412 SoC
- 1x SODIMM DDR4-2400MHz up to 32GB
- 3x RJ45 GbE Ethernet ports including 2x PoE support
- 1x RS-232 and 1x RS-232/485 selectable by switch
- 1x mini PCIe for Wi-Fi/4G options
- Support 16x DI NPN/PNP and 16x DO NPN/PNP with Imax. 500mA
Platform Overview
About this series
Embedded Rugged Fan-less System with Intel Celeron® J6412 SoC, 2x PoE LAN and 16x DI + 16x DO support
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Intel ® Celeron ® J6412 |
|---|---|
| BIOS | AMI uEFI BIOS |
| Memory | 1x non-ECC DDR4 2400MT/s SO-DIMM up to 32GB |
| Storage | 1x mSATA |
| Watchdog Timer | 1 ~ 255 levels programmable Watchdog Timer |
| Expansion | 1x Full-size miniPCIe slot with SIM card holder (USB signal) |
| Operation Temperature | -20 °C ~ 60 °C (-4 °F ~ 40 °F) |
| Storage Temperature | -40 °C ~ 80 °C (-40 °F ~ 176 °F) |
| Relative Humidity | 40 °C, 95%RH non-condensing |
| Operation Vibration | 1.5Grms/5 ~ 500Hz, IEC 60068-2-64 |
| Operation Shock | 20G, 11 msec, IEC 60068-2-27 |
| Dimension | 200 (W) × 154.5 (D) × 74.6 (H) mm |
| Weight | 2.15 Kg |
| Mounting | Wall, DIN-rail mounting |
| Serial Port | 1x RS-232/485 port (selectable via switch)1x RS-232 |
| Display | 1x HDMI ® (3840×2160@60Hz)1x VGA (1920×1080@60Hz) |
| USB | 2x USB 3.0 ports2x USB 2.0 ports1x internal USB 2.0 Type A on-board |
| Ethernet | 2x RJ45 PoE GbE connectors (Intel ® )1x RJ45 connector (Intel ® ) |
| DIDO | 16x DI NPN/PNP16x DO NPN/PNP, Imax. 500mA |
| Power Input | DC 12 ~ 24V input, max. 90W |
