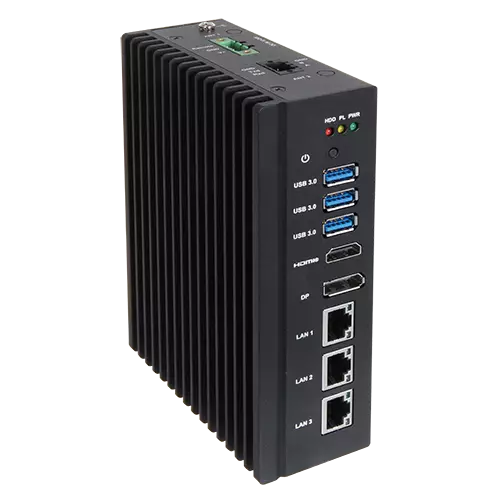

WEBS-91J0
Powered by Intel® Processor N / Intel® Atom® x7000RE Series processors, WEBS-91J0 features rich I/O,12~24V DC in, and M.2/mini-PCIe/Micro SIM expansion to meet diverse connectivity and storage needs.
- Fanless System with Intel ® Processor N Series / Intel Atom ® x7000RE Series CPU
- 3 x USB3.2 Gen1, 3x RJ45 1GbE, 1x HDMI ® and 1x DP connector
- 1 x SO-DIMM socket support DDR4 3200MHz up to 32GB
- 1x M.2 B Key 2242/3042/3052 for storage / 5G module / AI module
- Support 12~24V Wide-Range DC Input with 3-pin Terminal Block
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Sys Form Factor | Proprietary |
|---|---|
| Processor | Intel Atom ® x7433RE, 4 cores, 9 W Intel Atom ® x7835RE, 8 cores, 12 W Intel ® Processor N150, 4 cores, 6W Intel ® Core™ i3 N355, 8 cores, 15 W |
| Chipset | Intel ® SoC |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 32GB DDR4 3200 MT/s on 1 SODIMM |
| Storage | 1 x M.2 Key-B SATA / NVMe PCIe x2 2242/3042/30521 x mSATA Full & Half Size |
| AI Accelerator | (optional) Hailo Hailo-8 (M.2 Key B+M) |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Ethernet | 3 x 1 GbE LAN w/ Intel ® WGI210AT / IT |
| Serial Port | 1 x Terminal Block Support RS-232 + RS-485 |
| USB | 3 x USB 3.2 Gen1 x1 (5Gbps) Type A |
| Display | 1 x HDMI ® 1.41 x DP 1.2 |
| Other | Power Button |
| LED | Power, Storage, Programmable LED |
| Antenna | 6 x SMA Antenna holes for 5G / LTE / Wi-Fi |
| SIM Slots | 1 x Micro-SIM |
| M.2 | 1 x B Key w/ 2242/3042/3052 PCIe x2 or SATA III for LTE/storage/AI |
| Security | TPM 2.0 (Default) |
| Mini-PCIe | 1 x half / full-size mini-PCIe with PCIe and USB2.0 or SATA |
| Dimension (WxDxH) | 152 x112 x 48 mm (5.98" x 4.41" x 1.89" ) |
| Weight | 1.0 kg |
| Mounting | DIN Rail, Wall Mount |
| Cooling | Fanless |
| Power Supply | Terminal Block 12 ~ 24V |
| Vibration | 1.5G 5 ~ 500Hz with Wall mount (IEC/EN 60068-2-6) |
| Shock | 20G 11m sec with Wall mount (IEC/EN 60068-2-27) |
| Portwell Special Feature | PET |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) for Intel ® Processor N Series -40 ~ 60 °C (-40.0 ~ 140.0 °F) for Intel Atom ® x7000RE Series |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC Class B |
| OS | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux™ |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3731 | WEBS-91J0 ATO | Proprietary Fan-less System.PEBW-2770. Amston and Twin Lake. | add to list – WEBS-91J0 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WEBS-91J0 | Datasheet | 553.95 KB | download – WEBS-91J0 | Datasheet |
Explore Our products
More in this category
Compact

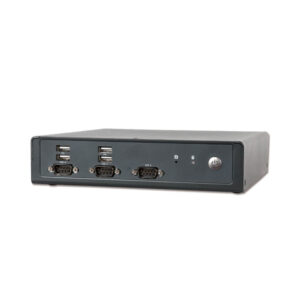

RICH-33B0-8171
