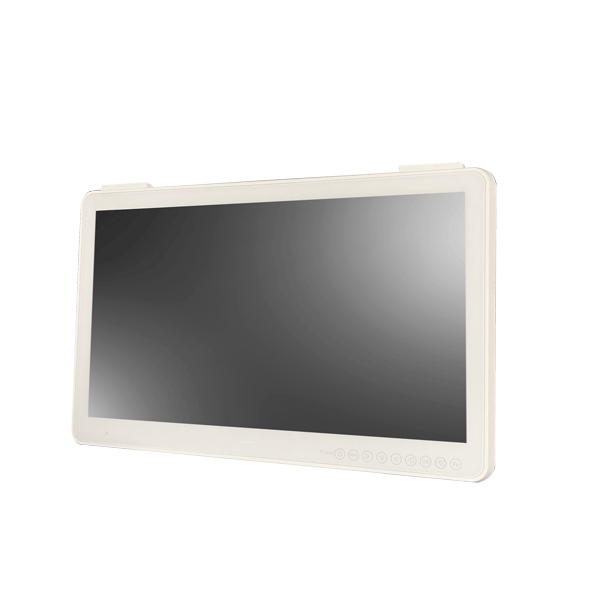

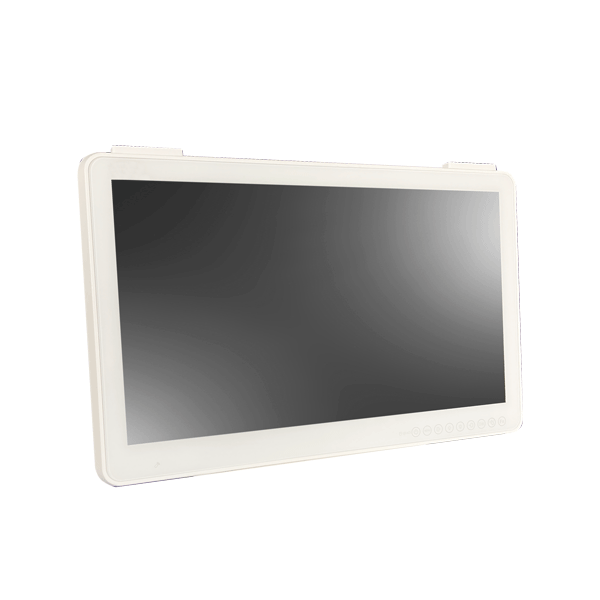

WMP-22T-PIS
Medical Grade MDR Ready / 22″ / Intel® 12th–13th Gen Core™ i (H Series) / Fanless / HDMI® Video-In / Windows 11 & fTPM
- Intel ® 12th / 13th generation Core i CPU (H series)
- Anti-bacteria Aluminum Housing
- 21.5″ FHD AHVA Diagnostic Panel
- IP65 at front, Rear IP54 protection with cable cover attached
- Optional 4K capture card
- LAN/COM 4KV Isolated Module
- Power Supply Inside
- Supports Dual Channel DDR5 SODIMM
- Fast booting with M.2 M Key 2280 PCIe X 4 SSD (Support NVMe SSD) as drive disk
- Fanless solution
- Watch Dog Timer (WDT)
- Defaulted OS Recovery
- Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and six side IP65 with I.O. cover making it easy to clean and disinfect.
- Global Latest UL/cUL 60601-1 (MDR) and IEC60601-1 Medical Certifications Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
- 12th Gen Intel ® Core™ CPU Our medical panel pcs offer the Alder Lake 12th generation Intel ® Core i3/i5/i7 processor series. Other features listed below: Support Intel ® Vpro Technology by CPU suit for intelligent remote control SW management, FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs. 23.8″ FHD MVA/AHVA Diagnostic Panel Optional Full HD Capture Card & HDMI ® Video-In LAN/COM 4KV Isolated Module Power Adapter Inside for WMP-24M-PIS Optional DICOM Part 14 Compliance Solution Support Windows 11 & fTPM Optional Internal UPS Battery pack (WMP-24M)
- Support Intel ® Vpro Technology by CPU suit for intelligent remote control SW management,
- FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
- 23.8″ FHD MVA/AHVA Diagnostic Panel
- Optional Full HD Capture Card & HDMI ® Video-In
- LAN/COM 4KV Isolated Module
- Power Adapter Inside for WMP-24M-PIS
- Optional DICOM Part 14 Compliance Solution
- Support Windows 11 & fTPM
- Optional Internal UPS Battery pack (WMP-24M)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Model | WMP-22T-PIS IP0A (STD) | WMP-22T-PIS IP0B (ISO) |
|---|---|---|
| CPU / Chipset | FCBGA1744 12th / 13th generation Intel ® Core i7/i5/i3 and Celeron processor (35W max.)/ Soc | |
| Graphic | Intel ® Iris Xe Graphics (i7/i5 CPU) / Intel ® UHD Graphics (i3 CPU) | |
| RAM | Two 4800 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB | |
| OS Support | Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise GAC 64 bit | |
| Storage | 1 x M.2 (M Key, 2280) with PCIe x4 for SSD1 x 2.5” SATA3 HDD/SSD drive bay | |
| Expansion | 1 x PCI-E x8 expansion slot (PCI-E x4 Signal)1 x M.2 E key 2230 | |
| Display Size | 21.5” 16:9 | |
| Display | 1920 x 1080 (Full HD), 16.7M colors 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000 : 1 (Typ) | |
| Touch Screen | Full flat projective capacitive touch panel / Light Transmission: >85% / Hardness: 6H pencil, pressure 765g/45° / Life: ≥50,000 times I.O. Ports | |

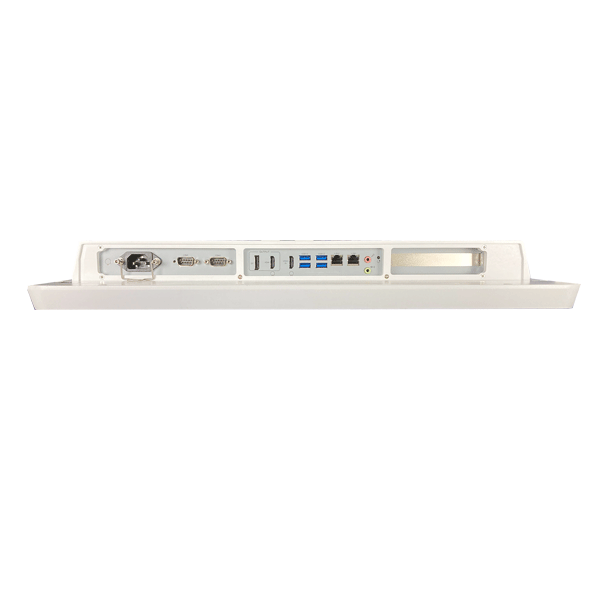

| USB | 4 x USB 3.2 gen 2 | 4 x USB 3.2 gen 2 |
| COM | 1 x RS232,1 x RS232/RS422/RS485 | 1 x ISO RS232/RS422/RS485 |
| LAN | 1 x RJ45 1Gbps Intel ® I219LM (AMT/Vpro)1 x RJ45 2.5Gbps Intel ® I226V | 1 x RJ45 1Gbps Intel ® I219LM (AMT/Vpro)1 x RJ45 2.5Gbps Intel ® I226V1 x ISO RJ45 1Gbps |
| Audio | 3.5mm phone jack connector x 2 (Line-out, Mic-In) ; Waterproof2 x 2W speaker | |
| Video Out | 1 x DP 1.4a / DP++,1 x HDMI ® 2.0b | |
| Video In | 1 x HDMI ® -in (without audio); Support in S5 mode | |
| Control Hot Key (L to R) | Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In LCD On/Off; Clean Me; Programmable Function Mechanical and Environmental | |
| Power Adapter | AC input 100 ~ 240V / 47 ~ 63 Hz, DC output 24V 250W (MBU-250-108) | |
| Temperature | Operating Temperature: 0 ~ 35℃ (IEC60068-2-78) / Storage Temperature: -20 ~ 60℃ | |
| Humidity | Operating & Storage:10 ~ 90%, non-condensing | |
| IP Rating | Front: IP65, Rear: IP54 with cable cover attached | |
| Housing | Rear: Aluminum Alloy Body / White (Touch) | |
| Dimensions (Net) | 549.1mm (H) x 347.1mm (V) x 68mm (T) | |
| Weights (Net) | 9.2 kg | |
| Cooling | Fanless | |

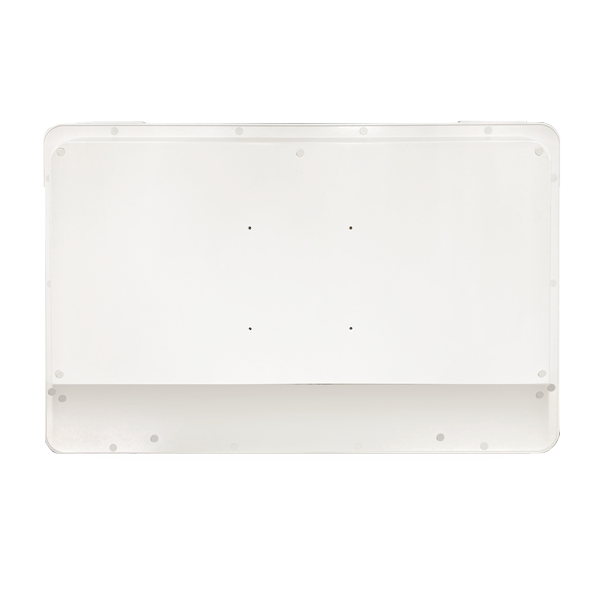

| Mounting | VESA100 x 100 | |
| Certification | CE: EN 60601-1-2:2015(V4.1) EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 (By project) cUL: CAN/CSA-C22.2 No. 60601-1:14 (By project) ISO 14971 | |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WMP-22T-PIS | Datasheet | 339.30 KB | download – WMP-22T-PIS | Datasheet |
