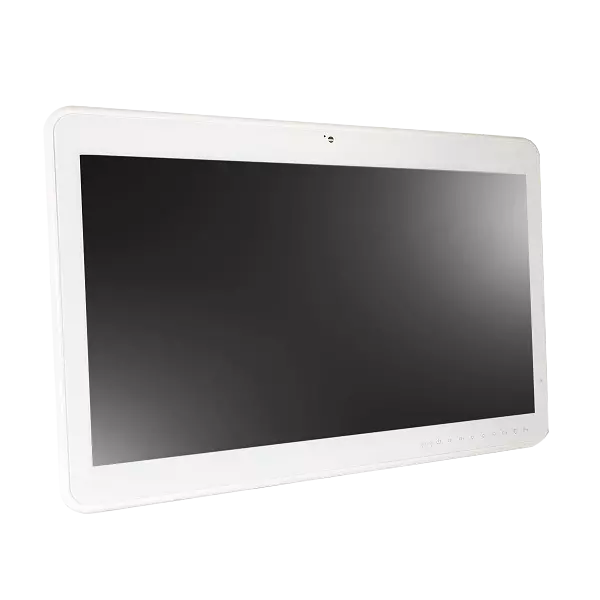

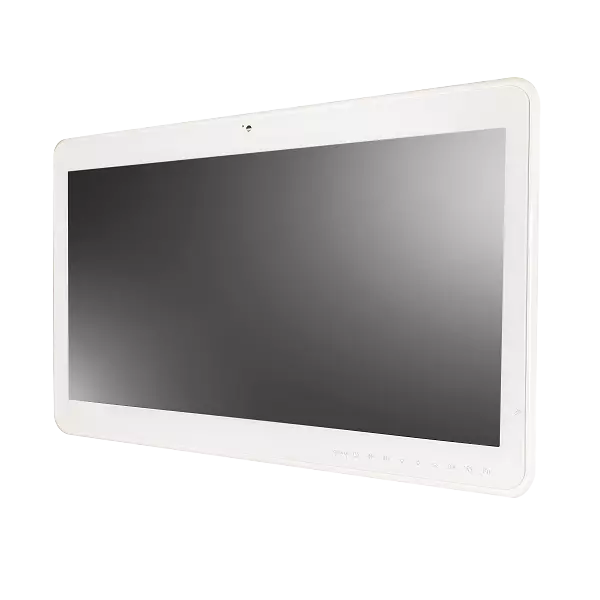

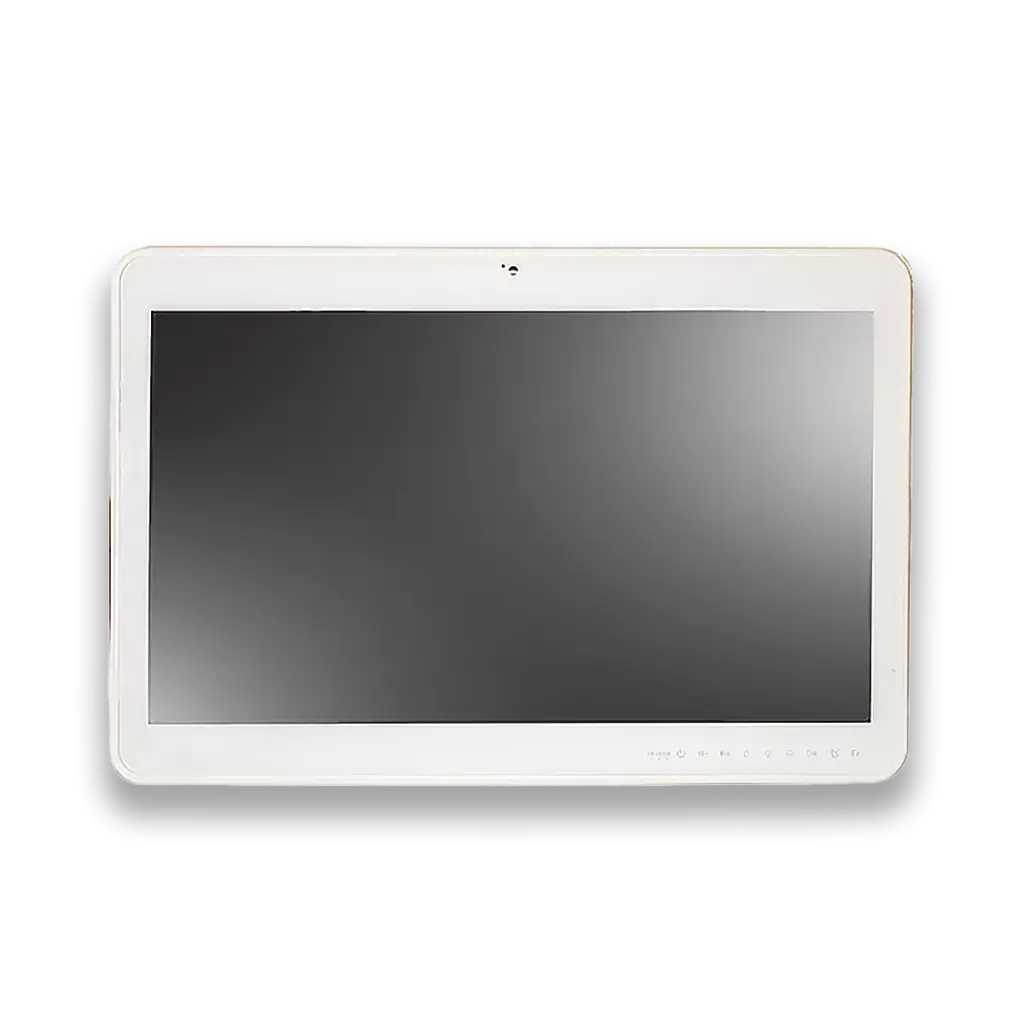

WMP-24P-IP54
Raptor Lake 24″
- Mobile Intel ® 12th/13th Core CPU (U series)
- The newest regulation EMC V4.1 & Safety V3.2
- 23.8″ FHD AHVA Diagnostic Panel w/ P-Cap Multi-Touch
- Optional UPS Battery x 1
- IP54 Rear w/Full Sealed Upside Housing Sku
- Fanless Design with Reliable Thermal Solution
- Dual storage M.2 SSD & 2.5” drive
- Hospital White Plastic Housing w/ Anti-bacteria Treatment
- 4KV Isolated I/O kit, More Options for Diversified Applications
- Support PCIex4 Expansion Slot
- Optional DICOM Part 14 Module
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Model | WMP 24P IP54 IP0P (STD) | WMP 24P IP54 IP0B (ISO) |
|---|---|---|
| CPU / Chipset | FCBGA1744 Intel ® 12th / 13th Gen. Core i7/i5/i3 & Celeron Processor (15W Max.) / SoC | |
| Graphic | Intel ® Iris Xe Graphics (i7/i5 CPU) / Intel ® UHD Graphics (i3 CPU) | |
| RAM | Two 4800 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 64GB | |
| OS Support | Optional Windows 10 IoT Enterprise LTSC / WIN 11 IoT Enterprise GAC | |
| Storage | 1 x M.2 (M Key 2280) with PCIex4 for SSD,1 x 2.5” SATA3 SSD/HDD drive bay | |
| Expansion | 1 x PCIex4 (25W max.),1 x M.2 E Key | |
| Display Size | 23.8" wide TFT-Color LCD (16:9) | |
| Display | 1920 x 1080 (Full HD), 16.7M colors (Ture 8 bit) 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000: 1 (Typ) | |
| Touch Screen | Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 85% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000 I.O. Ports | |

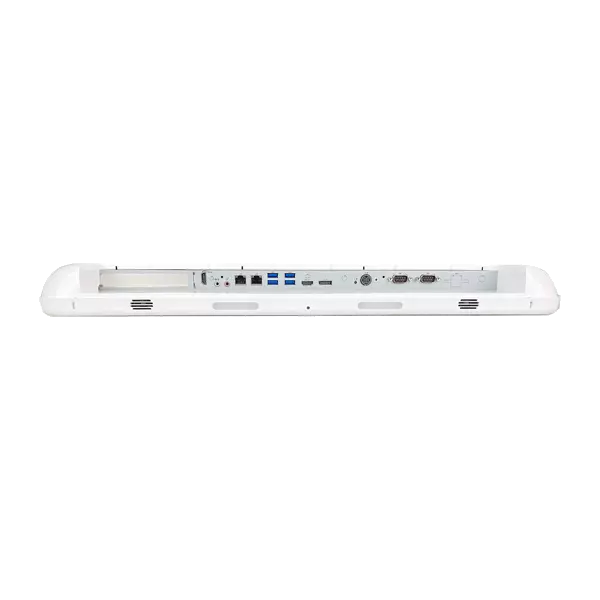

| USB | 4 x USB3.2 | 4 x USB3.2,1 x ISO USB2.0 |
| COM | 1 x RS232/422/4851 x RS232 | 1 x ISO RS232/RS422/RS4851 x ISO RS-232 |
| LAN | 2 x RJ45 (1 x 1.0 Gbps,1 x 2.5 Gbps) | 2 x RJ45(1 x 1.0 Gbps,1 x 2.5 Gbps),1 x ISO RJ45 |
| Reading Light | 2 x Light Bar (at housing bottom side) | |
| Audio/Video | 1 x Line-out &1 x Microphone-in (3.5mm phone jack) /1 x DP1.4a,1 x HDMI2.0,1 x HDMI ® (video-in) | |
| Speakers & Mic. | 2 x 2-watt Speakers & Integrated Microphone (at Housing Bottom Side) | |
| Control Hot Key (R to L) | Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light, LCD Backlight On/Off, Clean Me, Function Key Mechanical and Environmental | |
| Power Input | DC-In x 1, DC 14-24V input | |
| Power Adapter | AC input 100 ~ 240V / 47 ~ 63 Hz / DC output 18V, 100W (Optional 180W) | |
| Temperature | Operating Temperature: 0 ~ 40℃ (Burn-in, not airtight, W/ Battery 0 ~ 35℃) Storage Temperature: -20 ~ 60℃ | |
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing | |
| IP Rating / Housing | Front IP65, Rear IP54 / Front: Full flat design / Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA) Housing | |
| Dimensions (Net) | 594.0mm (H) x 397.0mm (V) x 56.0mm (T) | |
| Weights (Net) | 9.0 kg (w/o power adapter/battery pack) | |

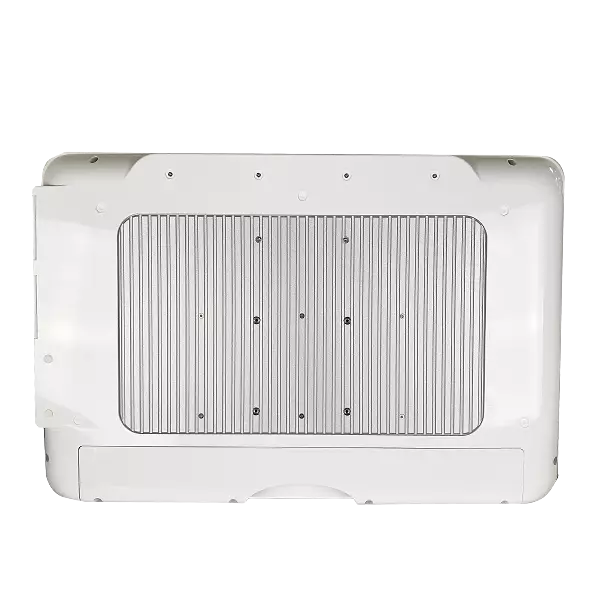

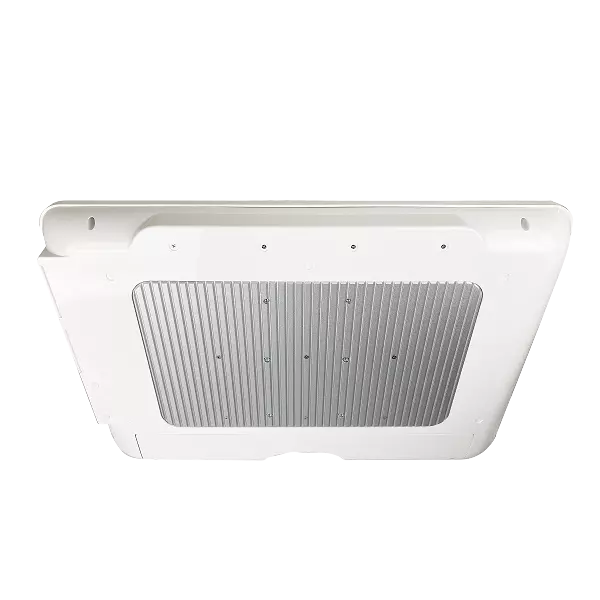

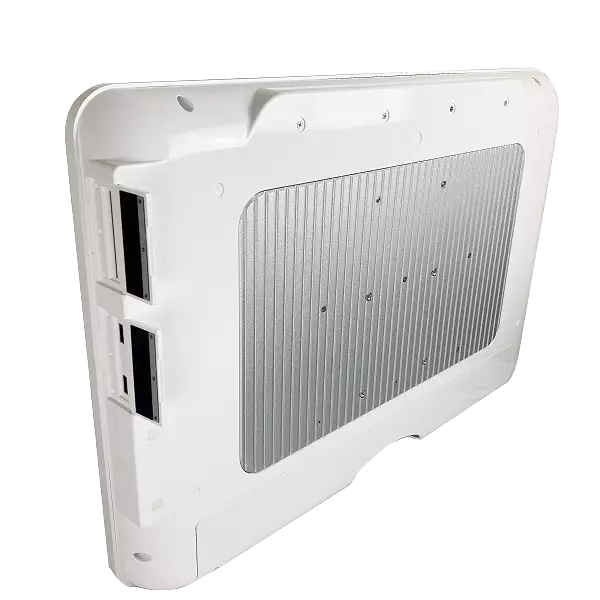

| Cooling | Fanless Design with External Heatsink | |
| Mounting | VESA100 x 100 | |
| Certification | CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1) EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project ISO 14971 / IEC62133 | |
