WMP-24P
Fanless Hot-swappable Batteriesor UPS Battery for IP54 / 23.8″ / Medical Grade / Antimicobial Touch Surface to Housing
- Mobile Intel ® 12 th /13 th generation Core i CPU (U series)
- The newest regulation EN 60601-1: 2006/A2:2021 Compliance

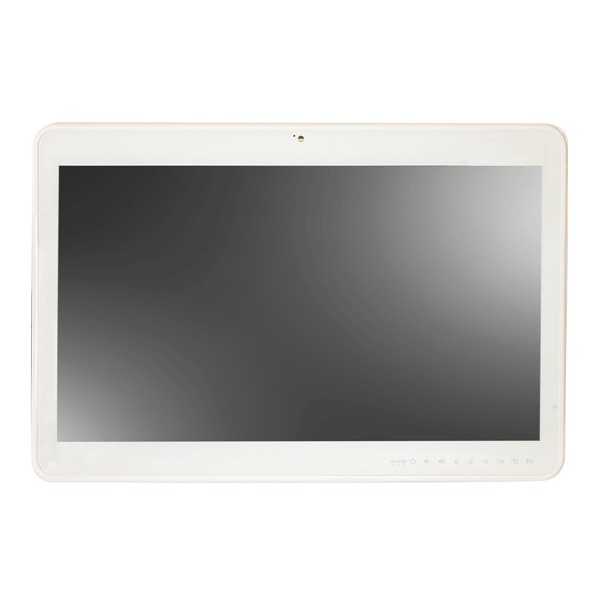

- 23.8″ (1920X1080) MVA Diagnostic Panel w/ P-Cap Multi-Touch

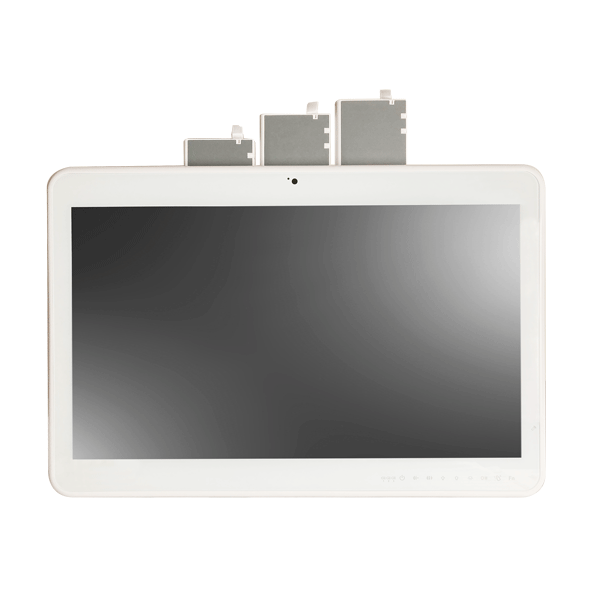

- Optional Hot-Swappable Batteries X3; IP54 rear cover batteries x 1
- Optional IP54 Rear w/Full Sealed Upside Housing Sku
- Fanless Design with Reliable Thermal Solution
- Dual storage M.2 NVMe SSD & 2.5” drive (w/ doggy door)
- Hospital white Plastic Housing with Anti-bacteria Treatment
- Battery Charger Station, 4KV Isolated I/O kit, DICOM GSDF Calibration & More Options for Diversified Applications
- Support PCIex4 Expansion Slot
- Anti-MRSA Housing stands up to Chemical Disinfection These medical cart computers have an special antimicrobial housing, including touch panel, to battle surface contamination (MRSA), an IP65 rated sealed front bezel making it easy to clean and disinfect.
- Global Latest UL/cUL 60601-1 and IEC60601-1 & 60601-1-2 Medical Certifications (MDR) Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
- 12th Gen Intel ® Core™ CPU Our medical cart computers WMP-xxP series offer the 12th generation Intel ® Core™ i3/i5/i7 processor series. Support Intel ® Vpro Technology by CPU suit for intelligent remote control SW management, FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs. 5M Webcam & RFID antenna & TPM 2.0 & Display Interface for up to 2, and HDMI ® Video-In USB 3.2 Gen II X 4, Optional USB X 2 Expansion PCIx4 for Optional Video Capture Card, Vision Acceleration Card Support Optional IP54 for Operating Room Solution Optional Isolated I.O. Configuration Optional Light Sensor for Auto-Dimming to be Friendly During Ward Round Optional DICOM Part 14 Module
- Support Intel ® Vpro Technology by CPU suit for intelligent remote control SW management,
- FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
- 5M Webcam & RFID antenna & TPM 2.0 & Display Interface for up to 2, and HDMI ® Video-In
- USB 3.2 Gen II X 4, Optional USB X 2
- Expansion PCIx4 for Optional Video Capture Card, Vision Acceleration Card Support
- Optional IP54 for Operating Room Solution
- Optional Isolated I.O. Configuration
- Optional Light Sensor for Auto-Dimming to be Friendly During Ward Round
- Optional DICOM Part 14 Module
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Model | WMP 24P IP0A (STD) | WMP 24P IP0P (IP54) | WMP 24P IP0B (ISO) |
|---|---|---|---|
| CPU / Chipset | FCBGA1744 Intel ® 12th/13th Gen. Core i7/i5/i3 & Celeron Processor (15W Max.) / Support Vpro by Core i7/i5 CPU | ||
| Graphic | Intel ® Iris Xe Graphics (i7/i5 CPU) / Intel ® UHD Graphics (i3 CPU) | ||
| RAM | Two 4800 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 64GB | ||
| OS Support | Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise GAC | ||
| Storage | 1 x M.2 (M Key 2280) with PCIex4 for SSD Standard rear cover:2.5” SATA3 HDD/SSD drive bay x 1 with doggy door IP54 rear cover:2.5” SATA3 HDD/SSD drive bay x 1 | ||
| Expansion | 1 x PCIex4 (25W max.),1 x M.2 E Key | ||
| Display Size | 23.8” wide TFT-Color LCD (16:9) | ||
| Display | 1920 x 1080 (Full HD), 16.7M colors (Ture 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000: 1 (Typ) | ||
| Touch Screen | Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 85% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000 I.O. Ports | ||

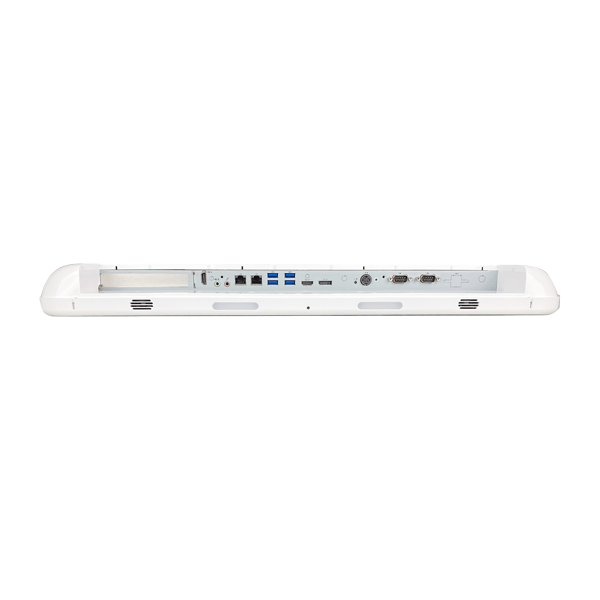

| USB | 4 x USB3.2 gen II | 4 x USB3.2 gen II | 4 x USB3.2 gen II,1 x ISO USB 2.0 |
| COM | 1 x RS232/RS422/RS4851 x RS-232 | 1 x RS232/RS422/RS4851 x RS-232 | 1 x ISO RS232/RS422/RS4851 x ISO RS-232 |
| LAN | 2 x RJ45 (1 x 1.0 Gbps,1 x 2.5 Gbps) | 2 x RJ45 (1 x 1.0 Gbps,1 x 2.5 Gbps) | 2 x RJ45 (1 x 1.0 Gbps,1 x 2.5 Gbps),1 x ISO RJ45 |
| Audio | 1 x Line-out &1 x Microphone-in (3.5mm phone jack) | ||
| Video | 1 x DP1.4a,1 x HDMI2.0,1 x HDMI ® (video-in ; without audio ; Not support in S5 mode) | ||
| Speakers & Microphone | 2 x 2-watt Speakers & Integrated Microphone (at Housing Bottom Side) | ||
| Reading light | Light bar x 2 (at housing bottom side) | ||
| Control Hot Key (R to L) | Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light, LCD Backlight On/Off, Clean Me, Function Key Mechanical and Environmental | ||

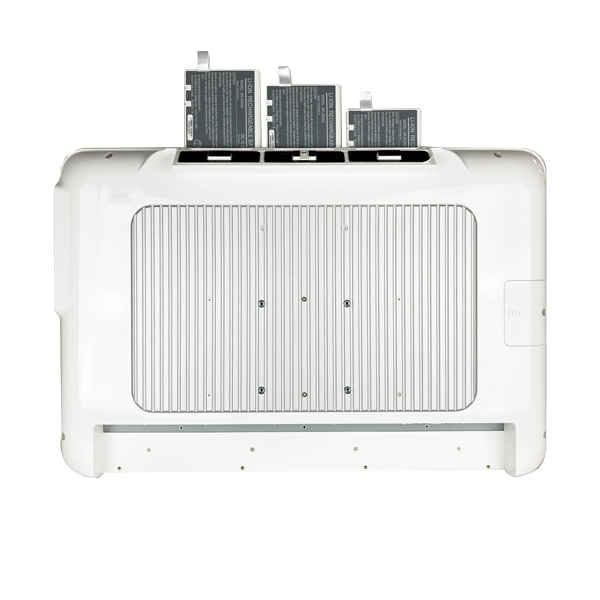

| Battery Pack | Optional DR-202 Series, Li-ion Battery x 3, Hot Swappable | Optional DR-202 X 1, UPS Battery | Optional DR-202 Series, Li-ion Battery x 3, Hot Swappable |
| Power Input / Power Adaptor | DC-In x 1, DC 14-24V input/ AC input 100 ~ 240V / 47 ~ 63 Hz / DC output 24V, 180W | ||
| Temperature | Operating Temperature: 0 ~ 40℃ (Burn-in, not airtight, W/ Battery 0 ~ 35℃)/ Storage Temperature: -20 ~ 60℃ | ||
| Humidity | Operating & Storage:10 ~ 90%, non-condensing | ||
| IP Rating | Front IP65, IPx1 for Whole System | Front IP65, Rear IP54 | Front IP65, IPx1 for Whole System |
| Housing | Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing | ||
| Dimensions (Net) | 594.0mm(H) x 397.0mm(V) x 56.0 mm(T) | ||
| Weights (Net) | 9.0 kg (w/o power adapter/battery pack), 10.5 kg (w/ x3 battery pack & no power adaptor) | ||
| Cooling | Fanless Design with External Heatsink | ||
| Mounting | Optional Stand, VESA 100 X 100 | ||
| Certification | CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1) EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project ISO 14971 / IEC62133 | ||
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WMP-24P | Datasheet | 616.89 KB | download – WMP-24P | Datasheet |
