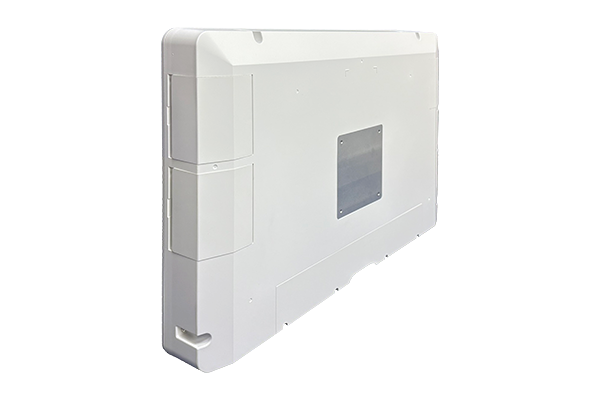

WMP-24U
Fanless Hot-swappable Batteries / 23.8″ / Medical Grade / Antimicobial Touch Surface to Housing
- Intel ® Core Ultra 200 Series (Arrow Lake) CPU (15W Max.)
- The newest regulation EN 60601-1: 2006/A2:2021 Compliance

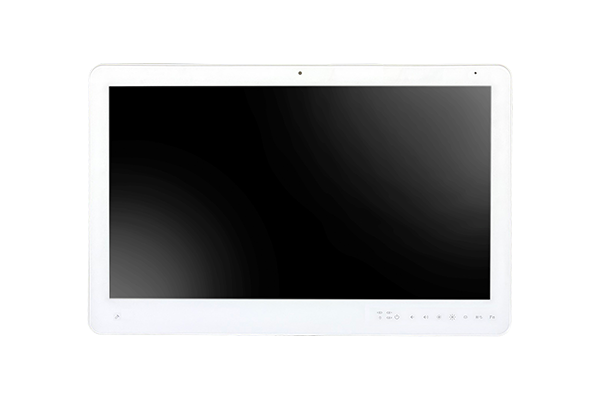

- 23.8″ FHD AHVA Diagnostic Panel w/ P-Cap Multi-Touch
- Optional Hot-Swappable Batteries X3
- Hospital White Plastic Housing w/ Anti-bacteria Treatment
- Fanless Design with Reliable Thermal Solution
- Dual Storage w/ M.2 SSD for RAID 0/1
- 1.5KV Isolated LAN/COM
- Optional 4K/FHD Capture Card
- Support PCIex4 Expansion Slot
- Easy Clean with Touch Frozen Hot-key and Flat Surface
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU / Chipset | FCBGA2049 Intel ® Core Ultra 200 Series (Code Name: Arrow Lake) Processor (15W Max.) / SoC / Support Vpro |
|---|---|
| Graphic | Intel ® Graphics |
| RAM | Two 6400 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 64GB |
| TPM | On Board TPM |
| OS Support | Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise LTSC |
| Storage | 1 x M.2 (M Key 2280) with PCIex4 for SSD,1 x M.2 M Key, 2280 with PCIe x4 PCIe |
| Expansion | 1 x M.2 M Key 2280 PCIex4 PCIe,1 x M.2 E Key 2230 |
| Display Size | 23.8" wide TFT-Color LCD (16:9) |
| Display | 1920 x 1080 (Full HD), 16.7M colors (Ture 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000: 1 (Typ) |
| Touch Screen | Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 88% / Hardness: ≥ 7H pencil, pressure 765g/45° / Life: 50000 Hrs I.O. Ports |

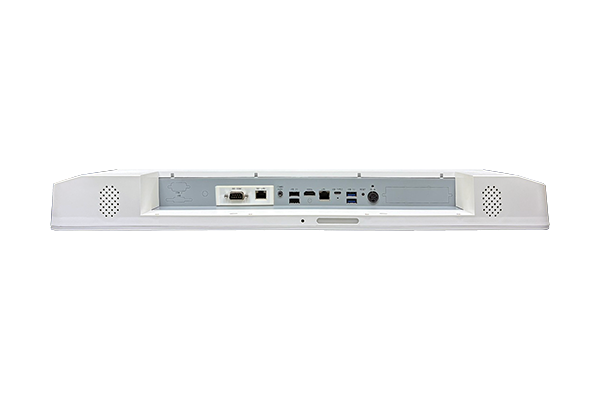

| USB | 2 x USB3.2,2 x USB2.0,1 x USB3.2 Type C |
| COM | 1 x 1.5KV ISO RS232/RS422/RS485, Optional1 x RS-232 |
| LAN | 1 x 1.5KV ISO RJ45 (2.5 Gbps),1 x RJ45 (2.5 Gbps, Support AMT/Vpro) |
| Audio | 1 x Combo of Line-out & Microphone-in (3.5mm phone jack) |
| Video | 1 x HDMI2.0 |
| Speakers & Microphone | 2 x 3-watt Speakers & Integrated Microphone (at Housing Bottom Side) |
| Reading light | 1 x Light bar (at housing bottom side) |
| Control Hot Key (R to L) | Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light, LCD Backlight On/Off or Clean Me, Function Key Mechanical and Environmental |

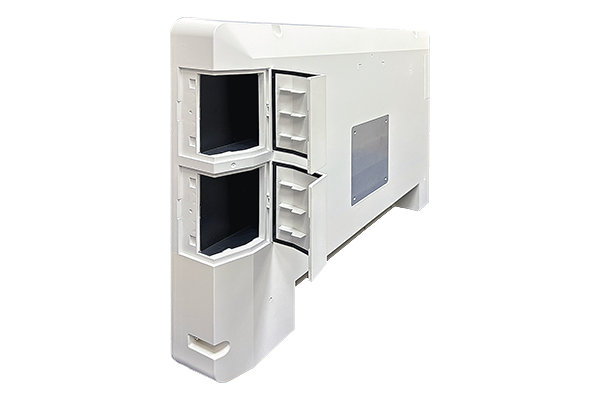

| Battery Pack | Option3 x WBT-1123, Hot-Swappable Battery |
| Power Input / Power Adaptor | DC-In x 1, DC 19-24V input/ AC input 100 ~ 240V / 50 ~ 60 Hz / DC output 24V, 158.4W |
| Temperature | Operating Temperature: 0 ~ 40℃ (IEC60068-2-78) w/ Battery 0 ~ 35 °C / Storage Temperature: -20 ~ 60℃ |
| Humidity | Operating & Storage:10 ~ 90%, non-condensing |
| IP Rating | Front IP65, IPx1 for Whole System |
| Housing | Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing |
| Dimensions (Net) | 580.0 mm(H) x 375.4 mm(V) x 61.2 mm(T) |
| Weights (Net) | 6.8 kg (w/o power adapter/battery pack), 8.15 kg (w/ x3 battery pack & no power adaptor) |
| Cooling | Fanless Design with External Heatsink |

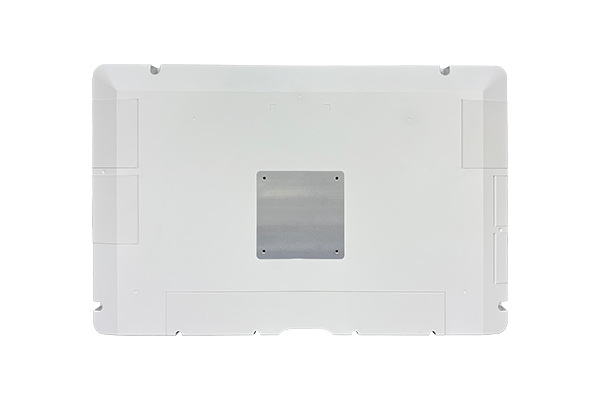

| Mounting | Optional Stand, VESA 100 X 100 |
| Certification | CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1) EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project ISO 14971 / IEC62133 |
