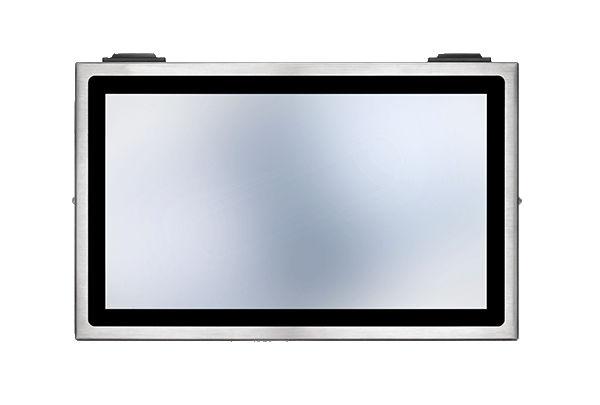

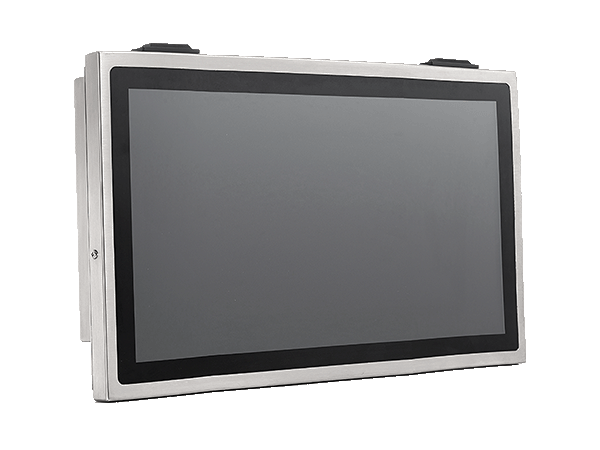

WTPE-9H66-22W
Raptor Lake 21.5″
- Class 1 Division 2, ATEX Zone 2, IECEx & EMC Class B Certified
- Intel ® 13th Gen. Core i5 / i7 Processor
- 21.5” Fanless Panel PC for Wide Temp -20~60°C Environments

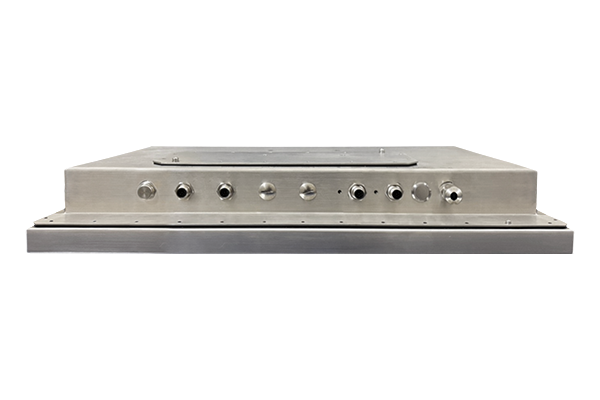

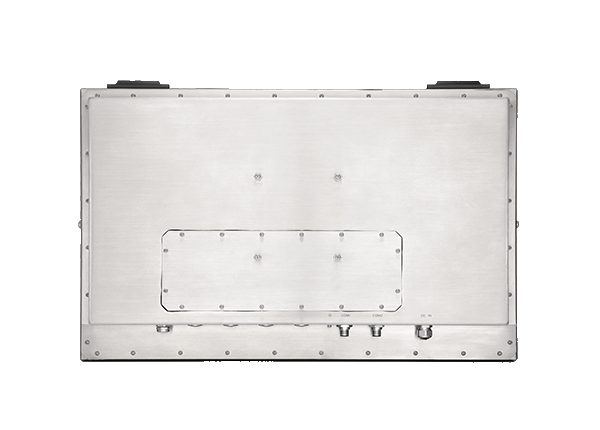

- LAN USB COM M16 (EX ic) Cable Gland & Waterproof M12 USB COM (EX ic) Connector
- Connector Panel for Easy Cable Installation
- Totally Sealed IP66 / NEMA 4X Enclosure
- 100% Water/Dust Proof Guarantee
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU / Chipset | FCBGA1356 13th generation Intel ® Core i5 / i7 processor (15W max.) / Soc |
|---|---|
| Graphic | Intel ® integrated Iris Xe Graphics |
| RAM | Two 5200 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB |
| OS Support | Windows 10 IoT Enterprise LTSC / WIN 11 IoT Enterprise LTSC |
| Storage | 2.5” SATA drive bay x 1 |
| Expansion | M.2 Type E x 1 |
| Display Size | 21.5” 16:9 |
| Display | 1920 x 1080 (FHD), 178(H) / 178(V), 250 nits (Typ. Center point), CR:5000 : 1 (Typ) |
| Touch Screen | Full Flat Resistive touch / Light Transmission: 80 ± 5% / Hardness: 4H / 490,000 hours I.O. Ports |
| Configuration | A B/C* D |
| Swappable M12, 8pin (I.S. Output, Support EX ic, Extension Cable to Ex ic Devices) | COM X 2 for RS232 USB2.0 X 1 COM X 1 for RS232 USB 2.0 X 2 |
| Cable Gland M16 (Max. Output x 4, Must be Installed by User) | USB 2.0 X 2 (EX ec) LAN X 2 (EX ec, i219LM for Vpro) COM X 1 for RS232/422/485 (EX ec) Mechanical and Environmental |
| Power Input / Consumption | DC 24V Input, M16 (EX ec, Must Be Installed by User) |
| Power Adapter | 100W AC-DC power adapter with 24V DC output, 1.2M cable, PSE |
| Temperature | Operating Temperature: -20 ~ 60℃ (IEC60068-2-56, air flow cooling) Storage Temperature: -20 ~ 60℃ |
| Humidity | Operating & Storage: -10 ~ 90%, non-condensing |
| IP Rating / Housing | IP66, NEMA4X / SUS304 stainless steel enclosure, chassis type |
| Dimensions (Net) | 557 x 348.5 x 84.5 |
| Weights (Net) | 13 kg (w/o power adapter/battery pack) |
| Cooling | Fanless |
| Mounting | VESA 100, side mount (M6*2) |
| Certification | EMC: FCC, CE (EMC), VCCI Class B, Canada ICES-003, Safety: IEC-62368 IECEx, Class 1 Division 2 Group A, B, C, D T4 (Config. A, B/C, D) ATEX Zone2 EX II 3G Ex ic ec IIC T4 Gc IP66 Class 2 Division 2 Group F, G (configuration A B/C, D) ATEX Zone22 EX II 3D EX tc IIIC T135C Dc IP66 (compliance) |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WTPE-9H66-22W | Datasheet | 228.10 KB | download – WTPE-9H66-22W | Datasheet |
