PS/2 ATX

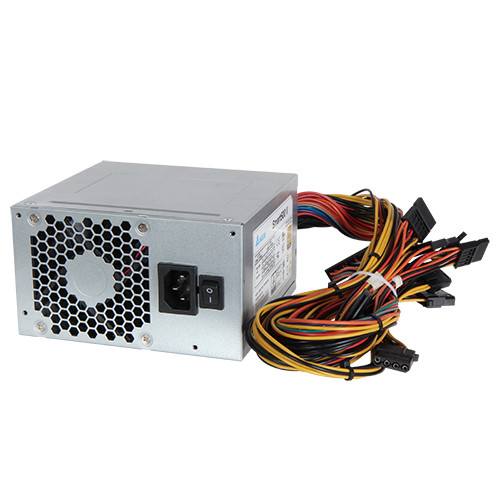

APD-3084
500W PS/2 ATX Power Supply
- Full range AC input 100-240 Vac
- Low ripple & noise output
- Support OVP, SCP, OCP and OTP
- Safety certifications: CCC, BSMI, TUV, CE, FCC,UL, KC, CB, BIS, UKCA
- 80 PLUS ® Gold Certified
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 100 Vac ~ 240 Vac |
|---|---|
| Wattage | 500w |
| Form Factor | PS/2 |
| MTBF(hrs) | 100,000 @25 °C |
| Temperature/ Humidity | Operating: 0 °C ~ 50 °C, 5% ~ 85%RH Storage: -40 °C ~ 80 °C, 5% ~ 95%RH |
| EMC & Safety | CCC, BSMI, TUV, CE, FCC, UL, KC, CB, BIS |
| Dimension(WxHxD) | 150 x86 x 140 (mm) |
| +5V | +3.3V +12 V -12 V +5Vsb |
| Max. Load | 20A 24A 41.7A 0.5A 3A |
| 120W | 500W Max 8W Max 15W Max |
| Min. Load | 0.2A 0A 1A 0A 0A |
| Ripple | 50mv 50mv 120mv 120mv 50mv |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| APD-3084 | APD-3084 | 500W PS/2 ATX Power Supply | add to list – APD-3084 |
