PS/2 ATX
APD-3092

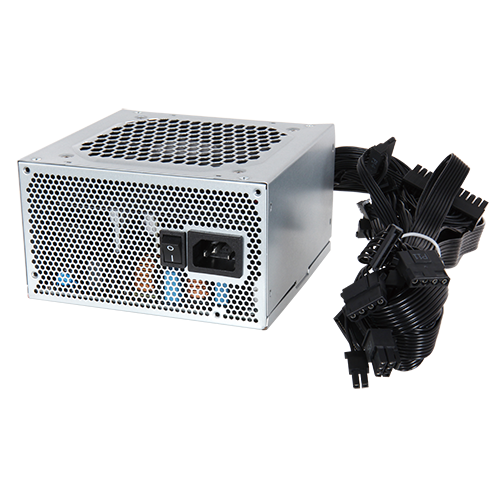

500W PS/2 ATX Power Supply
- Full-range AC input: 100 Vac-240 Vac
- Low ripple & noise output
- Support OVP, SCP, OCP and OTP
- Safety certifications:CE, FCC, CCC, CB, BSMI,UL, TUV, KC
- 80 PLUS ® Gold Certified
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 100 Vac ~ 240 Vac |
|---|---|
| Wattage | 500w |
| Form Factor | PS/2 |
| MTBF(hrs) | 700,000 @25 °C |
| Temperature/ Humidity | Operating: 0 °C ~ 50 °C, 8 °C ~ 90°RH Storage: -20 °C ~ 85 °C, 5 °C ~ 90°RH |
| EMC & Safety | CE, FCC, CCC, CB, BSMI, UL, TUV, KC |
| Dimension(WxHxD) | 150 x86 x 140 (mm) |
| +5V | +3.3V +12 V -12 V +5Vsb |
| Max. Load | 20A 20A 41.7A 0.3A 3A |
| 120W | 500W 3.6W 15W |
| Min. Load | 0A 0A 1A 0A 0A |
| Ripple | 50mv 50mv 120mv 120mv 50mv |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| APD-3092 | APD-3092 | 500W PS/2 ATX Power Supply | add to list – APD-3092 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| APD-3092 | Datasheet | 565.62 KB | download – APD-3092 | Datasheet |
