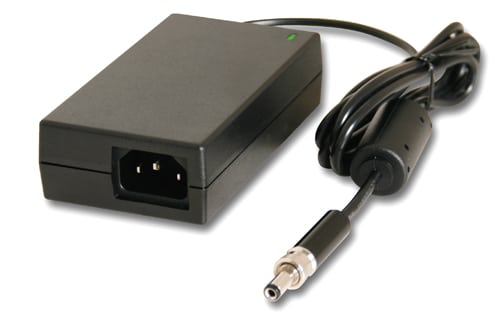

APH-3034-40W
40W DC-Plug with Screw Power Adapter
- Efficiency: Meet CEC (California Energy Commission)
- Low Ripple& Noise, 120MV
- Short Circuit Protection
- Over Current Protection 5.5A(Max.)
- Over Voltage Protection 22Vdc Max. (Upper Trip limit)
- No Load Power Consumption ≤ 0.06W
- DC plug with screw for securing
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| AC Input Voltage | 90V ~ 264V |
|---|---|
| DC Output Voltage | 12V |
| Output Load | 3.33A |
| Output Regulation | 11.4V ~ 12.6V |
| Efficiency | >83.1%, 115V@60Hz, 230V@50Hz |
| MTBF | 100,000 hrs@25 °C |
| EMI & Safety Approval | UL, cUL, TUV, CE, FCC, CB, CCC, KCC |
| Dimension | 110(w) x 62(d) x 31.5(h) mm |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| APH-3034-40W | Datasheet | 417.22 KB | download – APH-3034-40W | Datasheet |
