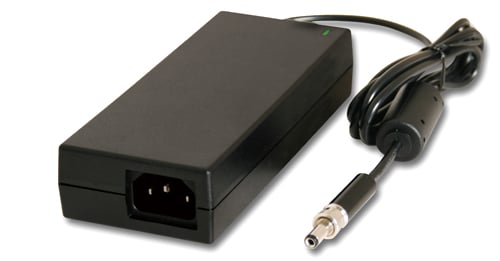

APH-3039-120W
120W DC-Plug with Screw Power Adapter
- Efficiency: Meet CEC (California Energy Commission)
- Low Ripple& Noise
- Short Circuit Protection
- Over Current Protection, Shutdown and no damage
- Over Voltage Protection 17Vdc Max. (Upper Trip limit)
- Over Temperature Protection (No fire, no smoke)
- No Load Power Consumption ≤ 0.5W
- DC plug with screw for securing
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| AC Input Voltage | 90V ~ 264V |
|---|---|
| DC Output Voltage | 12V |
| Output Load | 10A |
| Output Regulation | 11.4V ~ 12.6V |
| Efficiency | >86%, 100V@60Hz, 240V@50Hz |
| MTBF | 100,000 hrs@25 °C |
| EMI & Safety Approval | UL, cUL, TUV, CE, FCC, CB |
| Dimension | 171(w) x 72(d) x 42(h) mm |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| APH-3039-120W | Datasheet | 417.22 KB | download – APH-3039-120W | Datasheet |
