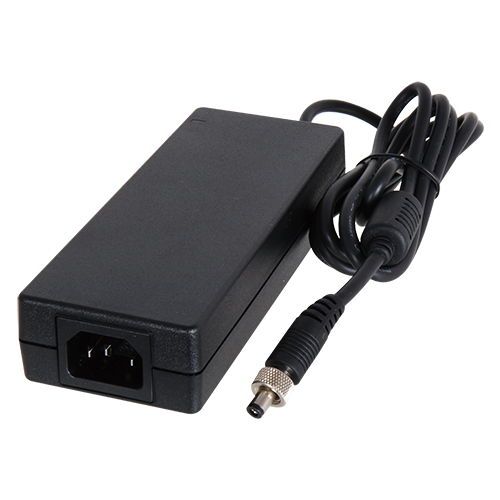

APH-3071
AC-DC Adapter 90W/12V Screw-Lock DC Plug
- Full range AC input 100V~240V
- Efficiency: Meet DOE Level VI
- Built-in protection: OVP / OCP / SCP / OTP
- No Load Power Consumption < 0.21 W
- DC plug with securing screw
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| AC Input Voltage | 100V ~ 240V |
|---|---|
| DC Output Voltage | 12V |
| Output Load | 7.5A |
| Output Regulation | 11.4V ~ 12.6V |
| Efficiency | >88%, 115V@60Hz, 230V@50Hz |
| MTBF | 100,000 hrs@25 °C |
| EMI & Safety Approval | UL,CUL,CB,CCC,TUV,CE,BSMI,PSE,K C&KCC,RCM,NRCAN |
| Dimension | 60(w)x150(d)x30.5(h)mm |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| null | APH-3071 | AC-DC Adapter 90W/12V Screw-Lock DC Plug | add to list – APH-3071 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| APH-3071 | Datasheet | 795.21 KB | download – APH-3071 | Datasheet |
