- Portwell

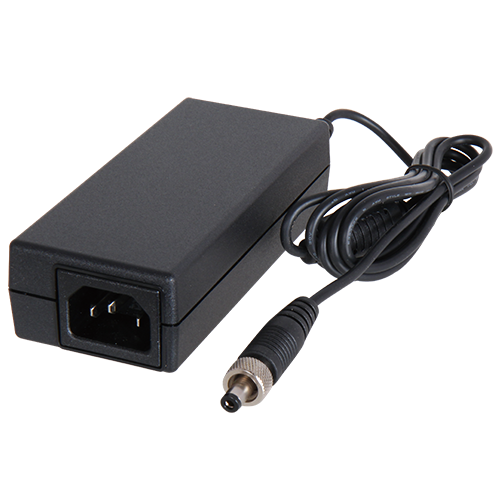

APH-3076
AC-DC Adapter 40W/12V Screw-Lock DC Plug
- Full range AC input 100V~240V
- Efficiency: Meet DOE(VI) / COC(Tier2)
- Built-in protection: OVP / OCP / SCP / OTP
- No Load Power Consumption < 0.1W
- DC plug with securing screw
Platform Overview
About this series
40W DC-Plug with Screw Power Adapter
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| AC Input Voltage | 90V ~ 264V |
|---|---|
| DC Output Voltage | 12V |
| Output Load | 3.33A |
| Output Regulation | 11.4V ~ 12.6V |
| Efficiency | >86%, 115V@60Hz, 230V@50Hz |
| MTBF | 100,000 hrs@25 °C |
| EMI & Safety Approval | UL, cUL, TUV, CE, FCC, CB, CCC |
| Dimension | 110(w) x 62(d) x 31.5(h) mm |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| APH-3076 | APH-3076 | AC-DC Adapter 40W/12V Screw-Lock DC Plug | add to list – APH-3076 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| APH-3076 | Datasheet | 795.21 KB | download – APH-3076 | Datasheet |
