- Portwell

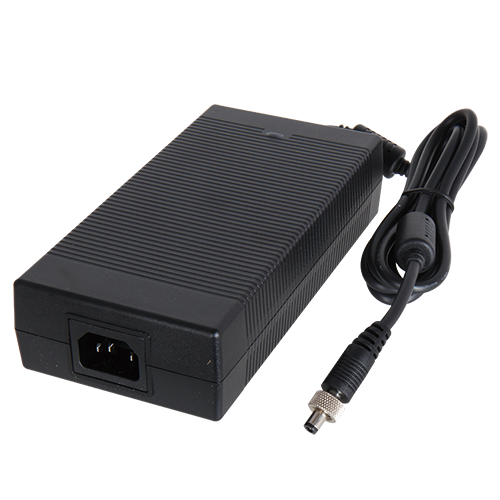

APH-3077
AC-DC Adapter 150W/12V Screw-Lock DC Plug
- Full range AC input 100V~240V
- Efficiency: Meet DOE(VI) / COC(Tier2)
- Built-in protection: OVP / OCP / SCP / OTP
- No Load Power Consumption < 0.21W
- DC plug with securing screw
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| AC Input Voltage | 90V ~ 264V |
|---|---|
| DC Output Voltage | 12V |
| Output Load | 12.5A |
| Output Regulation | 11.4V ~ 12.6V |
| Efficiency | >88%, 100V@60Hz, 240V@50Hz |
| MTBF | 43,800 hrs@25 °C |
| EMI & Safety Approval | UL, cUL, TUV, CE, FCC, CB |
| Dimension | 171(w) x 72(d) x 42(h) mm |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| APH-3077 | APH-3077 | AC-DC Adapter 150W/12V Screw-Lock DC Plug | add to list – APH-3077 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| APH-3077 | Datasheet | 795.21 KB | download – APH-3077 | Datasheet |
