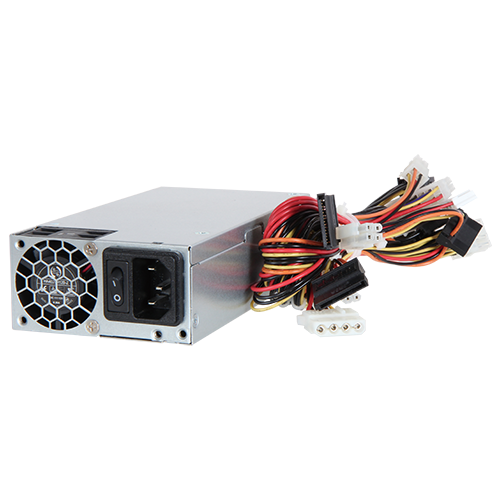

APJ-3048
500W Flex ATX Power Supply
- Full-range AC input: 100 Vac-240 Vac
- Low ripple & noise output
- Support OVP, SCP, OCP and OTP
- Safety certifications: CE, FCC, UL, CSA, CB, TUV, CCC, BSMI, KC
- 80 PLUS ® Gold Certified
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 100 Vac ~ 240 Vac |
|---|---|
| Wattage | 500w |
| Form Factor | Flex ATA |
| MTBF(hrs) | 700,000 @25 °C |
| Temperature/ Humidity | Operating: 0 °C ~ 50 °C, 8% ~ 90%RH Storage: -20 °C ~ 80 °C, 5% ~ 90%RH |
| EMC & Safety | CE, FCC, UL, CSA, TUV, CCC, BSMI, KC |
| Dimension(WxHxD) | 81.5 x 40.5 x 150 (mm) |
| +5V | +3.3V +12 V -12 V +5Vsb |
| Max. Load | 18A 15A 41.6A 0.3A 3A |
| 150W Max | 500W Max 3.6W Max 15W Max |
| Min. Load | 0A 0A 0A 0A 0A |
| Ripple | 50mv 50mv 120mv 120mv 50mv |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| APJ-3048 | APJ-3048 | 500W Flex ATX Power Supply | add to list – APJ-3048 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| APJ-3048 | Datasheet | 511.02 KB | download – APJ-3048 | Datasheet |
