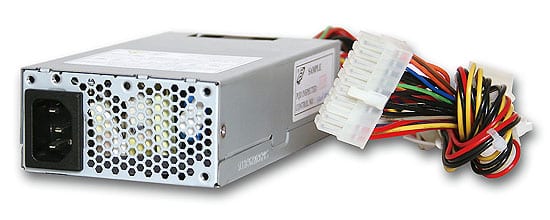

ORION-A1801P
180W Flex form factor power supply with active PFC
- 1U Flex form factor power supply
- Full-range input with active PFC
- Max. +5V output is 16A
- Low noise
Platform Overview
About this series
| ORION-A1801P | 180W PSU.Active PFC.Low Noise. |
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 90V ~ 264V AC, full range |
|---|---|
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 6A@115V, 3A@230V |
| Efficiency | > 75% |
| Holdup Time | 16 ms at full load |
| Over Voltage Protection | +5V: 5.7 ~ 6.5V; +3.3V: 3.9 ~ 4.3V; +12V: 13.6 ~ 15V |
| Over Power/ Load Protection | Output power over 110% ~ 150% |
| MTBF | >130,000 hrs |
| EMI & Safety Approval | UL |
| Temperature/ Humidity | Operating: 0 ~ 40 °C, 20 ~ 90%RH Storage: -20 ~ 60 °C, 5 ~ 95%RH |
| Dimension (WxDxH) | 81.5 x150 x 40.5 mm; 3.2” x 5.9” x 1.6” |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ORION-A1801P | Datasheet | 501.41 KB | download – ORION-A1801P | Datasheet |
