- Portwell
AREMO-2199-MX

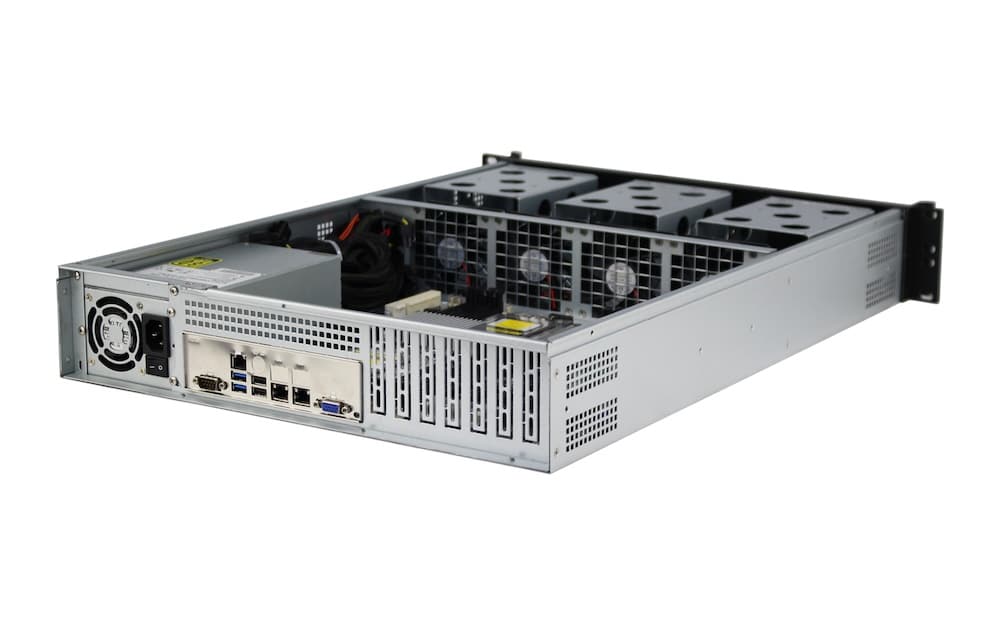

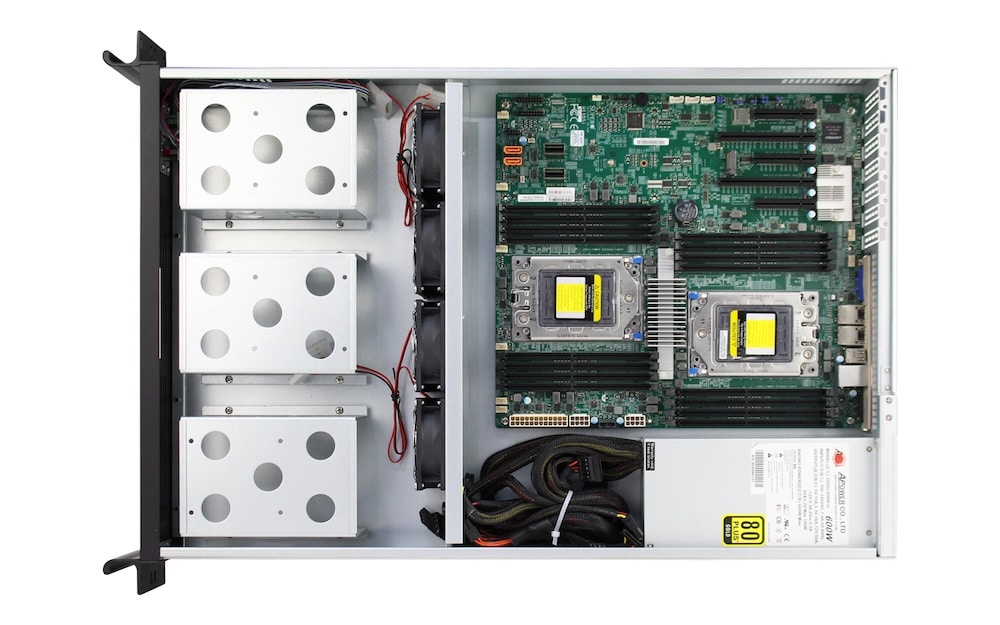

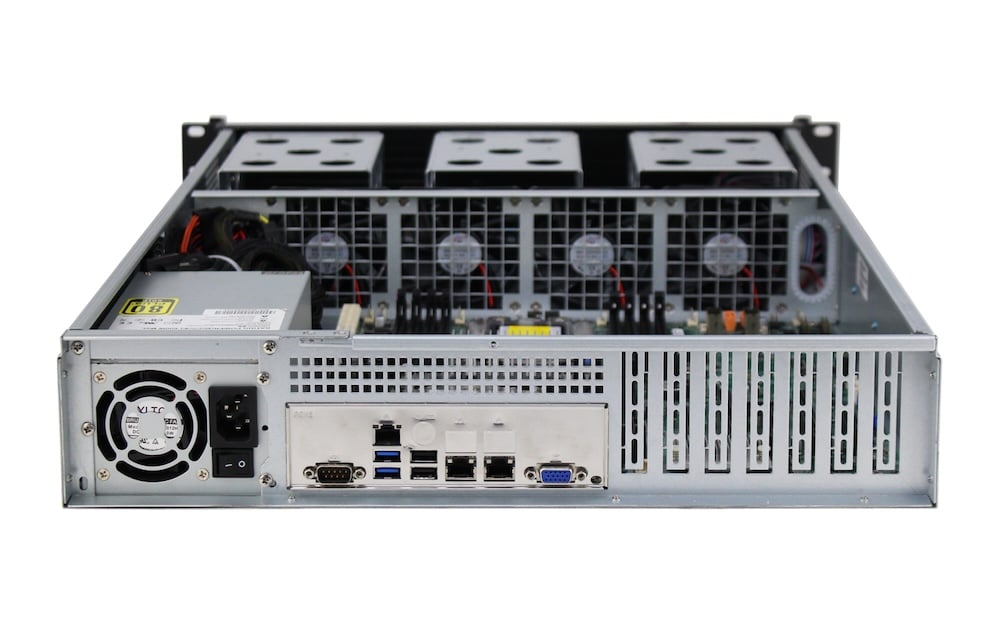

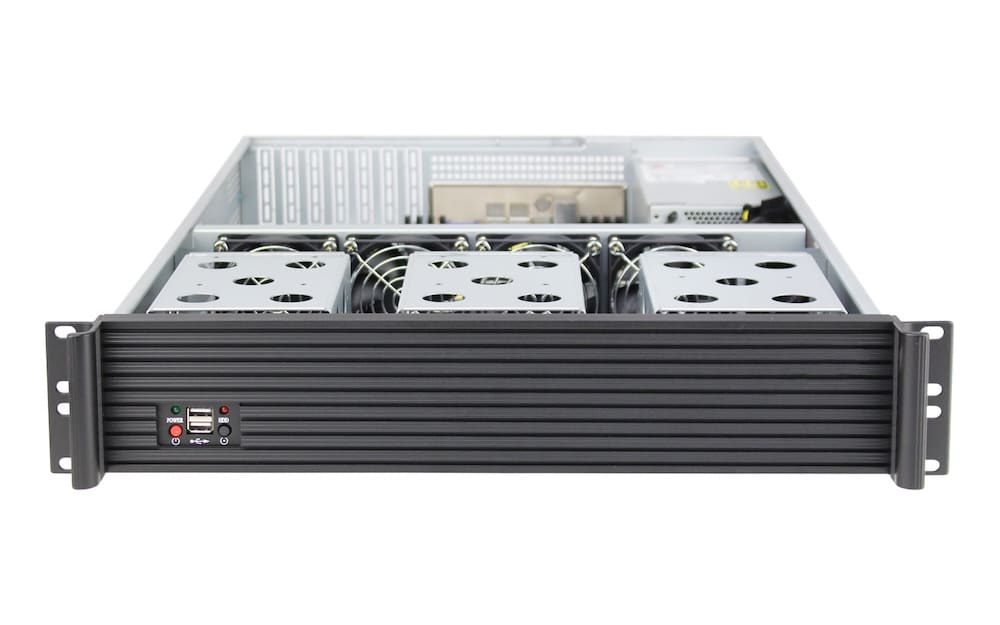

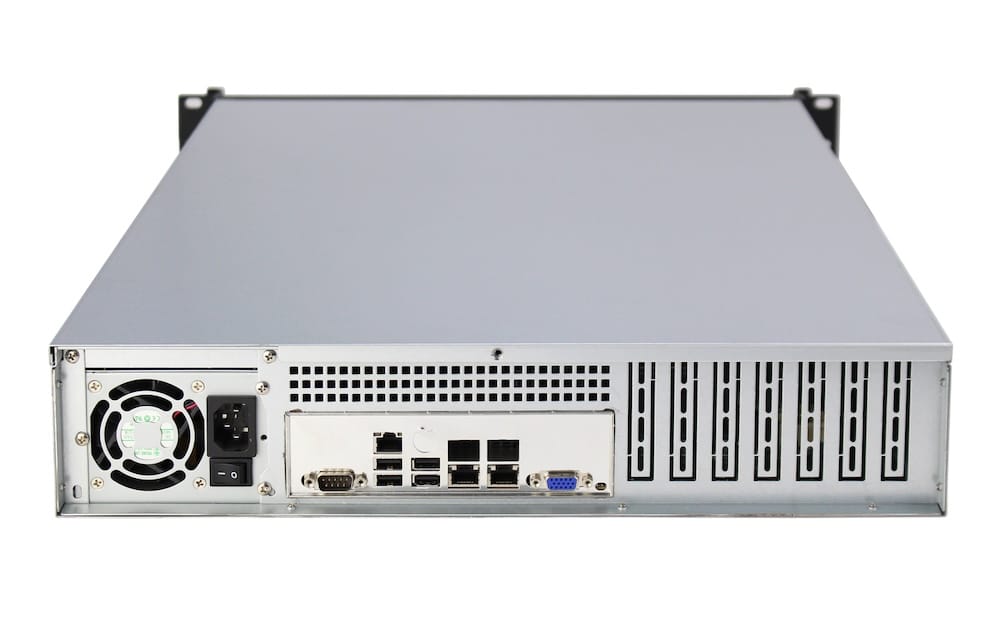

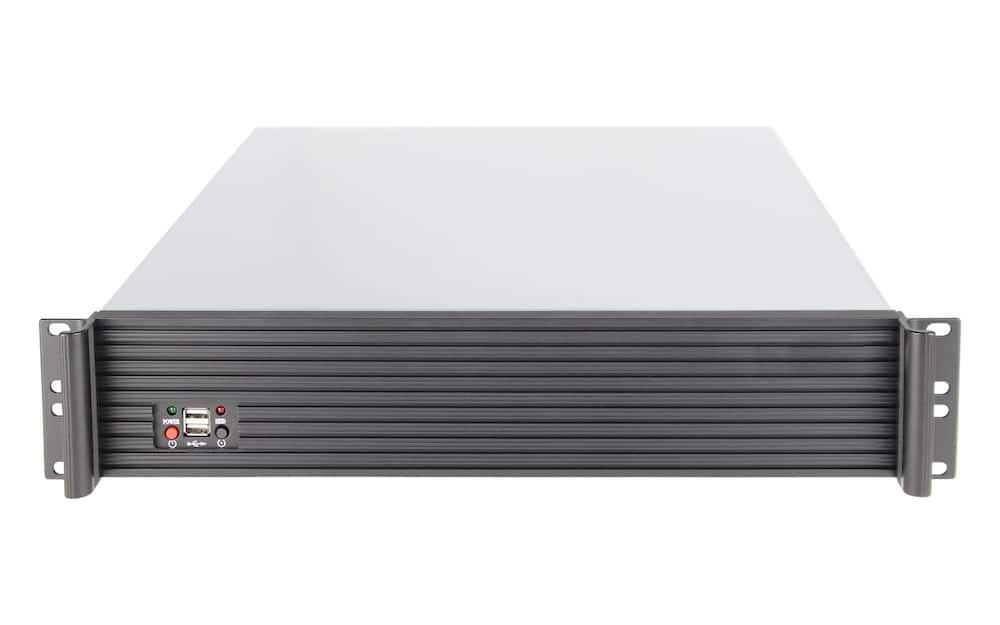

19” 2U industrial rack-mount chassis
- 9x 3.5” HDD Drive bays (Or 3x 2.5” HDD/SSD)
- Four 8cm ball-bearing cooling fans for better ventilation
- Two USB2 ports on the front panel
- All I/O ports, Buttons, LEDs, Drive bays, AC inlet located on the front side
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel with aluminum front panel |
|---|---|
| Drive | Bay9x 3.5" HDD (or3x 2.5" HDD/SSD) |
| Indicator | 1x Power On/Off LED,1x HDD LED |
| Switch | 1x Power On/Off,1x System reset |
| Connector | 2x USB ports on the front panel |
| Expansion | slots7x half-size PCI/PCIe expansion slots, vertical insert |
| Standard | Color Black |
| Cooling | Fan4x 8cm ball-bearing cooling fans |
| Dimension | 650 x428 x 88.5 mm |
| Weight | 8.5 Kg |
| Input Voltage | 90V ~ 264V AC, full range |
| Input Frequency | 50 ~ 60Hz |
| Input Current | 10A@110V, 5A@240V |
| Efficiency | > 80% |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | CE, FCC |
| Operating Temperature | 0 °C ~ 50 °C |
| Storage Temperature | 0 °C ~ 70 °C |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Vibration | 5 ~ 7 Hz: 0.5” double amplitude displacement 7 ~ 2000 Hz: 1.5g acceleration |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AREMO-1192-MX | 19” 2U rack-mount chassis for M/B | add to list – AREMO-1192-MX |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| AREMO-2199-MX | Datasheet | 934.88 KB | download – AREMO-2199-MX | Datasheet |
