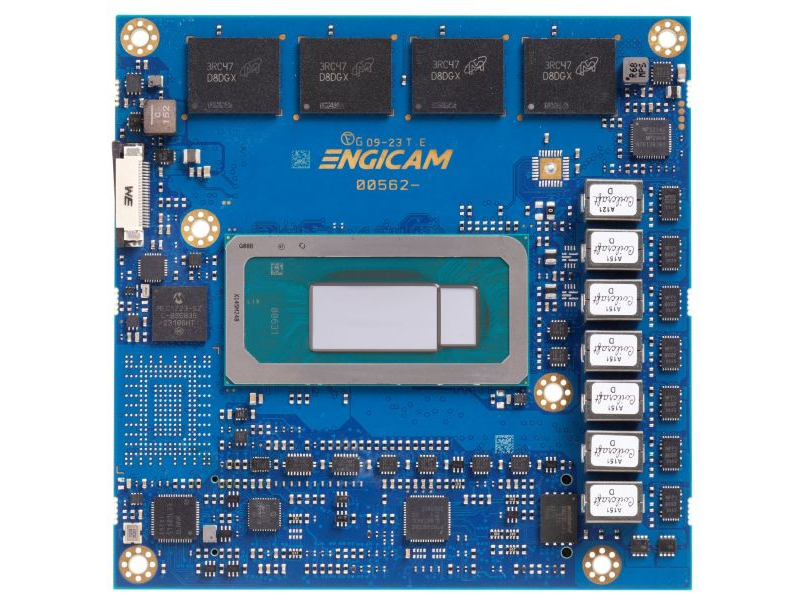

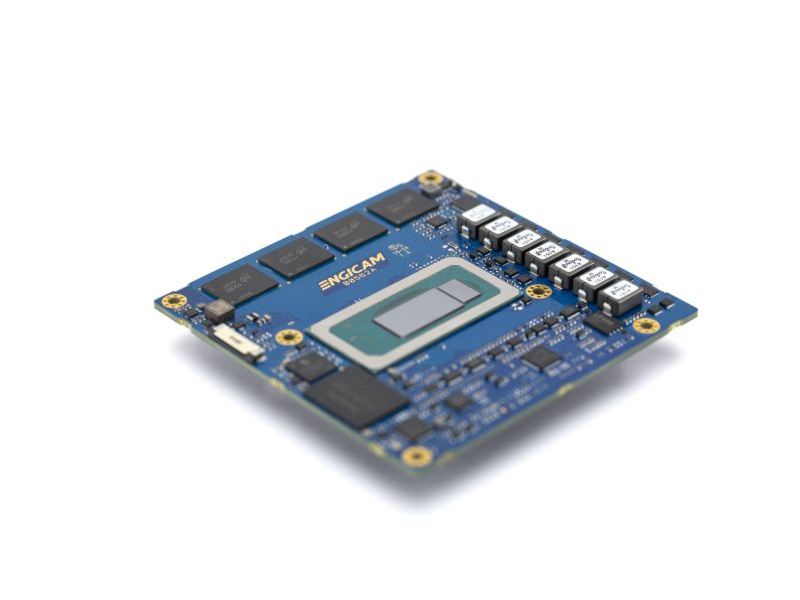

COMe 6C-ADLP
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Alder Lake |
|---|---|
| CPU #2 | Manufacturer: Intel |
| CPU #3 | GPU: ja |
| Cores | x86 |
| Cores #2 | i7-12800HE, i5-12600HE, i3-12300HE, i7-1270PE, i5-1250PE, i3-1220PE, i7-1265UE, i5-1245UE, i3-1215UE, Celeron 7305E |
| Memory | LPDDR5@5200MTs |
| Memory #2 | 8GB up to 16GB |
| Graphics & AI | Intel® Iris Xe Graphics architecture Intel® Deep Learning Boost (VNNI) DirectX 12.1, OpenGL 3.0, IPU 6.0 |
| Video Processing Unit Capabilities | HEVC/H.265, AVC/H.264, VP9, JPEG/MJPEG dec HEVC/H.265, AVC/H.264, VP9, JPEG enc |
| Mass Storage | Starting from 64 NVMe PCIe |
| Networking | 1x 2.5 Gb Ethernet |
| USB | 8x USB2 |
| USB #2 | 4x USB3 |
| PCIe | 8 |
| PCIe #2 | PCIe interface Gen3/up to 8-lane |
| Audio | HDA Interface |
| Peripheral Interfaces | SM Bus, I2C, LPC/eSPI (option), UART, GPIOs, CSI connector, JTAG EC connector |
| Power Supply | +8.5 to 20 V |
| Dimensions | 95 x 95 mm |
| Product availability | 2034 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| COMe_6C-ADLP_Flyer.pdf | 289.78 KB | download – COMe_6C-ADLP_Flyer.pdf |
