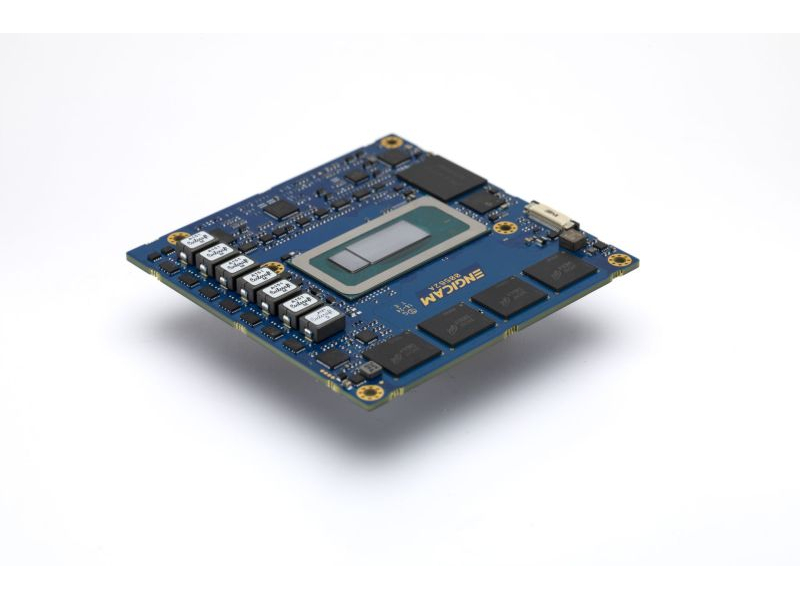

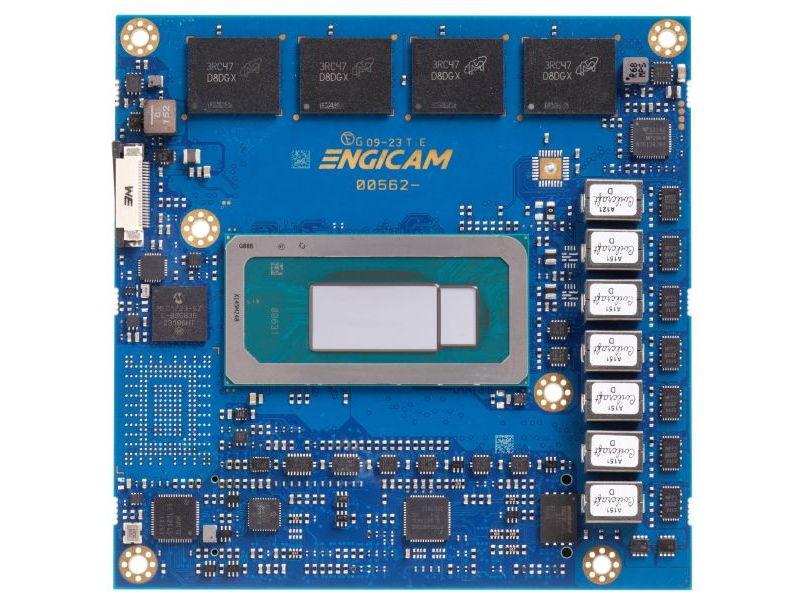

COMe 6C-RPL
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Raptor Lake |
|---|---|
| CPU #2 | Manufacturer: Intel |
| CPU #3 | GPU: ja |
| Cores | x86 |
| Cores #2 | i7-1365URE, i5-1345URE, i3-1315URE, i7-1370PRE, i5-1350PRE, i3-1320PRE, i3-1320PRE, i3-1320PRE |
| Memory | LPDDR5@6400MTs |
| Memory #2 | 8GB up to 16GB |
| Graphics & AI | Intel® Iris Xe Graphics architecture Intel® Deep Learning Boost (VNNI) DirectX 12.1, OpenGL 3.0, IPU 6.0 |
| Video Processing Unit Capabilities | HEVC/H.265, AVC/H.264, VP9, JPEG/MJPEG dec HEVC/H.265, AVC/H.264, VP9, JPEG enc |
| Mass Storage | Starting from 64GB NVMe PCIe |
| Networking | 1x 2.5 Gb Ethernet |
| USB | 8x USB2 |
| USB #2 | 4x USB3 |
| PCIe | 8 |
| PCIe #2 | PCIe interface Gen3/up to 8-lane |
| Audio | HDA interface |
| Peripheral Interfaces | SM Bus, I2C, eSPI/LPC (option), UART, GPIOs, CSI connector, JTAG EC connector |
| Power Supply | +8.5 to 20 V |
| Operating Temperature | -25° up to 85° |
| Dimensions | 95 x 95 mm |
| Product availability | 2034 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| COMe_RPL_Flyer.pdf | 287.94 KB | download – COMe_RPL_Flyer.pdf |
