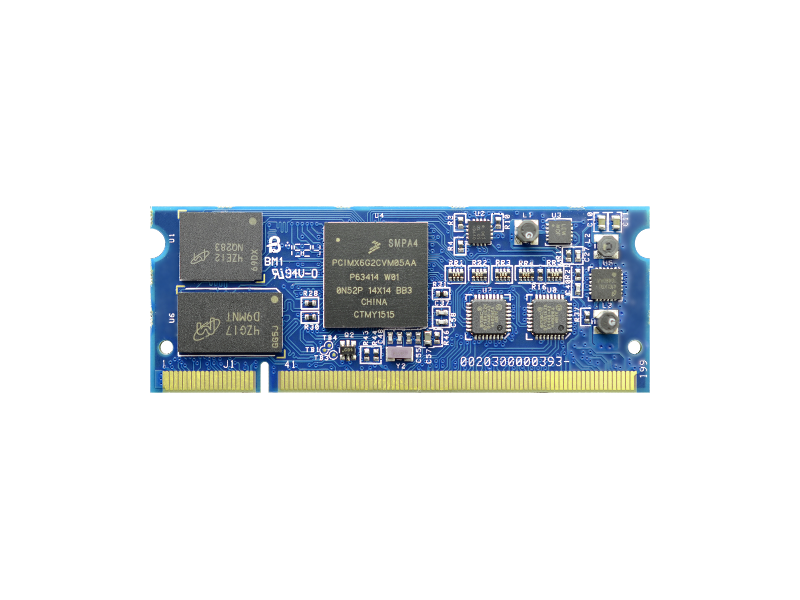

GEA-MX6UL
Access technical documents, software, and support resources.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX6UL |
|---|---|
| CPU #2 | Manufacturer: NXP |
| Cores | ARM |
| Cores #2 | Single-Core Cortex-A7@528MHz or 900MHz |
| Cores #3 | 1 cores |
| Memory | DDR3L@800MTs |
| Memory #2 | 128MB up to 1GB |
| Graphics & AI | Pixel processing pipeline (PXP) to support 2D image processing including color-space conversion, scaling, alpha-blending, and rotation |
| Video Interfaces | Parallel RGB |
| Video Processing Unit Capabilities | Up to 1366x768 |
| Mass Storage | Nand Flash, eMMC (Optional) |
| Mass Storage #2 | EMMC, NAND |
| Networking | 2x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | NO |
| Audio | I2S interface |
| Peripheral Interfaces | Up to 4 I2C Up to 3 SPI Up tp 8 PWM Up to 8 UART Up to 2 CAN Bus Up to 2 SDIO interfaces |
| Power Supply | single 5V |
| Operating System | Linux |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM |
| Dimensions #2 | 67.6 x 25 mm |
| Product availability | 2035 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PCN_1608-2.pdf | 53.35 KB | download – PCN_1608-2.pdf |
