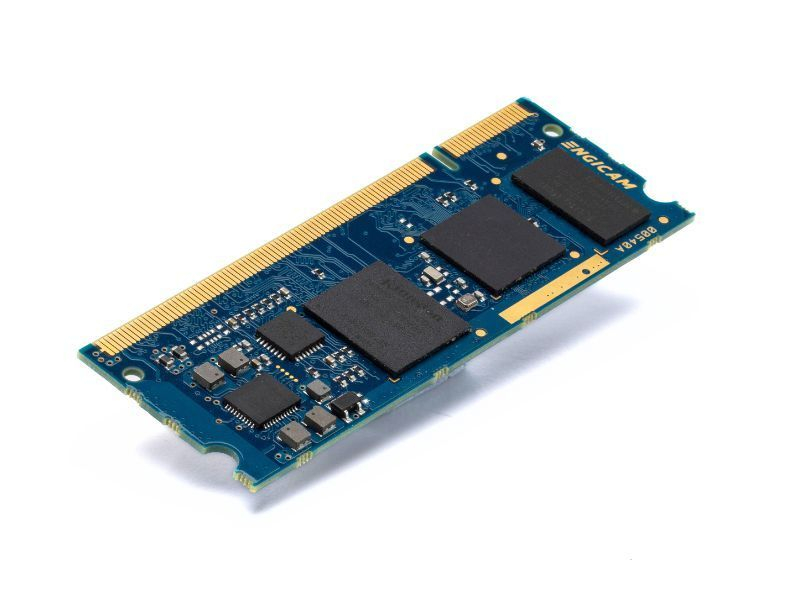

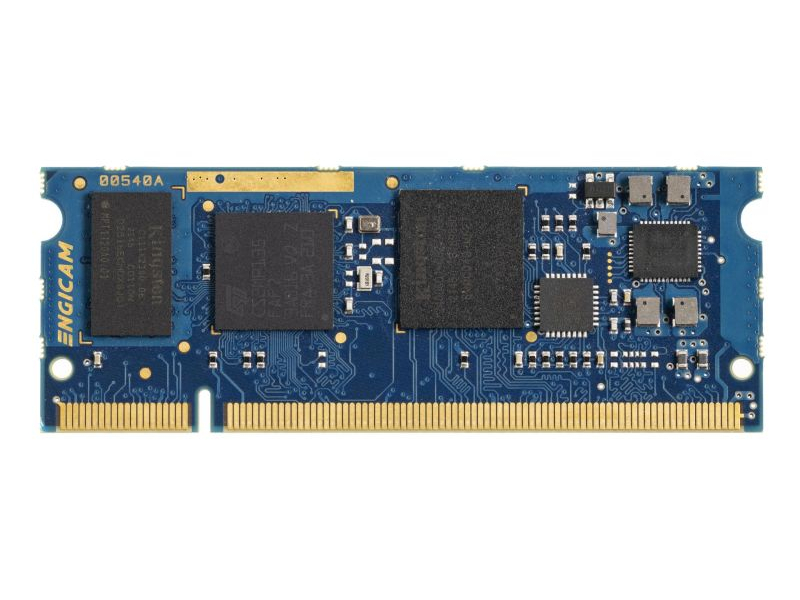

GEA STM32MP13
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | STM32MP13x |
|---|---|
| CPU #2 | Manufacturer: ST |
| Cores | ARM |
| Cores #2 | Arm® Cortex®-A7 up to 1 GHz |
| Cores #3 | 1 cores |
| Memory | DDR3L@1066MTs |
| Memory #2 | 512MB up to 1GB |
| Graphics & AI | LCD-TFT controller, up to 24-bit // RGB888 -up to WXGA (1366 × 768) @60 fps or up to Full HD (1920 x 1080) @ 30 fps |
| Video Interfaces | Parallel RGB |
| Video Processing Unit Capabilities | up to WXGA (1366 × 768) |
| Mass Storage | EMMC |
| Networking | 2x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | NO |
| Audio | SAI Interface |
| Peripheral Interfaces | 3x UART (Up to 7)2x I2C (Up to 5)2x SPI (Up to 5)2x CAN2x SDIO GPIOs |
| Power Supply | single 5V |
| Operating System | Linux |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM 2.0 |
| Dimensions #2 | 67.6 x 25 mm |
| Product availability | 2036 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| GEA_STM32MP13_Flyer.pdf | 318.93 KB | download – GEA_STM32MP13_Flyer.pdf |
