- Portwell

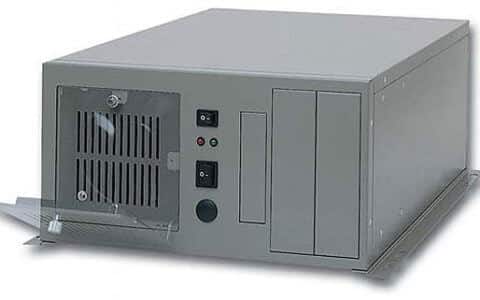

IRC-308
8-slot full-sized industrial node chassis (Shoe-box)
- Two 5.25” drive bay for CD-ROM or mobile rack, easy to install software and mirror disk (RAID1)
- One replaceable air filter for easy cleaning
- The fan filter panel can be installed in different directions
- Can be vertically or horizontally mounted, easy to fit into space limited environment
- One 12 cm ball-bearing cooling fan for better ventilation
- Both 8-slot ISA and PICMG backplane applicable; easy to change to different backplanes
- Two adjustable positions for hold-down card retainers provide better protection from vibration
- Field replaceable power supply bracket for both normal PS/2 and PS/2 redundant power supply, easy for changing defective power supply
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel |
|---|---|
| Drive Bay | External: 5.25” x2 + 3.5” FDD x1 |
| Internal | 3.5” HDD x1 |
| Cooling Fan | One 12 cm ball-bearing fan |
| Indicator | Power on/off x1, HDD x1 |
| Switch | Power on/off x1, System reset x1 |
| Air Filter | One replaceable air filter at the front door |
| Speaker | One 8Ω speaker |
| Connector | One 5-pin AT K/B connector with a cap on the front panel |
| Standard Color | Beige, Black |
| Backplane | PBP-08I: 8-slot ISA backplane PBP-084: 8-slot (4xPCI) PICMG backplane PBP-083: 8-slot (3xPCI) PICMG backplane |
| Dimension | 330(W) x 408(D) x 172(H) mm; 13”(W) x 16.1”(D) x 6.8”(H) |
| Weight | Net: 9 kg (19.8 lb); Gross: 10 kg (22 lb) |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| IRC-308-08P4-D3501P | 8-slot full-sized industrial node chassis with 8-slot (4xPCI) PICMG backplane and 350W Active PFC power supply | add to list – IRC-308-08P4-D3501P | |
| IRC-308-08P4-330X | 8-slot full-sized industrial node chassis with 8-slot (4xPCI) PICMG backplane and 330W ATX power supply | add to list – IRC-308-08P4-330X | |
| IRC-308-08P3-330X | 8-slot full-sized industrial node chassis with 8-slot (3xPCI) PICMG backplane and 330W power supply | add to list – IRC-308-08P3-330X |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| IRC-308 | Datasheet | 270.22 KB | download – IRC-308 | Datasheet |
