Motherboard with Galvanic Isolation
MEDB-51A0-H420E-MPC
Intel® 10th Gen. Core™ i Mini-ITX Medical board (low profile)
- Portwell
- EOL (End of Life)

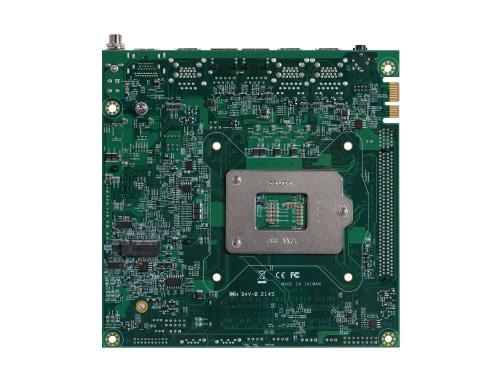

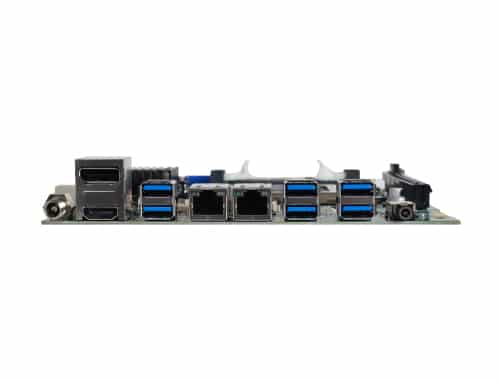

MEDB-51A0-H420E-MIB
Intel® 10th Gen. Core™ i Mini-ITX Medical board (low profile)
- Intel ® 10th Gen. Core™ Processors
- Supports DDR4 2400/2666/2933MT/s Non-ECC SDRAM on two SODIMM socket up to 128GB
- Supports 2x Gigabit Ethernet LAN, 6x USB 3.1 Gen1 on rear I/O, 1x USB 2.0 on board
- Supports PCIe x16 expansion slot(Gen3), M.2 E key(2230) , M.2 M key(2280) for NVMe, SATA SSD, PCIe x1 gold finger and 2x SATA III
- Supports triple display of HDMI ® / DP/ LVDS
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® 10th Gen Core™ Processors CPU in LGA1200 package, up to 65W |
|---|---|
| Chipset | Intel ® H420E |
| BIOS | AMI uEFI BIOS |
| Memory | 2x 260-pin DDR4 SODIMM sockets supported Data transfer rates up to 2400/2666/2933 MT/s 128GB |
| Storage | - Support2x 7-pin SATA III port -1x M.2 M key 2280 (PCIe x4,SATA) |
| Watchdog Timer | Programmable watchdog timer, time out period from 1 sec to 255 secs. |
| Hardware Monitoring | System monitor (Voltage,Fan Speed and Temperature) |
| Expansion Interface | -1 x PCIe x16 Gen3 slot -1 x M.2 E key 2230 (PCIe x1, USB) ~1 x M.2 M key 2280 (PCIe x4, SATA) ~1 x PCIe x1 Gold Finger (include2x PCIe x1 signal, co-lay with M.2 Key M PCIe x4) |
| TPM | TPM 2.0 I/O Interface |
| Embedded Controller | IT5121 |
| Audio | - Realtek ® ALC897 HD codec - Combo audio jack |
| Ethernet | -1x RJ45 connectors on rear I/O with Intel ® i225LM -1x RJ45 connectors on rear I/O with Intel ® i219LM |
| USB | -6x USB 3.1 Gen 1 (5Gb/s) on rear I/O -1x USB 2.0 on board pin header |
| GPIO | 8-bit configurable controlled by embedded controller Display |
| Graphic Controller | - Intel ® UHD Graphics 630 supports DirectX 12, OpenGL 4.5 - Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9 |
| Display Interface | - LVDS: Dual channel 2bit LVDS on board, resolution up to 1920 x1200 - DP port on rear I/O, resolution up to 4096×2160 - HDMI ® port on rear I/O, resolution up to 4096×2160 Mechanical& Environment |
| Dimensions | 170mm(L) x 170mm(W) |
| Environment | - Operating temperature: 0 °C ~ 50 °C - Storage Temperature: -20 °C ~ 80 °C - Relative Humidity: 5% ~ 95%, non condensing |
| MTBF | Over 100,000 hours at 40 °C |
| Power Supply | 12V DC input or ATX Power input |
