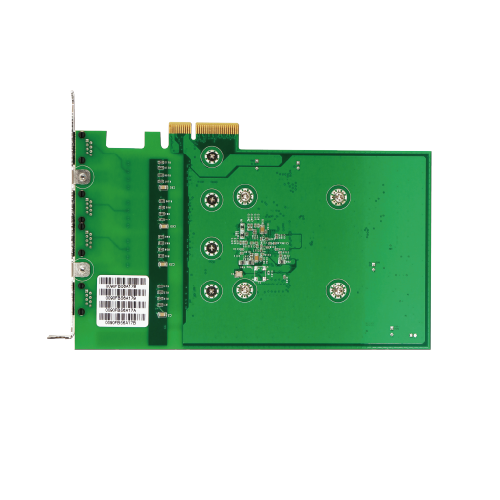

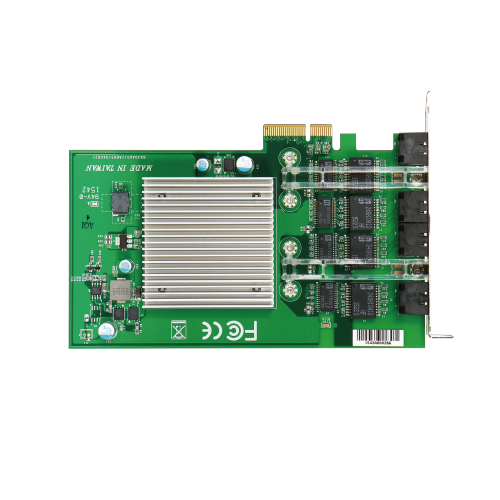

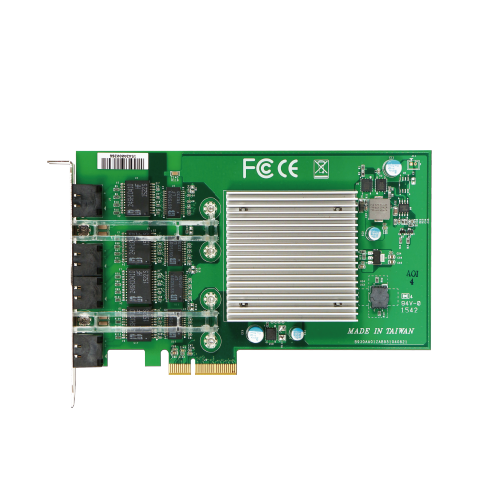

MEDN-51040
Medical Grade Isolation LAN card. Intel® PCIe x4 Quad 1000GBASE-T Ports
- Intel ® i350 LAN chipset
- Medical isolation according to IEC60601-1
- 4 TX and RX queues (per port)
- 1 Gb/s Ethernet IEEE 802.3, 802.3u,802.3ab PHY specifications compliant
- Network isolator: RJ45 in/out dielectric strength: 4KV, IEC60601-1
- Jumbo frames support for packets up to 9.5KB
- IEEE802.3az-Energy Efficient Ethernet (EEE)
- TCP/ UDP/ IP stateless offload
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| OS Support | Windows |
|---|---|
| LAN Controller | Intel ® Gigabit Ethernet Controller |
| Ethernet of Ports | Quad 1GbE Ethernet ports |

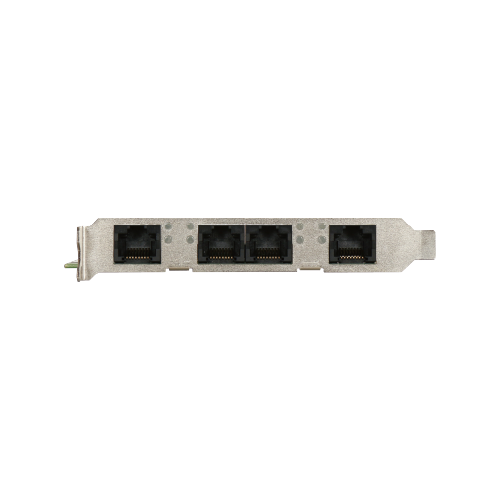

| Interconnect | 4x RJ45, Unshielded female connector |
| Bus Type | x4 lane, operable in x4, x8, x16 slots 2.5 Gbps uni-directional, 5Gbps bi-directional |
| Operating Environment | 0 °C ~ 45 °C |
| Storage Environment | -20 °C ~ 70 °C |
| Miscellaneous | Standard height short card w/ full height bracket |
| Dimension | 174.625mm(W) X 106.68mm(D) X 18mm(H) |
| Certification | FCC, CE, IEC/EN 60601-1 |
