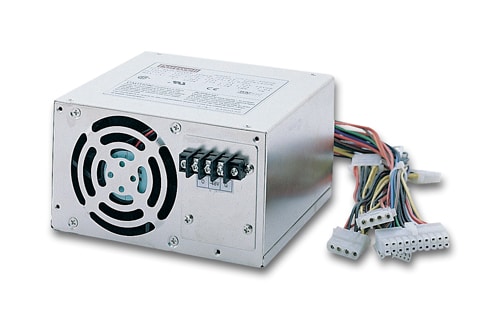

ORION-300DX/48
300W -48V DC input DC/DC PS/2 ATX power supply
- PS/2 ATX power supply suitable for 2U and larger chassis
- ORION-300DX/48 for -48V DC input, suitable for telecommunication applications
- Max. -12V output is 2A, suitable for CTI application
Platform Overview
About this series
| ORION-300DX/48 | 300W -48V DC input DC/DC PS/2 ATX power supply |
| ORION-300DX/24 | 300W 24V DC input DC/DC PS/2 ATX power supply |
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | -40V ~ -72V DC for ORION-300DX/48 |
|---|---|
| Input Current | 10A@-48V, 20A@24V DC input |
| Efficiency | > 65% |
| Holdup Time | 16 ms |
| Over Voltage Protection | +5V: 5.7 ~ 7.0V |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | UL, TUV, CSA |
| Temperature/ Humidity | Operating: 0oC ~ 40oC, 10% ~ 90%RH Storage: -60oC ~ 70oC, 5% ~ 95%RH |
| Dimension (WxDxH) | 150 x140 x 86 mm; 5.9” x 5.5” x 3.4” |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ORION-300DX-48 | Datasheet | 448.57 KB | download – ORION-300DX-48 | Datasheet |
